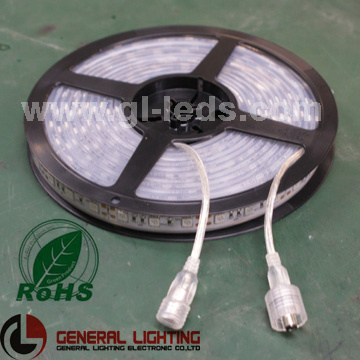

Waterproof SMD RGB Flexible LED Strip Light
Intelligent RGB Light strip
GL-FB-RGB Series
GL(TM)Intelligent light GL-FB-RGB LED strip is one of new product upgraded base on RGB regular change mode. A unique design, in addition to traditional RGB light effect of the changes, GL-FB-RGB increase in a unique digital control system that can reach changes like display, while the costs are much lower than the display.
LED strips(GL-FB-RGB) widely used in households, hotels, shopping malls for decorative lighting. Waterproofing products can be carried out for outdoor use, to meet the different environmental needs.
Features of flexible LED strip:
1. With our micro-computer processor control system, the light strip can be designed according to personal preference DIY changes in its effects, to overcome the traditional RGB light effect of changes in a single, inflexible results.
2. Provided with the control system can constitute an intelligent lighting control system, it can be stand-alone operation, multi-machine operation, can also be connected via Ethernet to facilitate large-scale use;
3. To make Animation Effects with enough reels of intelligent LED RGB strips;
4. With separate SD card interface, to achieve automatic lighting control file playback, to achieve the desired result
5.150 PCS LED/Rell(5M);
6. Input voltage DC 12V, MAX power 36W;
7. Can be cut by every 3 LEDs and connect again with our accessories
8. PCB Size: L 5M X W 12MM;
9. Can be change into waterproof with type A and type B
Application of Flex LED strip:
1. Accessorial lighting for stairway and construction lighting
2. Backlight for single letter
3. Channel letter lighting
Note of flexible LED strip light:
1. Before use, first check the power supply used in compliance with GL-CB-RGB light of the power requirements;
2. Each roll ask for independent power supply; Not to use of multi-volume series use.
Other:
General Lighting Electronic Co., Ltd. All rights reserved. No part of this photo may be reproduced, in any form or by any means, without permission in writing from General Lighting Electronic Co. Ltd
|
Part No |
Color |
LED Q'ty |
Size(MM) |
LED Type |
Color temperature |
Certificates |
Flux(±5%) |
Max Power |
|
GL-FB-RGB-N150F24WA1 |
RGB |
150PCS |
5000X10 |
TOP
SMD
5050
LED |
3500-7000K |
CE, RoHS |
574.55lm |
36W |
|
GL-FB-PW-N150F18WA1 |
Pure White |
150PCS |
5000X10 |
6000-7000K |
CE, RoHS |
2697lm |
36W |
|
GL-FB-WW-N150F18WA1 |
Warm White |
150PCS |
5000X10 |
3000-3500K |
CE, RoHS |
2027lm |
36W |
|
GL-FB-R-N150F18WA1 |
Red |
150PCS |
5000X10 |
620-625nm |
CE, RoHS |
681lm |
36W |
|
GL-FB-G-N150F18WA1 |
Greed |
150PCS |
5000X10 |
520-525nm |
CE, RoHS |
1785lm |
36W |
|
GL-FB-B-N150F18WA1 |
Blue |
150PCS |
5000X10 |
465-470nm |
CE, RoHS |
550lm |
36W |
|
GL-FB-Y-N150F18WA1 |
Yellow |
150PCS |
5000X10 |
585-590nm |
CE, RoHS |
735lm |
36W |
The data above is under the test condition of Ta =25 degree, DC 12V, RH 85%
Parameter of 300pcs led strip light :
|
Part No |
Color |
LED Q'ty |
LED Type |
Size(MM) |
Certificate |
Color temperature |
Flux(±5%) |
lifetime |
Max Power |
|
GL-FB-RGB-N300F20WA1 |
RGB |
300PCS |
TOP
SMD
5050
LED |
5000X12 |
CE, RoHS |
1141.26lm |
1141.26lm |
50.000h |
72W |
|
GL-FB-PW-N300F22WA1 |
Pure White |
300PCS |
5000X12 |
CE, RoHS |
6000-7000K |
5394lm |
50.000h |
72W |
|
GL-FB-WW-N300F22WA1 |
Warm White |
300PCS |
5000X12 |
CE, RoHS |
3000-3500K |
4054.5lm |
50.000h |
72W |
|
GL-FB-R-N300F22WA1 |
Red |
300PCS |
5000X12 |
CE, RoHS |
620-625nm |
1362lm |
50.000h |
72W |
|
GL-FB-G-N300F22WA1 |
Greed |
300PCS |
5000X12 |
CE, RoHS |
520-525nm |
3570lm |
50.000h |
72W |
|
GL-FB-B-N300F22WA1 |
Blue |
300PCS |
5000X12 |
CE, RoHS |
465-470nm |
1101lm |
50.000h |
72W |
|
GL-FB-Y-N300F22WA1 |
Yellow |
300PCS |
5000X12 |
CE, RoHS |
585-590nm |
1470lm |
50.000h |
72W |
