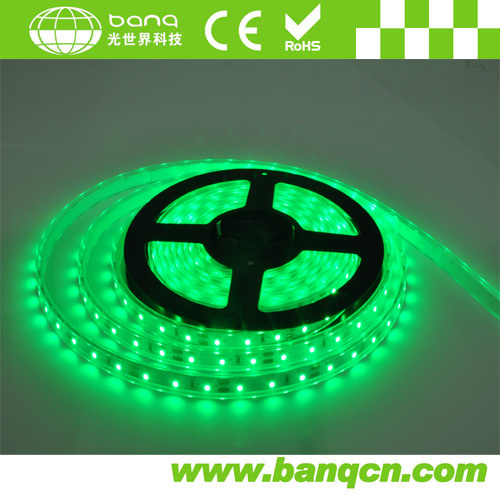

Waterproof LED strip light (3528 LEDs/5M/Reel, 120 LEDs per Meter)
Working Voltage: DC12V
LED qty: 120LED/M, 600LED/Reel
Small order can accept
We offer various kinds of LED strip Light, such as:
Flexible LED Strip Light,
Rigid LED Strip Light,
Waterproof IP 65 LED Strip Light, (5050/3528 Waterproof dripping epoxy Glue flexible LED strip)
Waterproof IP67 LED Strip Light (5050/3528 Waterproof silicone tube and epoxy filled flexible LED strip)
Waterproof IP68 LED Strip Light (5050/3528 Crystal tube and epoxy filled LED Strip)
3528 150LEDs/Reel LED Strip Light,
3528 300LEDs/Reel LED Strip Light,
3528 600LEDs/Reel LED Strip Light,
5050 300LEDs/Reel LED Strip Light,
5050 240LEDs/Reel LED Strip Light,
5050 150LEDs/Reel LED Strip Light
Item No
1) STB1-120W-12 (3528 Non-waterproof LED strip, 120 LEDs / Meter, DC12V, L5000*W8mm)
2) STB3-120W-12 (3528 Waterproof silicone tube and epoxy filled flexible LED strip, 120 LEDs/ Meter, DC12V, IP67, L5000*W8mm)
3) STB2-120W-12 (3528 Dripping epoxy glue LED Strip, 120 LEDs/ Meter, DC12V, IP65, L5000*W8mm)
4)STB43-120W-12 (3528 Crystal tube LED Strip, 120 LEDs/ Meter, DC12V, IP67, L5000*W8mm)
Features:
1) Each unit of 3 LEDs can be cut at regular segments without damaging the rest.
2) The back of the strip with 3M double side adhesive tape. It can be installed easier.
3) Long life span: 50, 000 hours.
4) Color: Various colors including single color-----Red/Yellow/Green/Blue/Cold White/Warm White /RGB, Colors moving
5) Dimension: L5000*W8mm
6) IP rating: IP65/ IP67/IP68. Both non-waterproof and waterproof are available
7) Sealed Method: Silica gel tube + dripping epoxy glue (clear strip light, silicone ture or crystal strip light can be offered )
8) 5meter/reel for standard length, different length available, 3 LEDs cuttable
9) Solid-state, high shock / vibration resistant
10) Beam angle: 120 degrees
11) Voltage: 12V/24V DC
12) Color of PCB: White, brown, black are available
13) Maintenance free, easy installation
14) Long life 100, 000+ hrs (10+ years). White LEDs, 50, 000+ hrs
15) Safety Standard: RoHS, CE approvard
16) No UV radiation & RF interference, no flickering
17) Instant soft start, Operation Trmperature -40~60 degree C
Packing Detail:
(1)5 meters/reel as an unit wrapped around a disk, specifications of the disks are 8MM (40G), 10MM (75G) and 12MM (100G) respectively, and each disk is packed by anti-static bag.
(2)We have two regular sizes of the cartons: One is 28*28*28cm, in which 30 reels non-waterproof LED strips are packed and the weight of the carton is 0.5 kg; The other is medium carton, weighed 0.85kg, 80 reels non-waterproof or 60 reels waterproof strips can be packed in.
(3)Package also depends on your requirements
Application:
1) Architectural decorative lighting
2) Accent lighting
3) Border/contour lighting
4) Emergency & security lighting
5) Auditorium walkway lighting
6) Stairway, step lighting
7) Rounting, marking
8) Backlighting for signage letters
9) Pool and SPA environment
10) Cove lighting
11) Construction and Architectural decorative lighting
12) Concealed lighting
Item |
Mark |
Amt |
Unit |
Current |
IF |
1.5 |
A |
Power |
W |
18 |
W |
Working Temperature
|
TOPR |
-25---60 |
°C |
Voltage |
VOLT |
DC12/24V |
V |
Red wave length |
NM |
625-630 |
NM |
Blue wave length |
NM |
465-470 |
NM |
Green wave length |
NM |
521-530 |
NM |
Orange wave length |
NM |
600-610 |
NM |
Yellow wave length |
NM |
588-596 |
NM |
R/Y/O chip voltage |
Vf |
1 . 8-2 . 0 |
V |
W/B/G chip voltage |
Vf |
3 . 0-3 . 4 |
V |
IP rate |
IP |
IP20 |
IP |
Board |
material |
0.15 FPC |
mm |
LED s qty |
Qty |
300 |
PCS |
Life span |
HOUR |
25000 |
HOUR |
Weight |
M |
110 |
g |
|
Shenzhen Banq Technology Co., Ltd., is a professional LED manufacturer with strong capability in R&D, Production, Marketing and customer service. we have a variety of products, which can be classified in two catagories:
First is LED general illumination lights which including LED bulb, LED tube, LED strip/Ribbon, LED spotlight, LED down light, LED SMD spotlight, Auto light, wall washer, as well as LED module. Second is indicating LED for different applications which including high/low power LED series. super flux LED (Piranha) series, SMD LED series, and super-bright through-hole LED series. Our products are widely used in General Illumination Industry, Auto Industry, Electronic Display Industry and signal Electronic iIndustry etc.
Established in 2002, with a total area of 16000 square meters, BANQ has about 1000 well-trained employees. With our dedicated staffs and rich experience in LED field, we can quickly respond to customer needs, providing customized products and services to help customers succeed. At present, we export 90% of our prodcuts Europe, North America, and some other countries.
"Quality First, Customer Paramount, Service Uppermost! " is our principles. In order to make the life of modern people more wonderful, BANQ is willing to form a close ally with customers through our superior LED products, excellent and value-added service.
