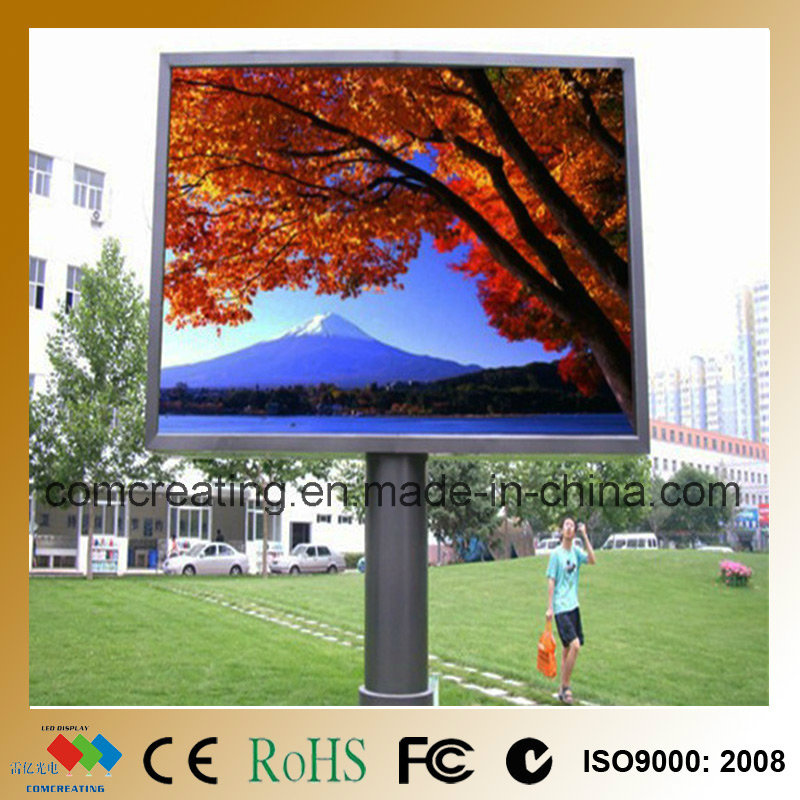

Waterproof HD smd Full Color LED Display Outdoor P6
1. CE,FCC,RoHS,C-Tick approved
2. High brightness: >7000nits, High refresh
3. Superior uniformity, Good display effect
4. 2 years warranty, best after-sales service
5.Video, flash, animation, graphic, text available;
6.Installation structure drawing offered FOC;
7.Factory visiting and inspecting is welcome;
8.OEM service offered;
9.Models available:
Indoor led display-P4mm, P5mm, P6mm, P7.625mm, P8mm, P10mm, P12mm, etc.
Outdoor led display-P10mm, P12mm, P16mm, P20mm, P25mm, P31.25mm, etc.
| LED Specification |
| 1 | LED Chip Brand | Red: Opto / Epistar
Green & Yellow: Silan |
| 2 | Wave Length (nm) | R: 625nm;
G: 525nm;
B: 470nm |
| 3 | Pixel Configuration | 1R1G1B |
| Module & Cabinet Specification |
| 4 | Physics Distance Between Pixels | 6 mm |
| 5 | Physics Pixel Density | 27, 777 Pixel/m² |
| 6 | Module Dimensions (W x H) | 192mmX96mm |
| 7 | Physics Pixel / Module | 32 x 16 = 512 |
| 8 | Cabinet Dimensions ( W x H xT) | 960mm X 960mm X 160mm |
| 9 | Physics Pixel / Cabinet | 160 x 160 = 25600 |
| 10 | Cabinet Weight | 42 kg |
| 11 | Cabinet Material | Steel Cabinet / Aluminum Cabinet |
| 12 | Cabinet Frame | Standard Frame
Simple Frame (without backdoor)
Lifting Frame (specially for rental use) |
| Screen Specification |
| 13 | Brightness | >6000 cd/m² |
| 14 | Viewing Distance (min, max) | >6m |
| 15 | Power Consumption / Screen | MAX : 1300 w/m² ;
Average: 260 w/m² ; |
| 16 | Drive Mode | 1/4 scan, constant current driving |
| 17 | Refresh Rate | 300 HZ |
| 18 | Frame Rate | 60HZ |
| 19 | Display Flatness | 0.5mm |
| 20 | Maintenance | Back maintenance, replace the module |
| 21 | Led Life Span | 100, 000 hours |
| 22 | Supply Voltage | AC220V/50HZ, ± 10%;
AC110V/60HZ, ± 10% |
| 23 | Operating Temperature | -20º C~+50º C |
| 24 | Operating Humidity | 10%-90% |
| 25 | Storage Temperature | -40º C~+60º C |
| 26 | Viewing Angle | Horizontal: 120° ; Vertical: 65° |
| 27 | Grey Scale | Red, green, blue each 16k |
| 28 | Display Colors | 4096 Billion |
| 29 | IP Rating | IP65 water proof, dust proof |
| 30 | Aging Time in Factory | More than 72 hours constantly |
| Control |
| 31 | The Software | LED Studio |
| 32 | System Supported | Win 98 / 2000 / 2003 / XP / WIN7 |
| 33 | Control Mode | Real Time Control (Synchronous) |
| 34 | Display Capability | Flash, Video, Graphic, Text |
| 35 | Signal Supported | RGB, VGA, DVI, etc. |
Product Features:
High flexibility:
Our company has made researches on various outdoor circumstances, and applied the research achievements to design systems, so as to obviously improve both the flexibility and reliability of our products in various bad circumstances outdoors.
Rich colors:
with three basic colors (red, green and blue) to form the unit boxes, 256-level gradation of red, green and blue form 16777216 kinds of colors, making the electronic displays showing rich colors, high saturation, and high resolution, and also enabling them to show high frequency dynamic images.
High brightness:
The products adopt super-high brightness LED, so that you can see clearly from a long distance even in strong sunshine.
Good effect:
The products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.
High reliability:
The products adopt the static scanning technology and the module design technology to offer higher reliability and stability.
Diversified display modes:
The products support multiple display modes.
Easy operation:
The products adopt popular video playing software to facilitate system operations.
Available range:
Government plazas, recreational plazas, large-scale entertainment plazas, busy business and commercial centers, ad information boards, commercial streets, and railway stations etc..
Pre-sales support
1. We offered technical advice to our customers before buying our products.
2. Help customers to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our customer's specific usage.
After- sales service
1. We promise our customers more than just two years warranty service! We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.
2. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
3. We offered training to our customer who includes operating and maintenance of our products.
Shenzhen Comcreating Co., Ltd is a professional enterprise engaged in the LED display system research, productionn, sale and service. Our main products include outdoor / indoor LED Display. More than 200 employees work in our company. 50 sets of advanced equipments including lastest automatic optic-electronic test system are furnished in product line. The output is more than 1000 sq. M/month.
Due to our highly skilled R&D staff and the newest technology, all of our products enjoying world-wide reputation for their precise quality, competitive price and the best service guarantee. OEMs/ODMs are welcomed.
Comcreating has provided more than 3000 LED display for over 86 countries and districts. We have builded a mutually beneficail relationship with our customers. In the coming days, we will be more strictly urge our team to offer you LED display with excellent quality, competitive price and better service. Wish we can work together with you to create a win-win relationship!
