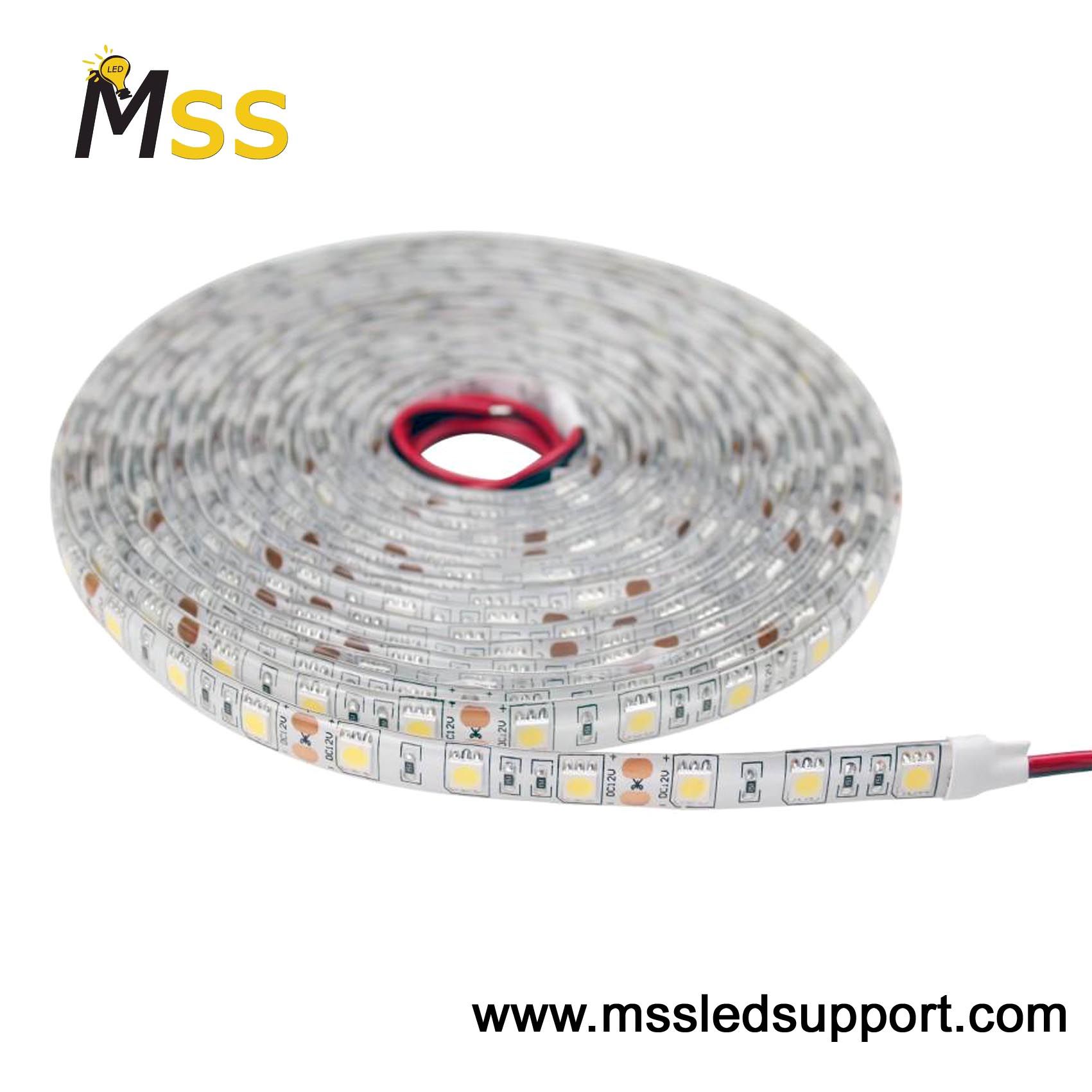

LED Flexible LED Strip/LED Strip Light
Article NO.: MSS-F150-W5050W/M/R/G/B/RGB-IP64 Waterproof strip
Feature
The thickness of the wires should be adopted based on the possible maximum current, length of wires(10m in maximum is recommended)and the loss in the wires during transit at low voltage
Two ends of connection should be done as waterproof
No touch in static, no work in electricity
The maximum length is 5m, no exceeding in connection
Quality power supply is recommended(with short circuit protection, high voltage and power load protection)
It can be cut at the mark of the connection and there will be no affect to its function
Application
Architectural decorative lighting
Archway, canopy and bridge edge lighting
Amusement park, theater and aircraft cabin mood lighting
Emergency hallway lighting
Auditorium walkway lighting
Stairway accent lighting
Concealed lighting
Backlighting for signage letters
Channel letter lighting
Emergency exit path lighting
Cove lighting.
|
Specification |
|
LED type |
5050 SMD LED |
|
Available colors |
W/M/R/G/B/Y |
|
Viewing angle(θ) |
120° |
|
Luminous flux(lm) |
|
R G B Y WW W CW |
|
525 900 525 525 1500 1500 1500 |
|
Wavelength (nm/K) |
|
R G B Y W WW CW |
|
619-635 512-528 463-475 584-595 2700-3000 5500-6500 8000-11000 |
|
LED qty/5m |
150pcs |
|
Life span |
50000h |
|
Electric parameter |
|
Working voltage(V) |
DC12V |
|
Power consumption(W) |
36W |
|
Driving method |
Constant voltage |
|
Wires&series connection length |
|
Wires Input end connect two-core red and black wire,Red:+;Black:- |
|
Stand length in serial connection |
5m |
|
Maximum length in serial connection |
≤5m |
|
Outer Parameter |
|
Shell |
Epoxy resin |
|
Color |
Amber & white |
|
Dimension |
5000*10*4mm |
|
Fixed mode |
|
Screw |
/ |
|
Double-side adhesive |
5000*10mm,3M double-sided adhesive |
|
Environment Parameter |
|
Working Temperature |
-40- +50Celsius degree |
|
Storage Temperature |
-50- +60Celsius degree |
|
IP grade |
IP64 |
MSS LED LIGHTING CO. Ltd was founded since 2006, which regularly improves the products held and expands into other markets, The network of distribution partners has been developed in 15 countries - what ensures a production scale economy, whereas MSS have a big warehouse optimizes the goods logistics and ensures a proposal of more competitive conditions.
Upon our 6 years working experience on LED lights produce management, marketing and after sales support, we can offer you very professional and prompt service, with very good price, qualified LED light, fast lead time, and the latest new tech LED lights. Especially in LED Strips, LED Module for Sign, LED Tube Light T8, LED Panel Lamp, replacement LED Bulbs etc. Believing in the quality of our products we can, as one of the few, even offer you a 5 years manufacturer warranty. MSS driven by two simple principles: Employ the latest technologies to develop quality lighting products and take really good care of the customers, all our staff continues to deliver on those principles.
The R&D Team we have put together have a wealth of experience in the LED lighting industry and will continue to come up with innovative products and use for LED lighting. Ninety percent of our staff hold university degree or better. Every aspect of the production process is monitored by the latest and best computer software. The use of ERP and QA management software ensures every aspect is correct and meets the highest standards throughout production. Our ability to maintain these standards has resulted in 80% in our production being exported to Europe, North America and Australia with an ever-going local market. Our company with 5PCS SMT is constantly updating production machinery and processes to ensure we remain competitive in the market place. Producing the best product as economically as possible is our mission. The output of the module is 2 million PCS per month, and it will be increased to 5 million PCS in June. The capacity of the LED Strip is 300 thousand meters per month, with prompt delivery time without delay, and store products are always available.
Long-term cooperation with our customers, team work and cooperation is very important to us. We want to be a reliable partner and believe in the value created by lasting relations with the client. Customers from all over are welcome. Contact US today for LED solutions!
