Product distription

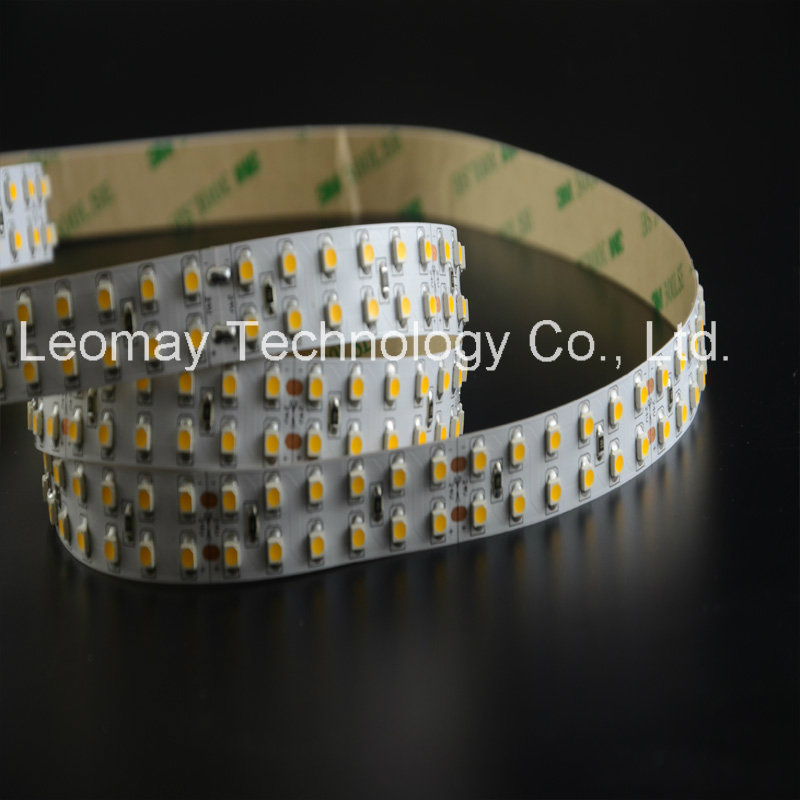

3528-240 double row flex Non-waterproof led strip lights
Specification
LED Type: Super bright 3528-240 double row SMD LED (Non-Waterproof)
Light Color: White/Warm White/Red/Yellow/Green/Blue
LED Quantity: 240LEDs/meter,
Strip Dimension: 5000mm (L) X15mm (W)
Length: 5 meters (16.4ft) / reel
Beam Angle: 120°
Working Input Voltage: DC24V
Working Temperature: -25° C ~ 55° C
FPC Color: White
Drive Mode: Constant voltage
Features
Super brightness, high intensity and reliability.
Low power consumption.
Long life span over 50, 000 hours.
Fast and simple installation with adhesive back tape
Low maintenance.
Real 3M adhesive tape
IP Rate: IP20
Application
Widely used for Exterior & Interior decorations such as home, hotel, clubs, shopping malls, bars etc...
Widely used for automobile and bicycle decoration, border or contour lighting etc...
Popularly applied in backlighting, concealed lighting, channel letter lighting, advertisement sign lighting and emergency lighting etc.
Decorative lights for party, event, shows, exhibitions etc...
Model | LED QTY | Volt | Power | Lumen/m | CRI | PCB Width | IP Rate | Color |
LM3528-WN30 | 30leds/m | 12V-24V | 2.4w/m | 180lm/m | 80 | 8mm | IP20/65/67/68 | W/WW/R/Y/G/B |
LM3528-WN60 | 60leds/m | 12V-24V | 4.8w/m | 360lm/m | 80 | 8mm | IP20/65/67/68 | W/WW/R/Y/G/B |
LM3528-WN60-RGB | 60leds/m | 12V | 4.8w/m | 360lm/m | 80 | 8mm | IP20/65/67/68 | RGB |
LM3528-WN96 | 96leds/m | 12V | 7.68w/m | 576lm/m | 80 | 8mm | IP20/65/67/68 | W/WW/R/Y/G/B |
LM3528-WN120 | 120leds/m | 12V-24V | 9.6w/m | 720lm/m | 80 | 8mm | IP20/65/67/68 | W/WW/R/Y/G/B |
LM3528-WN240 Single Row | 240leds/m | 24V | 19.2w/m | 1440lm/m | 80 | 10mm | IP20 | W/WW/R/Y/G/B |
LM3528-WN240 Double Row | 240leds/m | 24V | 19.2w/m | 1440lm/m | 80 | 10mm | IP20/65 | W/WW/R/Y/G/B |
