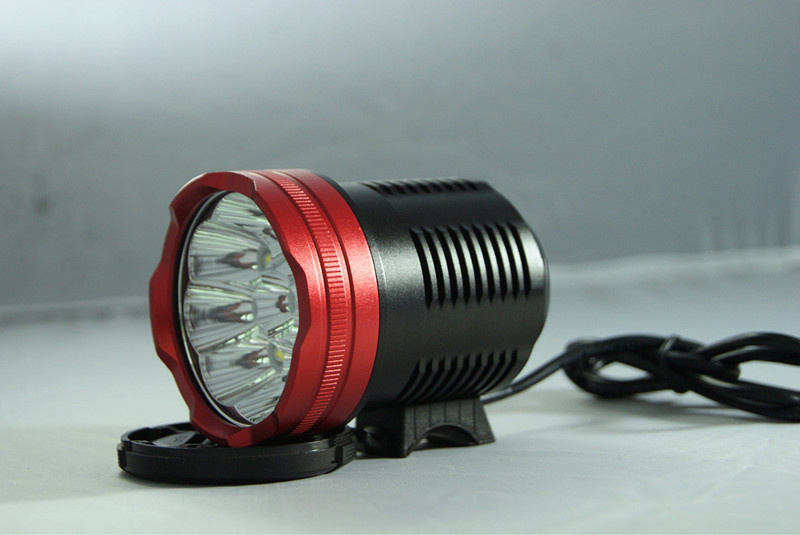

Waterproof 2800lumen High-Bright LED Bicycle Light with Charger
Functions:
-1, Bicycle Light:Can be mounted in the bicycle frame and be used as a bicycle light.
-2, Head lamp:Can be free assembly with head band or helmet and be used as a headlamp for outdoor sport, working & outside recreation.
-3, Fishing Lamp:Professional glare lighting available for climbing, fishing, camping, prospecting, expedition.
Features:
-1, Precision CNC processing with aviation aluminum, light weight, high strength, good wear resistance and longer service life.
-2, Using famous original Cree (USA) led chips, provides equal and stable brightness with excellent life.
-3, Real high brilliance with CREE XML-3XT6 LED, 2800 lumens with aluminum housing and reflector cup, long distance irradiation, high efficient luminance.
-4, The Standard 18650 Li-ion battery pack with digital protection board, rechargeable and recyclable, more portable and more safer.
-5, Constant voltage digital circuits design for balanced brilliance without any loss of luminance.
-6, The lighting direction is adjustable, multi-purpose design for cycling, climbing, fishing, camping, prospecting, expedition, down-hole operations.
-7, Have residual quantity indicator function, which can real-time display the remaining battery power.
-8, High bright, low bright, strobe, various lighting mode for different working environment.
-9, IP65 waterproof and dustproof performance, suitable for many harsh environment.
-10, Simple structure, easy installation for bicycle using and headlamp using.
-11, All products have been certified by CE, Rohs & FCC.
-Production specification
1.Application:night ride/outdoor lighting/camping etc,used in Electric vehicle/bicycle light headlamp
2.Use 3 CREE XML-T6 LED,color temp 6500k,pure white,maximum 2800lumen
3.Power source:4*18650battery group,2 series connection 2 parallel connection design,highlight 2800lumen,2hours lighting time,low lighting 1000lumen 4hours
4.Charger:temp protection,over charging protection and short circuit protection. Fast charging within 4.5hours. Stop charging automatically and indicate the green light when finish charging
5.5.5mm diameter connecting link,durable and stable with waterproof
6.Luminous colloidal particles in tail,the tail will turn into green when connecting power source for the convenience at night usage
7.Waterproof:IP-65, safe raining ride
8.2 specification strong quality plastic ring(all handlebar diameter including),apply in all the bicycle light,easy to use
-Attention:
1.in case of dangerous,Do not tear down the battery group without authorization
2.integrated circuit chip is head part, the bulb seal in integrated circuit plate.The headlamp had been checked anti-aging strictly when delivery for safe usage.please do not take it part without authorization
3.In case of the damage of the battery or lamp head,Don't open the highlight mode for long-time
4.The battery will run out the electric quantity when long term unused.please charge the battery monthly for ensure the lifetime of battery
5.Please unplug the power cord when unused. The battery quantity will be ran out and being damaged when it connect to the headlight for long time.
6.When the battery quantity becoming low,The headlight shut down automatically and show the red indicating light for self-protection,please do not open the light in this case.
Technical Specifications:
Packing Information:
-Packing Material:Colorful Paper Box
-Box Size:175mm * 160mm * 55mm
-Weight:460 g
| LED Brand: | T6-S14 |
| LED Model: | XML-3XT6 |
| power rating: | 30W |
| Reflector Cup: | Aluminum cup |
| Reflector Feature: | Prefocus |
| Mode: | High > Low > Strobe |
| Luminous Flux(Theory): | 2800 LM |
| Working Voltage: | 8.4 V |
| Working Current: | 3.8 A |
| lighting hour: | 10,0000hours |
| Color Temper: | 7000K White |
| Waterproof: | IP65 |
| charging time | 6hours |
| Battery | 4*18650 |
| life of battery | >500 cycle times |
| Lighting Distance: | 200 ~ 250 Meters |
| Lighting Run Time: | 2.5 ~ 4.5 Hours |
| Recharging Input: | AC 100~240V |
| Recharging Output: | DC 8.4V / 1.0A |
Using Notice:
-Different battery capacity need different charge time, please refer to the operation for actual data.
-When using Dark Knight, the LED chip generates enormous amounts of thermal energy and the shell can get hot, please use with care and prevent burns.
-Prevent direct lighting precision lighting equipment or lens. For cleaning reflector cup or lenses, please use dry cotton cloth.
-Don't Take apart by yourself to avoid any harm. The manufacturers disclaim all responsibility for the damage caused by misuse.
-Suggest pull the plug of adapter as soon as charging finished ( charging indicator change to green). Avoid over charging or over discharging.
-Please keep the product is charged once 3~4 months if you do not use for a long time.
-Do not immerse the lamp in the water for a long time.
-If any failure occurred during transit, please ensure battery has enough power and rechargeable, ensure connect securely
-Please don't shot the eyes directly, it would effect the eyesight or may cause permanent loss of eyesight.
-Children must use under the guidance of parents.
