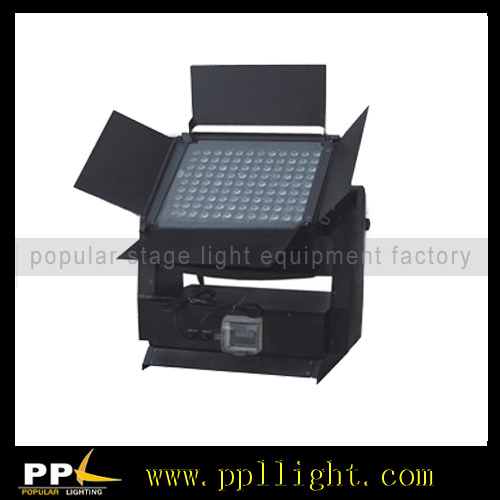

156*3W LED CITY COLOR WATERPROOF
TECHNICAL PARAMETRIC:
Voltage: AC90V-245V/50-60Hz
Power: 480W/360W/600W
Lamp: 156*3W (R39, G39, B39, W39)
120*3W/5W (R30, G30, B30, W30)
Beam angle: 25 ° /30 ° /45 ° /60 °
Life time: >100 thousand hours
Dimmer: 0-100%
Control: DMX512, Master-slave, stand-alone, music Activate
Channel: 7CH/4CH
Housing Color: Black
IP rating: Outdoor, Waterproof, IP65
G. W.: 45KG
Packaging: 790*630*830mm (6PCS/CTN)
Using at most 156PCS of 1W/3W & 120*5W, which makes the effect impressed in brightness and distance. It is new generation green high technology product. It projects long distance, wide angle, and abundant colors. It brings people new vision sense, which makes people feel they are in a changeable color world.
The nice design is good for dispelling heat very well and long life. Project angle can be adjusted randomly. The base is with holes, which are facility for orientation and fitting.
It is widely used in stage show, casino, advertisement, outside wall of mansion etc. It is
Controlled by DMX Controller; The effect can be gradual change, jump change, color glitter, random change, and alternate gradual change and so on. Perfect cast light beam provides architecture designers and light designers abundant imagine space.
| Model | LED-CW204 |
|
| Housing Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Housing Color | Black | Black | Black | Black | Black |
| Aperture Cover | PMMA | PMMA | PMMA | PMMA | PMMA |
| Operating voltage | 90-130V AC / 176-254V AC | 90-130V AC / 176-254V AC | 90-130V AC / 176-254V AC | 90-130V AC / 176-254V AC | 90-130V AC / 176-254V AC |
| Power | Switch Power Supply | Switch Power Supply | Switch Power Supply | Switch Power Supply | Switch Power Supply |
| LED current | 700mA | 700mA | 700mA | 330mA | 700mA |
| Control Modes | Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
| DMX Channel | 6CH/3CH | 6CH/3CH | 6CH/3CH | 6CH/3CH | 6CH/3CH |
| Control panel | Digital 4 characters alphanumeric | Digital 4 characters alphanumeric | Digital 4 characters alphanumeric | Digital 4 characters alphanumeric | Digital 4 characters alphanumeric |
| Connector | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) |
| NO.of LED | 120*3W LEDS (30R/ 30B/ 30G/30W) | 120*5W LEDS (30R/ 30B/ 30G/30W) | 120*3in1 3W LEDS | 156*1W LEDS (39R/ 39B/ 39G/39W) | 156*3W LEDS (39R/ 39B/ 39G/39W) |
| LED Life Time | 80000-100,000 hours | 80000-100,000 hours | 80000-100,000 hours | 80000-100,000 hours | 80000-100,000 hours |
| Beam Angle | 25°/30°/45°/60° | 25°/30°/45°/60° | 25°/30°/45°/60° | 25°/30°/45°/60° | 25°/30°/45°/60° |
| Power Consumption | 420W | 600W | 420W | 180W | 500W |
| Light Projecting Distance | 20-250M | 20-400M | 20-250M | 20-200M | 20-350M |
| IP Rating | Indoor/ Outdoor, IP 44 | Indoor/ Outdoor, IP 44 | Indoor/ Outdoor, IP 44 | Indoor/ Outdoor, IP 44 | Indoor/ Outdoor, IP 44 |
| Operating Temperature | 20ºC-+45ºC | 20ºC-+45ºC | 20ºC-+45ºC | 20ºC-+45ºC | 20ºC-+45ºC |
| Compatibility: |
| 1. Color Range: 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) |
| 2. Dimming 0-100%with regulated constant color control |
| 3.Strobe: 10 Flashed per second (any color) |
| 4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable, and save function |
| 5. 6channel Mode and 3channel Mode would change each other in every light |
| 6. 6CH Mode DMX Value | CH 1 _ General dimmer (1-255, from dart to light) |
| CH 2_ Red (1-255, Dimmer, from dart to light) |
| CH 3 _ Green (1-255, Dimmer, from dart to light) |
| CH 4_Blue (1-255, Dimmer, from dart to light) |
| CH 5_ White (1-255, Dimmer, from dart to light) |
| CH 6_ Strobe & Color change/ color gradual change open |
| CH 7 _Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast) |
| 7. 3CH Mode DMX Value | CH 1_ Red (1-255, Dimmer, from dart to light) |
| CH 2 _ Green (1-255, Dimmer, from dart to light) |
| CH 3_Blue (1-255, Dimmer, from dart to light) |
| CH 4_White (1-255, Dimmer, from dart to light) |
| 8. Control modes | 0: sound activity mode |
| 1. DMX control mode |
| 2. Adjusting the color manual |
| 3. Adjusting the brightness manual |
| 4. Adjusting the strobe manual |
| 5. Adjusting the strobe speed manual |
| 6. Master-slave control mode, as the master |
| 7. Sound activity synchronization mode |
| 8.Adjusting color's gradual change manual |
| 9. Adjusting gradual change's speed. |
Trade terms:
| Price Term | exw price |
| Payment terms | T/T,Paypal,Western union |
| Shipping Way | 1.By express(DHL,Fedex,Ups,EMS) |
| 2.By air |
| 3.By sea |
| Sample time | 1-3 workdays |
| Production time | general 5-10 days,depend on your order quantity |
| Packing | 1.Standard Carton |
| 2.Flight case |
| Warranty | 1 years |
| After-Sell server | 1.If there is some problems with the product,please describe it and sent thenecessary picture or video to us for analyzing. |
| 2.Then we will guide you how to fix it and provide free accessories if needed. |
3.1year quality guarantee at least, and we will provide free parts for replacement if any problem belong to us during the period(Delivery cost paid by customer);1 year later, we can provide spare parts for replacement based on certain charge.
|
