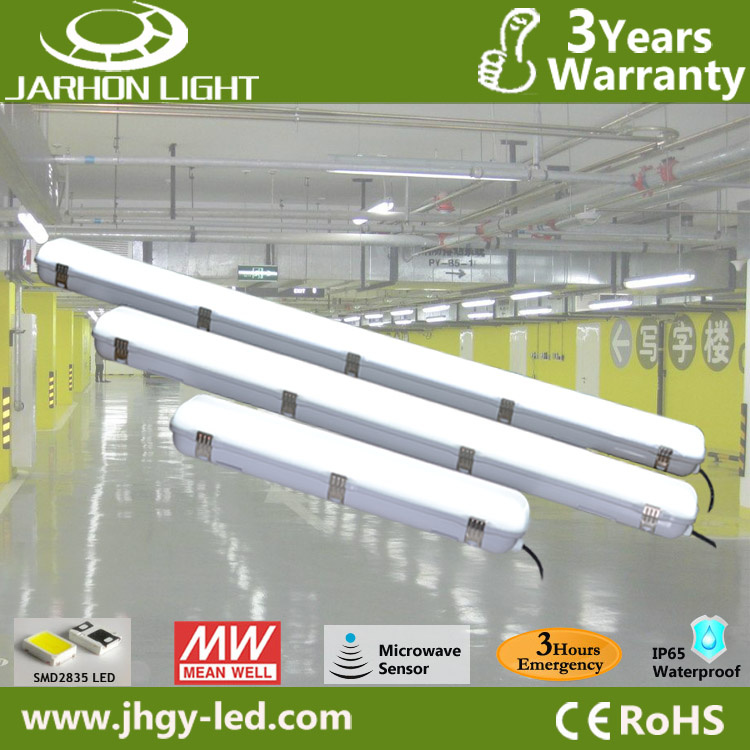

Waterproof 1200mm Frosted LED Lighting Fixture 50W Ceiling Light

Waterproof 1200mm Frosted LED Lighting Fixture 50W ceiling light


Description:
An LED Tri-proof IP65 batten product with LEDs on the aluminum PCB Board. Its appearance and structure is the same as standard twin fluorescent fittings but instead of tubes, there are pretty look arrays of LEDs in the fitting and a isolated driver inside. All the fitting options are as you would expect and familiar to an electrician. A simple, functional, inexpensive way to adopt LED lighting and benefit from energy saving over 70% and maintenance free for years.

Technical Specification:
1. Size: 600mm 1200mm 1500mm available
2. Wattage: 20W 30W 40W 50W 60W optional
3. Functions: Microwave sensor, emergency function is optional.
3. Carton dimension: 71*43*22cm, 131*22*29cm, 161*22*29cm.
4. Color Temperature: WW(3000-3500K), PW(4000-4500K), CW(6000K-6500K) is optional.
4. Material: PC housing +PC cover + metal plate
5. Beam angle: 120degree
6. Luminous efficiency: 85-95LM/W
7. Power factor: >0.95
8. Warranty: 3 years
9. Certification: CE RoHS


Feature:
1: Designed with constant current technology
2: Perfect structure design with aluminum base to disperse heat easily
3: The latest indoor illumination product with comprehensive application
4: Easy to install and low cost of maintenance
5: High lumen, high power, low degradation, low heat
6: We are LED factory and specilized in designing and developing the LED lamps
7: IP65 waterproof + dustproof+ Moisture-proof+anti corrosive+antiex plosion
8: High lumens output, low heat and function is more steadier.
9: Healthy beam, without ultraviolet radiation &infrared, no radicalization
10: Green lighting, without mercuty&Plumbum and other relative hazardous substance


Applications:
Car parks, public buildings, airports, military facilities, food processing facilities, factories, plant rooms, cold storage units and computer server rooms, Places where energy saving and high color rendering index lighting are needed.


Our service:
1.OEM or ODM is available
2.Sample can be delivered in 3days
3.Discounts are offered on order quantities
4.We welcome you to visit our showroom and factory
5.Your inquiry will be replied in 24hrs

Warranty terms:
A), Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/remake new components to replace based on the proof-documents;
B), If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid maintenance within warranty period

Why chose us?
A),Founded in 2003,Our factory have devoted itself in the LED lighting fixture developing and designing.Rich experienced in products manufacturing.
B),Due to our years of ODM/OEM experience in project lighting fixtures developing and selfability,We can provide high cost performance LED project lighting products for our dear customers.
C),Our mainly products in Smart LED project light,Can also provide customize services according to your requests to develop your suitable smart led lighting fixtures.
D),We are manufacture self-producing,self-marketing,We can help customer solve any kinds of technology problems and devoted ourself to provide more professional and efficient service to all our customers.


Specifications:

Model No.	LED Type	LED Qty	LED Current	LED Luminous		In Put	Out Put	Out Current	LED S/P	PF
JH-TP2F-20W-S1	SMD-2835	60	55-60 MA	60LM±5%		100-240VAC	36-40VDC	600MA	10/6	>0.9
JH-TP4F-40W-S1	SMD-2835	120	55-60 MA	60LM±5%		100-240VAC	36-40VDC	1200MA	10/12	>0.9
JH-TP5F-60W-S1	SMD-2835	200	55-60 MA	60LM±5%		100-240VAC	36-40VDC	1800MA	10/20	>0.9
LED chipset Brand:TAIWAN chipset					LED Luminous Efficiency:120LM/W ±5%
LED chipset Size:22*42 MIL					Lamp Luminous Efficiency:95LM/W ±5%
Color Temperature(CCT):3000K-6500K					PCB Material:1.0MM Aluminum PCB
Color Rendering Index(CRI):Ra>70  or  Ra>85					IP Rating:IP65   Frequency Range:50/60Hz    CE  RoHS
