Specifications
Outdoor advertising video led digital Billboard:
1.RoHS and CE,CCC,UL
2.Waterproof IP65
3.Super brightness.
4.Competitive price,high quality
Outdoor advertising video led display board

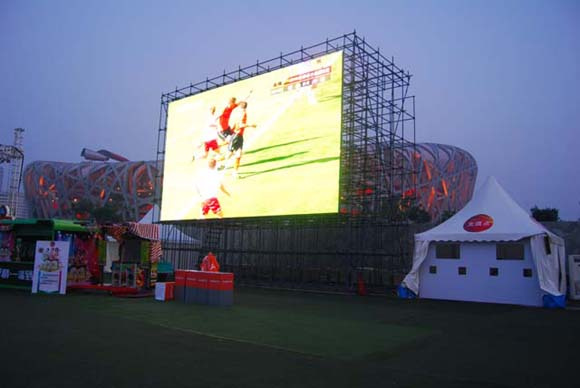

1.Applications: outdoor full color digital billboard are very popular in LED display advertising field. This type digital billboards are widely used Outdoor plaza,Outdoor building,stadium,shopping mall,cross road,highway, airport etc;
2.Features :
In LED display outdoor series,modular in each unit design is encased to maintain a highest level of water and dust proofing to IP65. The modular design of the LED display (outdoor) enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display (outdoor) series are applied to large public squares. sport centers arenas,urban traffic signage,car dealerships,casino signage,expressway information delivery systems,public service announcement displays,media,commercial promotion and other large scale applications.
<6000: 1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away
<8000 nits guarantees the screen stays brighter longer, providing 100,000 hours of continuous use
1) System structure
2)Led Module
Module Size(W * H) |
256mm*128mm |
Pixel Configeration |
2R,1G,1B |
Pixel Pitch |
16mm |
Resolution(W*H) |
16dots*8dots |
Pixel Density |
3906 dot / m2 |
Driving Method |
static Current |
3)Led cabinet
Cabinet Size(W * H) |
1024mm*768mm |
Module Qty |
20pcs |
Cabinet Resolution(W * H) |
64dots*48dots |
Cabinet Pixel |
4096 |
Weight |
50kg/pc |
Area |
1.23(m2) |
Avarage Power Consumption |
600W/m2 |
Max Consumption |
1000W/m2 |
4)Led Video wall technical parameter
Operating Humility |
10% ~ 90% RH |
Oprating Temprature |
-30°C ~ +60°C |
Optimal Viewing Distance |
10m-60m |
Display Color |
1,070,000,000 |
Gray Scale |
65536grade |
Brightness control |
256grade |
Frame Frequency |
60HZ |
Refresh Speed |
>3840HZ |
Power Supply |
220V/50HZ |
MTBF |
≥10,000hours |
Life Span (50% brightness) |
≥100,000hours |
Control Mode |
synchronization with PC |
Input Signal Format |
VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV |
Operating System |
WINDOWS(98,2000,XP,Vista) |
Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Package
Flight case and Fumigation-Free wooden case
Control System Connection
Competitive Advantage:
1. 2 years' warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
6, Small order accepted.
We design and manufacture several types of LED display, each of them meeting the demands of different markets and usage situations, whether they are outdoor or mobile advertising, indoor events, sports events or traffic signs.
We always do our best to satisfy all our customer's requests and wishes. We welcome challenging projects and any possibility to cooperate with our clients and help improve their business.
Shenzhen Melton Optoelectronics was established in 2011 with a registered capital of RMB 10, 000, 000. We are equipped with the most advanced automatic machines and well equipped devices for LED display production which can support our monthly production capability of up to 5000 sqm.
Here at Melton, we always focus on the improvement and innovation of our full color LED display quality. Our R&D staff occupies 14% of all the employees. With such a strong back up team, we are very confident that we can provide our clients with innovative and satisfying products. We have been continuously developing various new products to meet the market demands and we reached great performance in regards of our wireless LED traffic sign solutions. Our products not only match the clients' project application needs but are also produced according to the electronics criteria required by the European market. We have an EMC certification issued by a German TUV testing agency, European EN12966 certification and Northern American ETL certification, and other certifications such as: ISO 90012: 008, CCC, CE
