Product discription

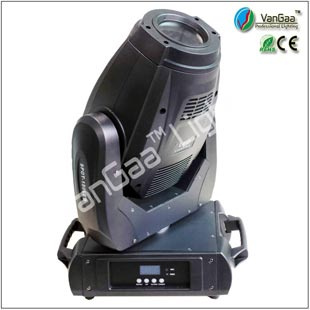

·For the high power LED Spot Light need for the stage performance, we have designed this 150W LED Moving Head Spot Light. Its brightness is very near the traditional 280W Moving Head Spot Light, it's powerful and wonderful. This is your best choice for the stage lighting performance.
Features
·The output of the 150W is equal to 280W lamp;
·Equipped LCD display, easy operate;
·Have the prism function and prism rotation function;
·DMX linear dimmer function;
·Built-in programs under the master and slave control mode;
·Pan and tilt revise the location automatically;
·0~100% linear dimmer, strobe speed adjustable.
All products have 1+4 Customer Service
Specifications
·Input voltage: AC100V-240V, 50/60Hz
·Power consumptions: 280W
·Light sources: Ultra bright 150W LED lamp
·2 Gobos wheels: Fixed gobo wheel & Rotating gobo wheel (7 inter changeable quick clip gobos+open)
·Color wheel: 8 main colors+ open with the rainbow effect
·International universal control signal: DMX512
·DMX channel: 17CH
·Digital display
·DMX, Sound, Auto, Slave/Master
·Focus: Electronic Focus
·Prism: 3 Face Rotating Prism
·Iris: Variable motorized iris(2-100%)
·soft/atomization effect:independent,0-100% linear regulator
·DMX Connectors: 3 pin XLR connector in and out
·Center beam angle: 16degree
·Program inside ,Adjustable flash frequency
·Body size: 407*272*554mm
·Carton board box package size: 440*440*510mm(1pc/carton)
·N.W/G.W: 16kg/18.5kg
One Year equipment warranty: the warranty period because of the quality of equipment warranty period.
Four Years beyond the warranty period: the maintenance, repair, continuous training, supply of the spare parts. Service charge: subject to conditions. The spare parts are sufficient to meet the needs of the users for five years.
| 3 Channels Mode |
| Channel | DMX value | Function |
| CH1 | 000←→255 | General Dimmer 0 to 100% |
| CH2 | Programs |
| 000←→009 | No effect |
| 010←→155 | 146 programs |
| 156←→249 | No effect |
| 250←→255 | Macro |
| CH3 | Scenes | Note: when the program is running, CH3 is used for adjusting the program speed. |
| 000 | No effect |
| 001←→030 | 0-19,- |
| 031←→056 | A-Z |
| 057←→255 | 199 other scenes |
| 8 Channels Mode |
| Channel | DMX value | Function |
| CH1 | 000←→255 | General Dimmer 0 to 100% |
| CH2 | Programs |
| 000←→009 | No effect |
| 010←→155 | 146 programs |
| 156←→249 | No effect |
| 250←→255 | Macro |
| CH3 | Scenes | Note: when the program is running, CH3 is used for adjusting the program speed. |
| 000 | No effect |
| 001←→030 | 0-19,- |
| 031←→056 | A-Z |
| 057←→255 | 199 other scenes |
| CH4~CH8 | 000←→255 | The 1st~5th row lamps dimming (10-100%) |
| 25 Channels Mode |
| Channel | DMX value | Function |
| CH1~CH25 | 000←→255 | Individual Lamps dimming 10 to 100% |
| 28 Channels Mode |
| Channel | DMX value | Function |
| CH1 | 000←→255 | General Dimmer 0 to 100% |
| CH2 | Programs |
| 000←→009 | No effect |
| 010←→155 | 146 programs |
| 156←→249 | No effect |
| 250←→255 | Macro |
| CH3 | Scenes | Note: when the program is running, CH3 is used for adjusting the program speed. |
| 000 | No effect |
| 001←→030 | 0-19,- |
| 031←→056 | A-Z |
| 057←→255 | 199 other scenes |
| CH4~CH28 | 000←→255 | Individual Lamps dimming 10 to 100% |
