Home LED Light Products UL, SAA and Dlc Cert 100W LED High Bay WiFi Controlling Dimmable Light

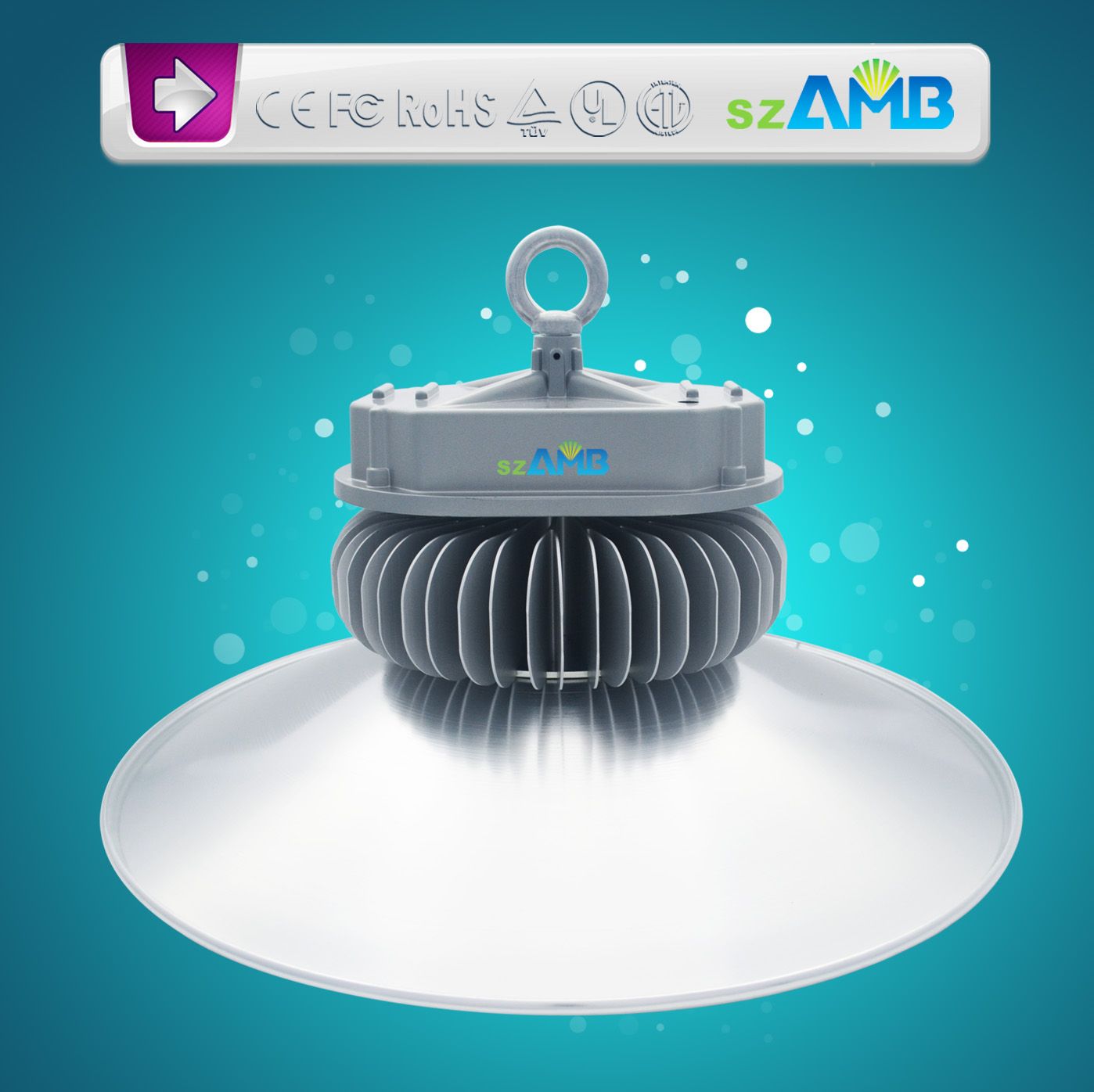

UL, SAA and Dlc Cert 100W LED High Bay WiFi Controlling Dimmable Light

UL, SAA and Dlc Cert 100W LED High Bay WiFi Controlling Dimmable Light
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 2/Piece
Pay Type: L/C,T/T,Paypal,Western Union
AMB 100W LED high bay Specification:

High quality 100W LED high bay: 5years warranty time 100W LED high bay

AMB offer 50W smart LED high bay to 300W powerful LED high bay (50W, 80W, 100W. 120W. 150W. 200W. 250W. 300W )

Meanwell HLG model driver AC85-AC305V with UL, PSE. CE. ETL. CSA. SAA RoHS, IP67

Bridegelux BXDC6060 model LED. 60mil Chip Size. 140lumen/w. 5years warranty time Bridgelux Chip, its model is BXDC6060, which is 140lumen/w, with high performance heat sink fixture. The operating temperature is between 47-52 degree (tested in 31 degree workshop ). Best COB LED in the world, 16 patent technology with 80000hour

Perfect heat sink made COB LED operating temperature is 38 - 52 (ambient temperature is 32 )
Copper pin fin heat sinks + Japan HDT technology+2.277 W/Kg degree unique heat sink design are suitable foe extreme cooling needs and for scenarios that require rapid heat spreading, Absolute customization allows for the maximization of heat sink surface area and eliminates bypass air,
Huge aluminum heat sink area
AMB huge Aluminum heat sink, thermal conductivity, high voltage ok, high metal hot strength, AMB aluminum heat sink is 2.277 W/Kg degree, AMB unique heat sink design accord with world's development of radiato "light, high efficiency, environmental protection, energy saving" character 8 requirements

Model: AMB-3L-100W

Power 50W-300W

Luminous 4800lm-27000lm
Working Voltage 85-305VAC or AC347 AC385
Life Span >80, 000 Hours
Base N/A
Certification CE, RoHS, SAA, TUV, CSA, ETL (UL Pending)
Warranty 60 Months
Dimension Φ 480× 360-Φ 580× 572
Packing: YES

Warranty items Any quality problem AMB change free
Color temperature 2800k-6500k
  Model: AMB-3L-100W

Power 50W-300W
Luminous 4800lm-27000lm
Working Voltage 85-305VAC or AC347 AC385
Life Span > 80, 000 Hours
Base N/A
Certification CE, RoHS, SAA, TUV, CSA, ETL        (UL Pending)
Warranty 60 Months
Dimension Φ 480× 320-Φ 580× 522
  Packing YES
  Warranty items Any quality problem AMB change free
  Color temperature          2800k-6500k


  No. 1 2 3 4 5
  Model No. AMB-3L-50w AMB-3L-80w AMB-3L-100w AMB-3L-120w AMB-3L-150w
  Power Consumptionb
(W)
50 80 100 120 150
  LED Initial Flux
(LM)
5200 8300 12000 12500 15600
  Lamp Flux
(LM)
4800 7500 10400 11900 13500
  Beam Angle 60° /120° /150° 60° /120° /150° 60° /120° /135° /150° 60° /120° /135° /150° 60° /120° /135° /150°
  Input Voltage
(VAC)
90-305 90-305 90-305 90-305 90-305
  Power Factor
(PF)
> 0.97 > 0.97 > 0.97 > 0.97 > 0.97
  Power Efficiency 96% 93% 104% 95.8% 92%
  Color Warm White
Cool White
Warm White
Cool White
Warm White
Cool White
Warm White
Cool White
Warm White
Cool White

  Color Rendering Index
(CRI)
Ra75-85 Ra75-85 Ra75-85 Ra75-85 Ra75-85
  Working Enviornment Temperature: -40 to50
Humidity: 10%-90%
Temperature: -40 to 50
Humidity: 10%-90%
Temperature: -40 to 50
Humidity:         10%-90%
Temperature: -40 to 50
Humidity:       10%-90%
Temperature: -40to 50
Humidity:       10%-90%

  Material Aluminum Copper
PC
Aluminum Copper
PC
Aluminum Copper
PC
Aluminum Copper
PC
Aluminum Copper
PC

  IP Rating IP65 IP65 IP65 IP65 IP65
  Working Life
(Hours)
> 80000 > 80000 > 80000 > 80000 > 80000
  Product Dimension
(mm)
60° :
Φ 390× 290
120° :
Φ 415× 356
150° :
Φ 580× 280
60° :
Φ 480× 525
120° :
Φ 580× 415
150° :
Φ 580× 320
60° :
Φ 480× 525
120° :
Φ 580× 415
150° :
Φ 580× 320
60° :
Φ 480× 565
120° :
Φ 580× 455
150° :
Φ 580× 360
60° :
Φ 480× 565
120° :
Φ 580× 455
150° :
Φ 580× 360

  Packing Dimension
(mm)
Lamp Body
3kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 290× 289
Lamp Body
5.5kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 429
Lamp Body
5.9kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 429
Lamp Body
7.2kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 610
Lamp Body
7.5kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 610

  Net Weight/
Gross Weight (Kgs)
3kg/
3.5kg
5.5kg                    6kg 5.9kg
6.5kg
7.2kg
8kg
                        7.5kg
8kg




Comparison of Lifetime:

Pictures


  Products name

Life-span compare

  Cost compare

      HID high bay

6000hours

7 pieces new HID high bay cost, replacement  fee

  AMB LED high bay

  50000-80000hrs

5years warranty time
No replacement fee

Prod Model: AMB-3L-100W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Flux: 9800lumen
Warranty Time: 5 Years Warranty Time
LED Brand: 60mil Bridgelux LED Chip
Driver: Taiwan Meanwell Hlg Model
CRI: >80
IP: IP65
Life: 80000hrs
Power Source: AC
Electric Current Type: AC
Emitting Color: White
Lamp Body Material: Aluminum Alloy
Color Temperature: Cool White
IP Rating: IP65
Certification: SAA, UL, CE, FCC, RoHS and ETL Certs
SZAMB is professional smart LED high bay, Unique LED floodlight and New panel style LED tube manufacturer located in Shenzen, China

In 2005, SZAMB was founded and started Researching and Developing LED tube, LED high bay and LED floodlight,

In 2006. SZAMB put 80% energy, money to improve LED high bay series, after 9 months SZAMB LED high bay are upgraded to the top level in the world, we are the top LED high bay manufacturers. SZAMB offer 5years warranty time for LED high bay

In 2007, SZAMB cooperated with Japan Netled. Co. Jp to R&D Networked lighting system, which Optimizing the benefits of LED, NETLED allows granular control of long lasting and low power LED lighting down to the tube level through a cloud(Internet) system, By controlling illumination only when, where and to the degree needed, energy saving are optimized and lighting environment is improved

In 2008, SZAMB National dimmer LED tube set a food in the marketing. This dimmable LED tube range is from 0.2%-100%. Which was warm welcome by Canada, USA, EU distributors. Because it saved lots of money and energy for hotels. Airport. Office and commercial buildings

In 2009, SZAMB cooperated with Sweden energy. YB to R&D panel style LED tube, We know this new design LED tube will change all normal LED tube' S future, our Idea is LOF design (LED On Fixture),

Plug and play LED fixture with male and female connector and IP65 waterproof class advantages, SZAMB panel style LED tube is welcomed by for all high-level hotel, market, commercial building and outdoor garden, road project, SZAMB Saved electronic fee. Fixture fee, wireless fee and replacement fee for our customers

In 2010, SZAMB cooperated with Canada Wilcox Electric company to R&D green housing LED lighting, after 6moths testing by Columbia University, Yale university, it approved SZAMB 200W LED fixture is the best solution for fruit and vegetables growing

In 2011 SZAMB cooperated with Holland Lioris LED driver company. From 2011, SZAMB 9-40W LED tube with 50000hours warranty time set a foot in marketing, we are the only one factory can guarantee 50000hours for full tube because of the exceeding 0.99PF LED driver, , We do the testing in Germany, get TUV, VDE and CE report in Germany located testing lab, this driver tech is most 50 years progressive than other branch

In 2012, SZAMB netled WiFi control l LED tube, LED high bay finished the testing. NETLED lighting in one' S Personal Area can be controlled by iPhone, iPad or other smartphone (Android)

SZAMB cooperated with Japan Yashima company to R&D AC100-260V COB LED. Which is dimmable AC COB LED, no need driver. With this new technology, we will make more and more mini LED high power lighting. Save more money for our customers

We set up on the firm belief of offering the high quality, unique design, automatic functions and fully warranted LED tube and LED high bay to our customer at the most competitive price. We have a strong engineer team which composed of 15 individuals with perfect designers.

Our management system is strictly conducted according to ISO9001-2008, TUV, SGS standard. We always stay ahead of this field because of our talented creativeness, like Unique designed structure and attractive appearance, stable quality proved by TUV/CE/RoHS/FCC, ETL and UL certification. We have a great production group to ensure our production capability, professional LED tube SMT, Soldering machine and 102 people on the production line to make sure 30, 0000PCS of LED tubes and 100000PCS LED high bay output every month. LED technology is high efficiency, cost effective, energy efficient and environmental friendly. Our goal is to keep on researching and developing super LED tube and LED high bay, to offer a bright world. We will let the world know that "SZAMB change your light life ".
