High Bay/ LED High Bay Light/ High bay Light
Using CREE, with UL listed Fuyuan or Mean Well driver, 4 years warranty, CE RoHS PSE listed
High Bay 30W 50W 80W 100W 120W 150W 160W 180W 200W
----Basic Parameter----
1. Input power: AC85-265V
2. Beam angle: 60/90/120°
3. CRI: >75Ra
4. Main material: Aluminum + PC
5. Life Span: >50000h
6. LED chip: CREE
7: CCT: 5800~6300k, 4000-4500k
8. Work Tempreture: -20~45º C
9. Recommendation Installation Distance: 15-20m
10. IP54
11. CE RoHS PSE
----Detailed Description----

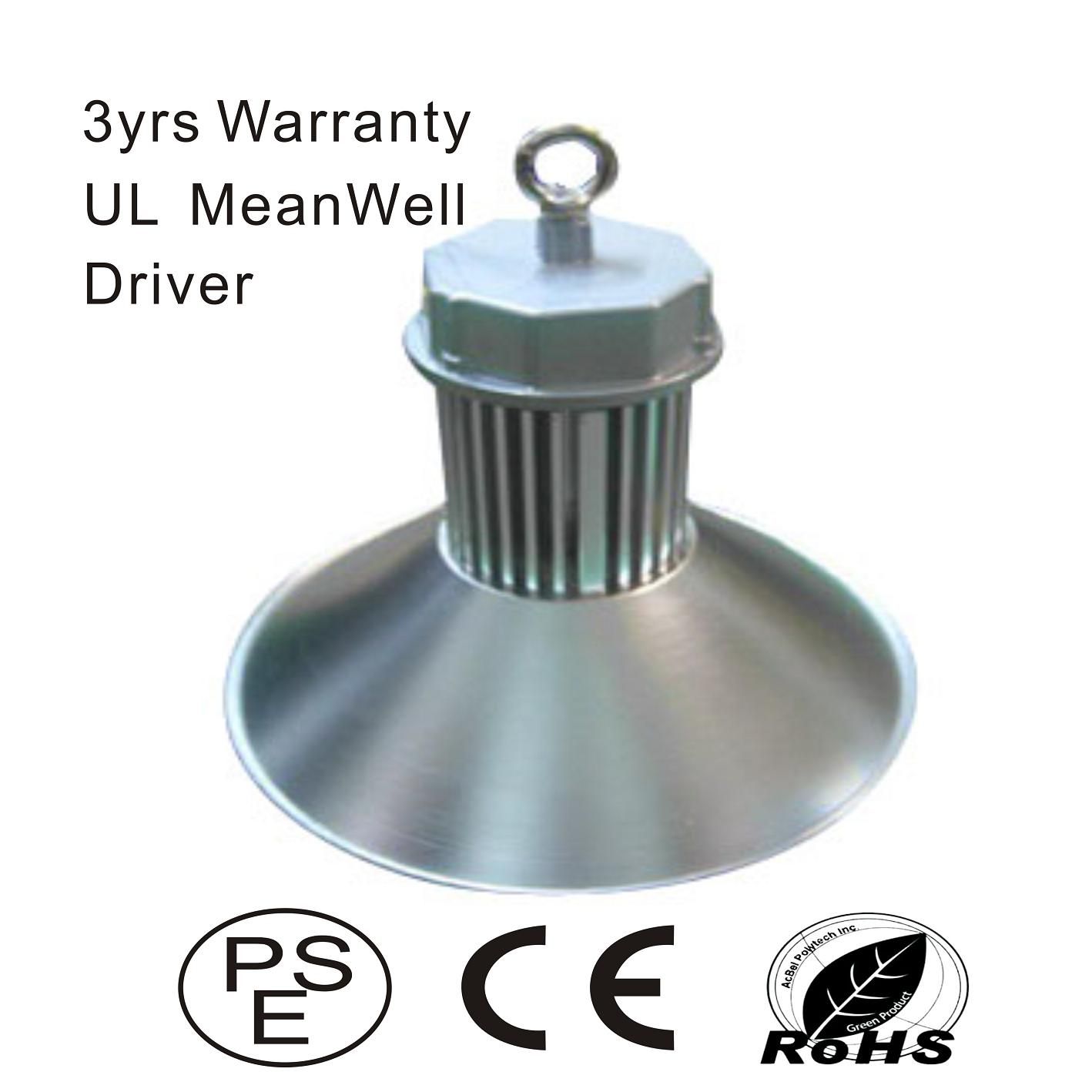

120W LED High Bay Light
1. Size: 480*500
2. LED quanlity: 12PCS
3. Total Luminous Flux: 5500-6000lm
4. Power Factor: 0.95
5. LED Work Voltage: DC36~48V
6. LED Lighting Efficiency: 60-80lm/w
7. N. W: 6.3kg
8. Recommendation Installation Height: 5-6m(max: 12m)
Application
Industrial building, Gymnasium, Shops, Subway, Platform, Gas station.
Features
A. CREE LED, 60% energy saving than HPS.
B. Adopt UL driver
C. Excellent decorative effect, easy to install and remove.
E. No UV or IR radiation
F. Low heat emission.
----Quotation----
The price in the catalogue is based on FOB Shenzhen for final order excluding the freight charge.
For sample order, the price will be a little higher than bulk order, except the free sample.
----Freight----
Freight will vary depending on destination, weight(volume weight), courier, or forwarder. We will always choose the cheap but safe transportation for customers.
Customer can also assign the forwarder and pay the freight by customer.
----Shipment----
1. For sample order, taking 3 days, we use courier like DHL, UPS, FedEx, TNT, EMS. Customer can assign the courier.
2. For larger order, taking 10 working days, we could use courier, air cargo or ocean shipping.
3. Customer can also assign your forwarder to make the transportation.
----Payment----
Customers could choose T/T, L/C, Paypal, Western Union.
|
Item No. |
Power |
Total luminous |
LED qty. |
N. W |
Specification |
Recommendation installation height |
|
AEM-G01 |
80W |
4000-4500lm |
8pcs |
5.25kg |
CRI: > 75Ra |
Recommendation installation distance: 15-20m |
4.5-5m(MAX: 12m) |
|
100W |
5000-5500lm |
10pcs |
5.25kg |
IP level: IP54 |
Emitting color: Cool White, Neutral White |
5-6m(MAX: 12m) |
|
120W |
5500-6000lm |
12pcs |
6.3kg |
Voltage: 85-265V |
CCT: 5800-6000K, 4000-4500K |
|
150W |
7000-8000lm |
16pcs |
7.9kg |
Life span: > 30000h |
LED lighting efficiency: 60-80lm |
8-10m(MAX: 18m) |
|
160W |
8000-9000lm |
18pcs |
7.9kg |
Frequency: 50-60Hz |
Beam angle: 45° /60° /120° |
