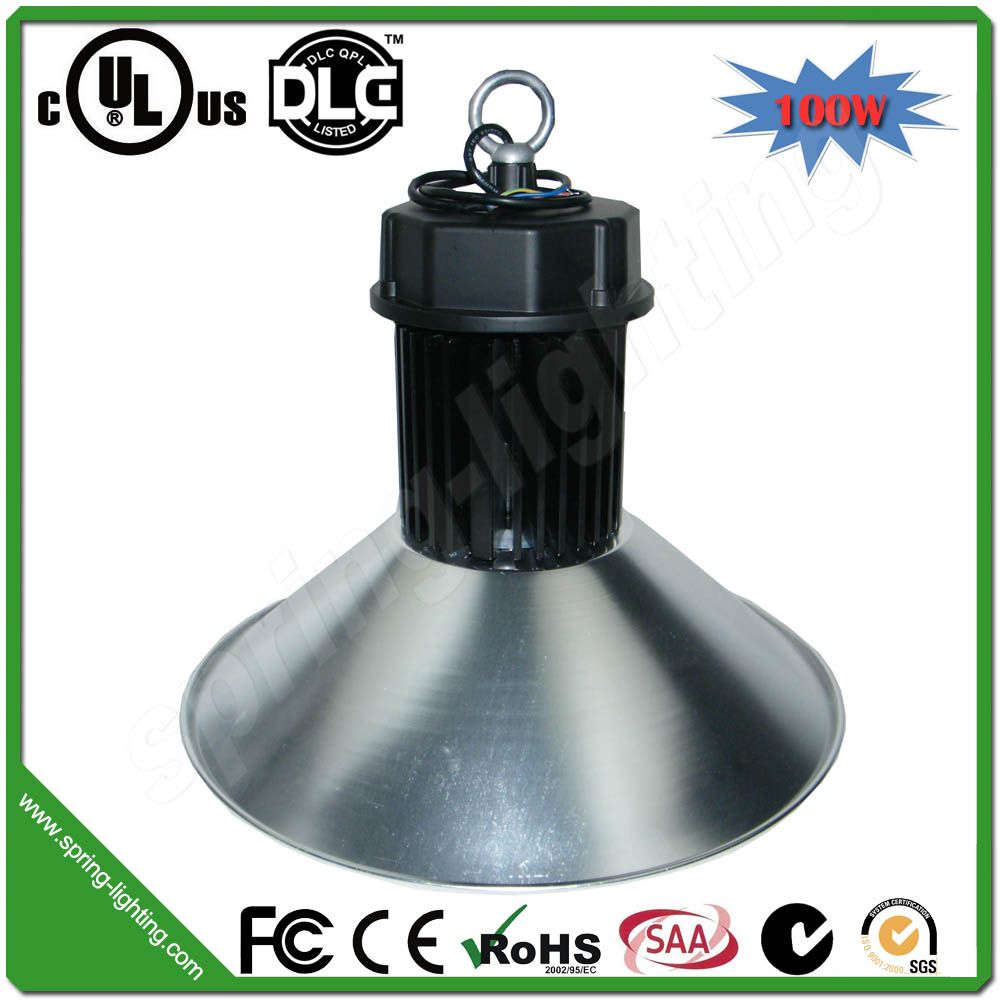

China Manufacturer of LED High Bay Light, LED high bay lights, LED factory light, LED industrial light.
Model: LED high bay lights 30W/50W/80W/100W/120W/160W/200W
100W Height: 185mm
80W Height: 145mm
50W Height: 85mm
30W Height: 55mm
Such as:
Model: 80W
Light Source: SMD bridge lux LED High bay
Input voltage: AC85-265V, 50-60Hz
PFC ≥ 0.98
Power efficiency: ≥ 87%
Working temperature: -40 ~ +55 degrees
CCT: 2700-7000K
Lumens: 6800-7300 lm
Power factor: ≥ 0.95
Ra: ≥ 80
Housing material: Aluminum, IP65
Dimension: 500*466mm
Beam angle: 130°
Life-time: 50000hours
Installation:
1. This product should be installed by trained electricians.
2. Check integrality of the products when unpack the packing.
3. When laying the cables, make sure that the cables and plugs are not subjected to any tensile or twisting forces.
4. Fit the cable tension relieving mechanisms to the connection points of the surface-mounted lights. Do not kinkcables. Output cables should be laid separately and at a distance from other cables.
5. Proceed by connecting the wiring cables to the luminaries. Usually, the brown(or black) wire is the live wire, connect it with the terminal marked l. The blue wire is naughty wire, connect it with the terminal marked n.
6. Do not remove the name plate of the power supply and driver of the light.
Spring-lighting Electronics Co., Ltd. is a professional manufacturer in R&D, manufacturing, marketing and service of LED lightings. Our main products include LED flood lights, LED streetlights, LED bay lights, LED panel lights, LED tube light, Corn LED bulb etc. All of our LED lights have certified by CE & RoHS, UL, CSA, DLC and etc. We research and process LED aluminum housing and other LED lighting accessories by ourselves as well. From raw material to finished product, every single process occurs within the walls of our own factory. Quality is never compromised.
Our company has gathered a bunch of qualified staff specializing in LED researching and managing, introduced advanced equipment and testing device, which make our products being perfect day by day and reach advanced standard in LED industry. We have passed ISO9001: 2000 quality control system, and the products obtained CE, RoHS, FCC certification. Our products have aging test at least for a continuous 48-72 hours before being released to delivery. Meanwhile, we have our own professional sales team. On these, we have obtained good reputation and serve customer from cover Asia, America, Europe, etc.
We strictly pursue our policy of systematized management, sustained improvement, prompt delivery, customers satisfaction, sincerely offering good service to all of our customers.
Welcome to contact with at any time!
We supply one-stop service for you from mould-design, lamp housing-diecast, power supply-design & production, finished product-assemble & after sale.
