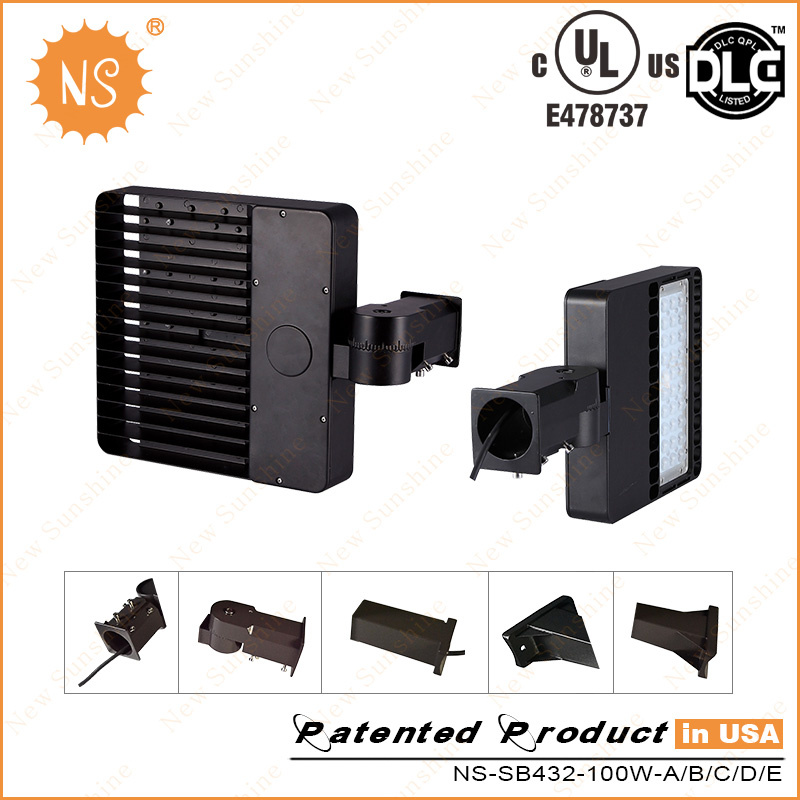

UL DLC IP65 10000lm 100W LED parking lot light
Product Advantage
1, Latest LED technology
LED chip: Samsung 3535
LED Driver: Meanwell (UL standard driver)
PC cover & PC lens can be your choice; Impact resistance;
2,Excellent Thermal Management
MW power supply separate design with LEDs/PCB,better heat dissipatio;
Special design integrate dia cast aluminum, it's better for heat transfer from LEDs/PCB to heat sink;
Operating temperature: -40°C to 50°C
3.Unique driver design
The driver is separated with the SMD's heat dissipation areas , it could decreas the heat influence on the driver .the driver would be more stable
4. Thewaterproof connector make the AC connect the input wire
convenient ,and the DC connector is to make the driver's replancement and maintenance conveniet.
Product Information
Part Number: NS-SB432-100W
Item Weight: N\W: 6KG, G\W: 7KG
Product Dimensions: 13.5*13.5*17 inch
Warm White(3000-3500K) Neutral White:(4000-4500K) Cool White(6000-6500K)
Material: Die-Cast housing
Wattage: 100watts
Item Package: Quantity 1
Luminous Flux: 10000lm
Certification: UL cUL DLC
Item Code | Power(W) | Volltage(V) | Lumens(Lm) | G*W (Kg) | QTY/Carton | Size/Carton(inch) |
NS-SB432-80W | 80 | AC100-277 | 7200-8000 | 6.5 | 1 | L22.9″xW15.6″xH4.6″ |
NS-SB432-100W | 100 | AC100-277 | 9000-10000 | 7 | 1 | L22.9″xW15.8″xH7.1″ |
NS-SB432-150W | 150 | AC100-277 | 13500-15000 | 7 | 1 | L22.9″xW15.8″xH7.1″ |
NS-SB670-200W | 200 | AC100-277 | 18000-20000 | 12 | 1 | L32.3″xW15.8″xH7.1″ |
NS-SB670-300W | 300 | AC100-277 | 27000-30000 | 12 | 1 | L32.3″xW15.8″xH7.1″ |
Advantage Technical Details
1, Designed with a large cast aluminum body and a vertical vent pattern designed to improve thermal dissipation and provide a low side view profile.
2, The standard mounting hardware is comprised of a knuckle joint to allow for -90° through +90° degree angle and rotation capability.
3, An additional assortment of mounting kits allow for direct mounting to square poles and round poles.
4, Samsung LEDs and is powered by Meanwell drivers.
5, Luminaires are Dark Sky compliant,UL and DLC listed and are rated as IP65 (dust tight and will withstand powerful water jets).
6, Products be free of charge within 6 month of replacement service,5 years warranty for repair parts
Product Specifications:
1. Lamp Type: 100W LED retrofit lighting
2. Install: Mounted
3. Rating Power(W): 100W
4. Luminous Flux(lm): 10000LM
5. Input Voltage: 100~300VAC, 50/60Hz
6. LED chip: 60PCS, Sumsung
7. Color Temperature(K): 2700-6500K
8. Beam Angle: 120 degree
9. Operation temperature: -20C~50C
10. Storage temperature: Normal temperature
11. Storage humidity: Normal humidity
12. Life Time (Hrs): 50000H
13.Waterproof Rating: IP65
Advantage:
1, Die-Cast housing with UV resistant powder coating
2, UL/CUL DLC listed,suitable for wet location,IP65
3, High impact polycarbonate diffuser
4, Operating temperature: -20°C to 50°C
5, THD<15%,Power Factor >0.9
6, 5 years warranty
6. Instant start, No flickering, No humming
7. Easy to install and operate
Package details:
1 100W LED retrofit lighting Inner box size:22.9*15.8*7.1inch
Carton size :22.9*15.8*7.1inch,1PCS/CTN, G.W.: 7KG
Notice:
1. Make Sure To Cut Off The Power Before Install LED parking light
2. Not suitable for dimmers or electronic switches or remote controls.
