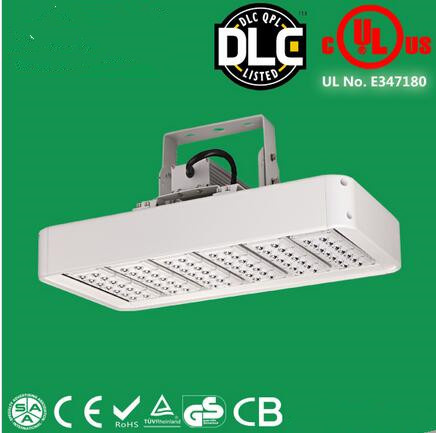

UL cUL Dlc TUV SAA 250W LED High Bay Light
| Price: |
US $ 100-300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,D/P,Paypal,Money Gram,Western Union |
- Light Source: LED
- Item Type: High Bay Lights
- LED Light Source: Philips Luxeon T LED chip
- Warranty(Years): 5
- Input Voltage(V): 90-305
- Lamp Power(W): 250
- Lamp Luminous Flux(lm): 28750
- Lamp Luminous Efficiency(lm/w): 115
- CRI (Ra>): 75
- Color Temperature(CCT): 3000, 4100, 5000, 5700, or 6500K
- Working Temperature(ºC): -40 - 50
- Working Lifetime(Hour): 62000
- Lamp Body Material: Aluminum
- IP Rating: IP65&IP67
- Certification: C-tick, CE, EMC, ETL, FCC, GOST, GS, LVD, PSE, RoHS, SAA, UL
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: KINGWON
- Model Number:
- Replace HID /HPS / Metal Halide Lamp:800W
- Input Voltage: 90-305VAC or 347-480VAC or 12/24VDC
- Color Rendering Index(CRI):Ra>75(>80optional)
- Ability of Waterproof: Waterproofed
- Source: Philips Luxeon T chip
- LED Driver: Mean Well
- Face: Anti-sati Coating
- Power Factor(PF>): 0.95
- Power Supply Efficiency(>): 95%
| Product Details |
| Model | Power | Luminous Flux: | Replace HID Lamp | Lamp Size | Net Weight | Packing | Gross Weight |
| 40Wi | 40W | 4600lm | 100-120W | 303*151*183mm | 3.5kg | 370*300*255mm | 6.3kg |
| 80Wi | 80W | 9200lm | 200-250W | 303*232*183mm | 5.2kg | 380*300*255mm | 8.1kg |
| 120Wi | 120W | 13800lm | 300-350W | 303*311*196mm | 6.2kg | 375*470*255mm | 9.3kg |
| 160Wi | 160W | 18400lm | 400-500W | 392*303*196mm | 7.2kg | 375*500*255mm | 10.5kg |
| 200Wi | 200W | 23000lm | 500-600W | 473*303*196mm | 8.5kg | 375*542*255mm | 11.8kg |
| 240Wi | 240W | 27600lm | 600-750W | 554*303*196mm | 9.3kg | 375*625*255mm | 13.5kg |
| 280Wi | 280W | 32200lm | 700-1000W | 635*303*196mm | 10.5kg | 375*705*255mm | 14.3kg |
| 320Wi | 320W | 36800lm | 800-1000W | 713*303*196mm | 11.8kg | 375*788*255mm | 15.8kg |
| 360Wi | 360W | 41400lm | 1000-1100W | 794*303*196mm | 13.3kg | 375*885*255mm | 16.5kg |
| 400Wi | 400W | 46000lm | 1000-1200W | 875*303*196mm | 15.5kg | 375*965*255mm | 17.3kg |
| Main Parameters |
| Driver | Meanwell Driver | CRI | Ra > 75 (>80 optional) |
| LED Chips | Philips Luxeon T chip | Color Temperature | 3000-3500, 4100, 5000, 5700, or 6500K |
| IP Rating | IP65 & IP67 | Luminous Efficiency | 110-115lm/w |
| Guarantee | 5 Years Warranty | Operating Voltage | 90-305VAC or 347-480VAC or 12/24VDC |
| Certifications | UL,DLC,TUV,SAA,CE,RoHS | Operating Temperature | -40 ºC to +50 ºC |
| Heat Radiator | Anodized Aluminum | Operating Humidity | 10% to 90% |
| Face | Anti-static Coating | Power Fact | >0.95 |
| LED Life Span | 62,000 hours LM70 | Power supply efficiency | >90% |
| Options | Dimming/Timer/zigbee/Photocell/Motion Sensor |
| Prod Model: |
KW-HB24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Source: |
LED |
| Warranty: |
3 Years |
| Item Type: |
High Bay Lights |
| Input Voltage: |
AC85-265V |
| LED Light Source: |
Bridgelux or CREE Chip |
| Working Lifetime: |
50000 Hours |
| Angle: |
45/90/120 Degree |
| Operating Humidity: |
10% to 90% |
| Chip Model: |
COB |
| Working Temperature: |
-40 - +50 |
| Color Temperature: |
Pure White |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP66 |
| Certification: |
EMC |
| Color: |
Black |
| Power: |
300W |
Dongguan Slionto Electronic Technology Co., Ltd founded in 2008, is located in Humen town, Dongguan city, Guangdong province, where near the lighting capital of China,
For many years, we always followed the business philosophy of "quality win, people-oriented, serving the public"; In the production, we strive for excellence and in strict accordance with ISO quality management system and national standards; We are guided by "We'll get developing only after you get real benefits. ", provide the most efficient, most complete, most quality and most thoughtful product supply and service for the majority of customers. We believe in hard work is rewarded, by working together, we will continue to contribute to the green lighting industry.
We are a company dedicated to helping international trade group sourcing various kinds of LED lights in China, Dongguan Slionto Electronic Technology Co., Ltd, formerly named Kingwon Creation Limited from Hongkong which started in 2008. We focus LED lighting business for many years, such as LED outdoor light and solar LED street light, LED corn light, street light, high bay light, panel light, LED street lamp etc., we have many very friendly good factories in Shenzhen and Zhongshan city, we sure that we can give a better choice to you, no matter exporting or sales in domestic market, please contact and lets discuss.
We welcome old and new customers from all walks of life to contact us for future business relationships and mutual success!
Our mission: Let the world no darkness.
To client: Annotate beauty with light.
To employee: Create the space for development, increase self-worth.
To society: Insist on sustainable development, contribute to society.
