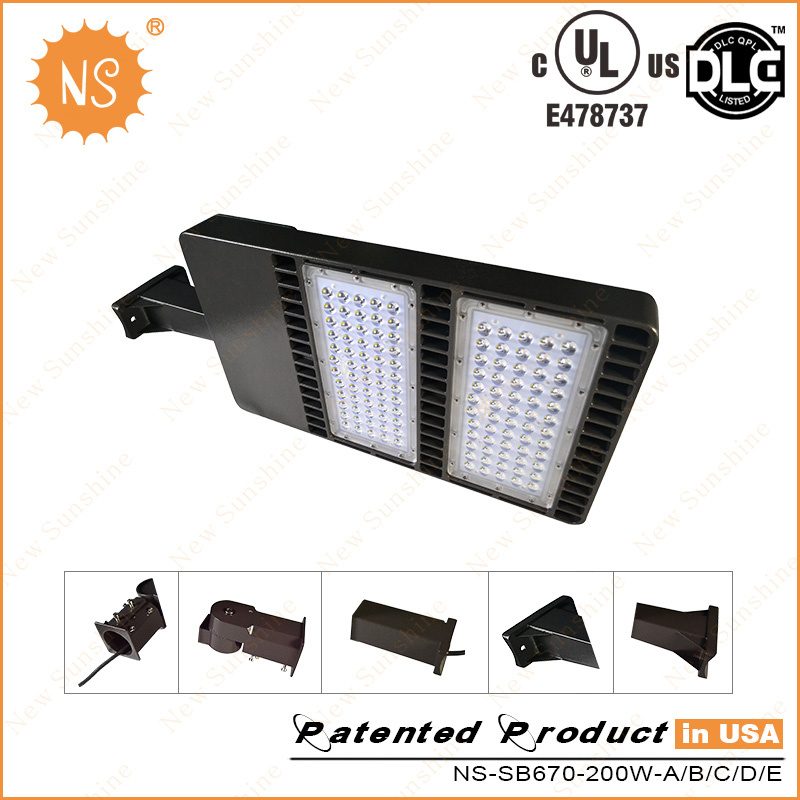

UL(478737) DLC IP65 200W Shoebox LED Light Fixture
Product advantages:
1, Latest LED technology
LED chip: Samsung 3535
LED Driver: Meanwell (UL standard driver)
PC cover & PC lens can be your choice; Impact resistance;
2,Excellent Thermal Management
MW power supply separate design with LEDs/PCB,better heat dissipatio;
Special design integrate dia cast aluminum, it's better for heat transfer from LEDs/PCB to heat sink;
Operating temperature: -40°C to 50°C
3.Unique driver design
The driver is separated with the SMD's heat dissipation areas , it could decreas the heat influence on the driver .the driver would be more stable
4. Thewaterproof connector make the AC connect the input wire
convenient ,and the DC connector is to make the driver's replancement and maintenance conveniet.
Product Information
Part Number: NS-SB670-200W
Item Weight: N\W: 10.5KG, G\W: 12KG
Product Dimensions: L32.3″xW15.8″Hx7.1″
Warm White(3000-3500K) Neutral White:(4000-4500K) Cool White(6000-6500K)
Material: Die-Cast housing
Wattage: 200watts
Item Package: Quantity 1
Luminous Flux: 20000lm
Certification: UL cUL DLC
Patent Design: United States and European Union
|
80W | 100W | 150W | 200W | 300W |
| Item | NS-SB432-80W | NS-SB432-100W | NS-SB432-150W | NS-SB670-200W | NS-SB670-300W |
| Led source | SAMSUNG | SAMSUNG | SAMSUNG | SAMSUNG | SAMSUNG |
| IP grate | IP65 | IP65 | IP65 | IP65 | IP65 |
| Valtage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
| CCT(K) | 2600~7000 | 2600~7000 | 2600~7000 | 2600~7000 | 2600~7000 |
| Lumen(LM) | 7108~8135 | 8500~11038 | 13115~16075 | 18025~21376 | 27560~29707 |
| CRI | >70 | >70 | >70 | >70 | >70 |
| Net Weight | 5.6kg | 5.7kg | 5.8kg | 10kg | 10.5kg |
| Size(L*W*H) | 13.5*13.5*2.68in | 13.5*13.5*2.68in | 13.5*22.9*2.68in | 13.5*22.9*2.68in | 13.5*22.9*2.68in |
| Equivalent | 200W MHL/HPS | 250W MHL/HPS | 300W MHL/HPS | 400W MHL/HPS | 600W MHL/HPS |
| Certificate | UL,DLC | UL,DLC | UL,DLC | UL,DLC | UL,DLC |
| Lifespan | 50,000hours | 50,000hours | 50,000hours | 50,000hours | 50,000hours |
| Warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty |
| Operating Tep | (-68-122ºF) | (-68-122ºF) | (-68-122ºF) | (-68-122ºF) | (-68-122ºF) |
Technical Details
Eco-Friendly and energy saving
Metal halide 600W Replacement
Products be free of charge within 6 month of replacement service,5 years warranty for repair parts.
Product Specifications:
1. Lamp Type: LED parking lot light
2. Install: Screwed
3. Rating Power(W): 200W
4. Luminous Flux(lm): 20000LM
5. Input Voltage: 100~300VAC, 50/60Hz
6. LED chip: 120PCS, Sumsung
7. Color Temperature(K): 2700-6500K
8. Beam Angle: 120 degree
9. Operation temperature: -20C~50C
10. Storage temperature: Normal temperature
11. Storage humidity: Normal humidity
12. Life Time (Hrs): 50000H
13.Waterproof Rating: IP65
Advantage:
1, Die-Cast housing with UV resistant powder coating
2, UL/CUL DLC listed,suitable for wet location,IP65
3, High impact polycarbonate diffuser
4, Operating temperature: -20°C to 50°C
5, THD<15%,Power Factor >0.9
6, 5 years warranty
6. Instant start, No flickering, No humming
7. Easy to install and operate
Package details:
1 200W LED shoebox light Inner box size: L32.3″xW15.8″Hx7.1″ 1inch
Carton size : L32.3″xW15.8″Hx7.1″ inch,1PCS/CTN, G.W.: 12KG
Notice:
1. Make Sure To Cut Off The Power Before Install LED parking lot light
2. Not suitable for dimmers or electronic switches or remote controls.
