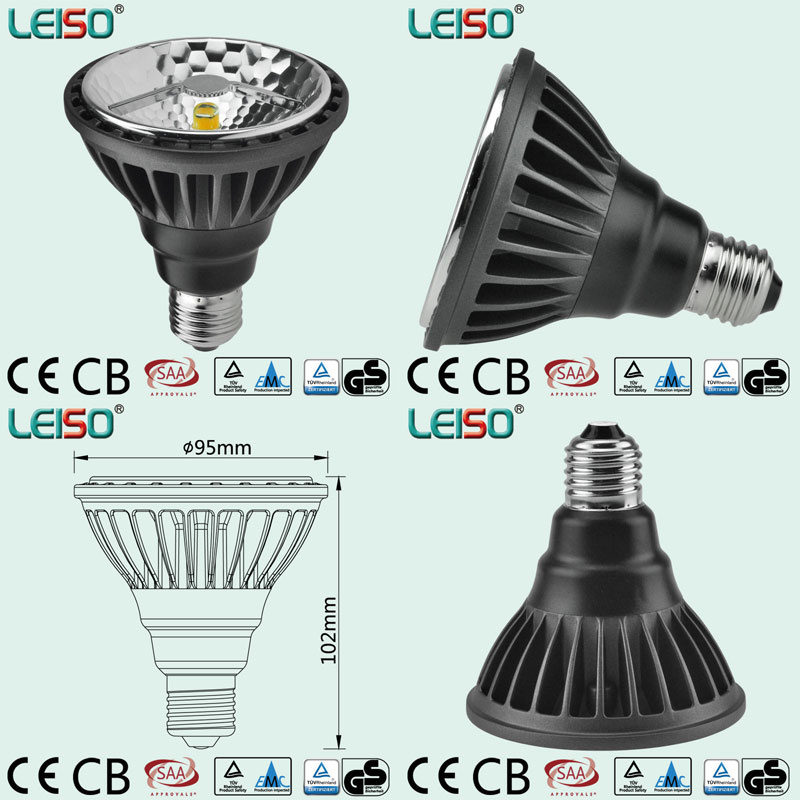

TUV & GS Approval CREE Chip Spotlight LED PAR30
1. Specification details
Power: 15W SCOB reflector PAR30
Light Source: CREE Chip, Packaged by Leiso (SCOB)
Standard CCT: 2700K, 3000K, 4000K, 5500K or customized according to your requirements.
CRI: Ra80~98 available
Input voltage : 100-240V AC
Lumens : CRI >80, 840 lm (2700K), CRI >80, 860 lm (3000K)
CRI >80, 900 lm (4000K) , CRI >80, 960 lm (5500K)
CRI >90, 780 lm (2700K), CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K)
Beam Angle : 25°
Base : E27 / 26 / B22
Material : Dia-casting Aluminium
Certifications : TUV-GS, TUV-EMC, ERP, SAA CE RoHS Certificated
Operation Temperature: -20-50°
Warranty : 3 years Warranty
Lifespan : 4, 5000hours
2. Advantages and characters
2.1 Adopt patented SCOB light source (stereoscopic chip on board);
2.2 Unique design makes it different from existing led bulbs of public mould;
2.3 Opitical reflector design keeps the same appearance and light distribution with the traditional halogen lamp, which is easily accepted by the wide users;
2.4 Directly replace 75W halogen lamp, saving at least 75% energy;
2.5 Long lifespan for 45,000 hours, if calculating as 4 hours every day, its average lifetime can reach more than 30 years, saving energy and money for you;
2.6 No infrared and ultraviolet radiation;
2.7 Accordance with the international safety standards such as UL, CE, GS, TUV, SAA and so on;
2.8 With CE, GS, TUV, CB, ERP, SAA, EMC and RoHS certificate.
3. Technical Parameters sheet of P715 series PAR30 SCOB 15W
Item No. | Data sheet | Power | Lumens (CCT) | Product
Dimension | Voltage | Dimmable | MOQ | Packing Data |
CTN
Qty | CTN
Dimension | Volume
weight | Gross
weight |
| LS-P715-BWW/BW | * SCOB LED PAR30
* Reflector design
* CREE Chip
*Base:E26/E27/B22
* Beam angle : 25°
* Power factor>0.90
*Lifespan≥45000H | 15W | CRI >80, 840 lm (2700K)
CRI >80, 860 lm (3000K)
CRI >80, 900 lm (4000K)
CRI >80, 960 lm (5500K) | Φ95*H102mm | 100~240V AC | NOT | 300 | 30 | 53x39x22cm | 8.5kg | 10.1kg |
| LS-P715-A-BWW/BW |
| LS-P715-BWWD/BWD | CRI >90, 780 lm (2700K)
CRI >90, 800 lm (3000K)
CRI >90, 420 lm (4000K) | 220~240V AC | YES | 300 |
| LS-P715-A-BWWD/BWD |
