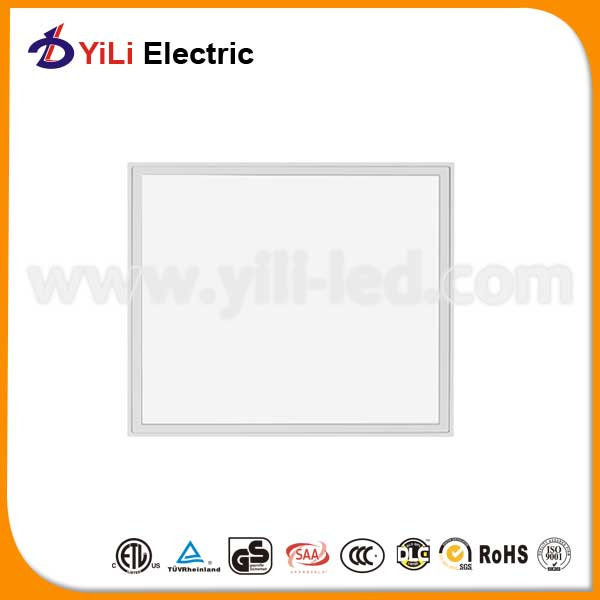

* Main cooling structure use anodized aluminum and high transmittance acrylic light guide combination;
* Ultra-thin design, good lighting effects, but also brings a feeling of beauty;
* Uniform plane glow, illumination uniformity, soft light, comfortable but not bright, also can relieve eye fatigue;
Features
* LED:SMD 2835 2016 4014;
* TH:7.5mm, 9.5MM;
* Dimmable,CCT adjustable and RGB;
* Silergy IC+Ruby capacity+Infineon model tube.*
Constant current drive and European and American IC make sure the high stability.
*Dimmable(0-10V dimmer and Switch dimmer)& non-dimmable included.
*Each Watt between 13 to 72w meets the certified standard.
*Height range of 7.00-25.00mm & width of 595-625mm are both within ETL/CETL Standard.
*Height range of 7.00-65.00mm & width of 595-625mm are both within GS-Mark&TUV-Mark Standard.
*80-130LM/W,10LM/W up per level.
*LED chip type 2835,2016,4014 for choice.
*5 years warranty.
Specifications
| Parameter Model | Waat(W) | Beam Angle | CCT(K) | CRI(Ra) | PF | Efficiency | Hz | Voltage |
|
| PL-40W-66-28-FTG | 13-15 | 120° | 3000-6500 | 85 | ≥0.95 |
130 Lw/W
120 Lw/W
110 Lw/W
100 Lw/W
90Lm/W
80Lm/W
|
50/60 |
AC100-240
AC100-277 |
PL-50W-66-28-FTG | 16-18 | 120° | 3000-6500 | 85 | ≥0.95 |
| PL-60W-66-28-FTG | 19-20 | 120° | 3000-6500 | 85 | ≥0.95 |
| PL-72W-66-28-FTG | 21-22 | 120° | 3000-6500 | 85 | ≥0.95 |
Applications
* Widely use in hospitals, schools, shopping malls, restaurants, hotels, office buildings, etc.
