Product Description
cUL UL DLC led tube T8 single end power 4 foot 18w led T8 tube/LED T8 TUBE/ul led tube/led tube/t8 led tube/led t8
Specification:

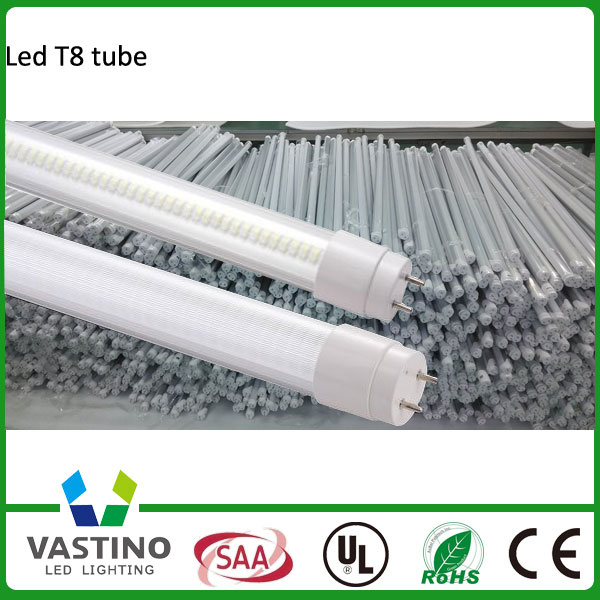

Description: LED T8 Tube
Product Code: VTL-TU8-18W-1200mm
Beam Angle: >120°
Input Power: 9-24W
Dimention: 0.6m, 0.9m, 1.2m, 1.5m, 2.4m
Input Voltage: AC110V-277V
Life Time: >50, 000 hours
Light Source: 110PCS 2835 SMD LEDs
Replacement: 50W traditional fluorescent lamp
Safety Cert.: CE & RoHS UL CUL SAA TUV
Solution: Built-in LED Driver (Mains isolated driver)
Features:
1,Adopt super brightness smd2835 light source,26-28lm/pcs; Luminous Efficacy of Milky white cover can up to 105LM/W;
2,High energy saving efficiency, 90% of energy saving than incandescent lamp,60% than fluorescent lamp;.
3,Special encapsulation on led chip,durable and long lifespan 50000hrs;
4,No IR&UV,no thermal radiation and mercury pollution,green and environmental protection;
5,As it is cold light source,Led lights will not make the goods color fading;
6,Used high quality cover,soft light, high light transmittance, to realize Comprehensive lighting effect;
7,High color rendering index, most intuitive and clear, different Color temperature can be chosed;
8,Quick start and fast to output full brightness, no stroboflash,no glare;
9,Solid light source, with high impact and strong shock-proof,easy installation and safety transportation;
10.Innovative model and humanized design,cater to more customer demand;
LED Tube light Application:
1. Illumination lighting for homes, offices, restaurants, hotels, malls, buses, trains, warehouses, parking lots etc.
2. Task lighting for cabinets, cupboards etc in your homes, restaurants, and kitchens or any other places where accent lighting is required.
3. Dispplay lighting for the articles in your stores and shops.
4. Back lighting for square billboards or advertisement boards.
PACKAGE
Vastino LED Lighting(shenzhen) Co,ltd
1.12years experience for LED;
2. Practical and reliable after-sales service;
3. LED lighting quality: Stable performance, wide applicability and high protection grade, etc.
Product Parameter
Basic Parameter
Item NO. | Light source | power supply mode | Dimension(mm) | Main Material | IP Grade | Lamp Socket |
| VTL-TU8-9W-600mm | SMD2835 | Single- ended/Double-end | D26*L600 | Al+PC | IP50 | G13 |
| VTL-TU8-14W-900mm | Single- ended/Double-end | D26*L900 | Al+PC |
| VTL-TU8-18W-1200mm | Single- ended/Double-end | D26*L1200 | Al+PC |
| VTL-TU8-24W-1500mm | Single- ended/Double-end | D26*L1500 | Al+PC |
Electrical Parameter
Item No. | Rated Power(W) | Input Voltage(V) | Transfer efficiency (%) | Power Factor |
| VTL-TU8-9W-600mm | 9W | AC100-240V/277 | ≥85% | >0.88 |
| VTL-TU8-14W-900mm | 14W | ≥88% |
| VTL-TU8-18W-1200mm | 18W | ≥88% |
| VTL-TU8-24W-1500mm | 24W | ≥85% |
Optical Parameter
Item No. | Color Temperature(K) | Luminous Flux(lm) | Beam Angle(degree) | CRI |
| VTL-TU8-9W-600mm | 6000-6500 | 900±5% | >120 | >80 |
| 4000-4500 |
| 2800-3200 |
| VTL-TU8-14W-900mm | 6000-6500 | 1500±5% | >120 | >80 |
| 4000-4500 |
| 2800-3200 |
| VTL-TU8-18W-1200mm | 6000-6500 | 1800±5% | >120 | >80 |
| 4000-4500 |
| 2800-3200 |
| VTL-TU8-22W-1500mm | 6000-6500 | 2300±5% | >120 | >80 |
| 4000-4500 |
| 2800-3200 |
Any require for our LED lighting, warmly welcome your inquiry!
