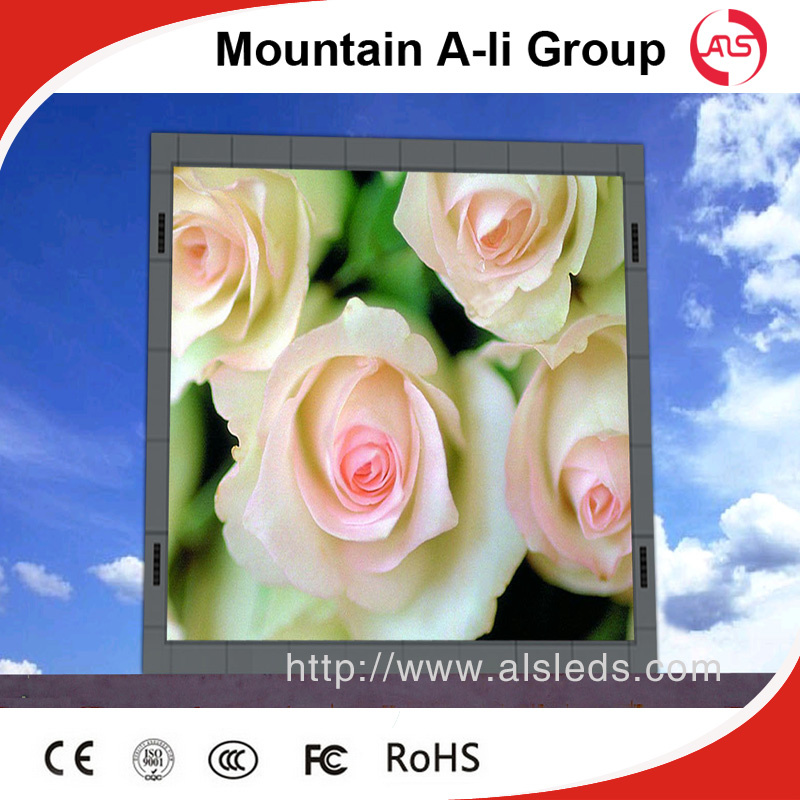

The Technical Parameters of Outdoor p8 led screen Dip 3 in 1
Item | Parameter |
---|
Product model | P8 Full Color Led Module |
Module size | 256mm*128mm |
Pixel pitch | 8mm |
Pixel density | 15625dots/m2 |
Pixel configuration | 1R1G1B 3 in 1 |
Module resolution | 32dots(W)*16dots(H) |
Maximum power consumption | 25W |
Module thickness | 2.8cm |
Module weight | 0.55kg |
Driving method | Constant current driving |
Scan mode | 1/4 scan |
Interface type | HUB75B |
Brightness | ≥7500cd/m2 |
The specifications of cabinet |
|
Cabinet size | 768mm x 768mm |
Module quantity | 18pcs |
Power supply | 5V/40A 5V/60A |
Cabinet resolution | 96*96dots |
Optimal viewing distance | 8m~50m |
Optimal viewing angle | 160°(W) 120°(H) |
Temperature | Storage:-35ºC~+85ºC Working:-20ºC~+50ºC |
System operating humility | 10%-95% |
The specifications of power supply |
|
Operating voltage | AC220V±10% |
Average power consumption | 300W/H |
Maximum power consumption | ≤600W/ |
Current | ≤20mA(single LED) |
The specifications of control system |
Computer | Pentium4 or above |
Operating system | WIN98/2000/NT/XP |
Control model | Synchronization with PC |
The specifications of the main technical parameters |
|
Driving device | Constant current driving |
Refresh rate | ≥600Hz |
Grey scale | RGB each 256 grade, can display 16.7M colors) |
MTBF | ≥9000hours |
Power switch | Automatic Switch |
Display mode | 800*600/1024*768/1280*900 |
