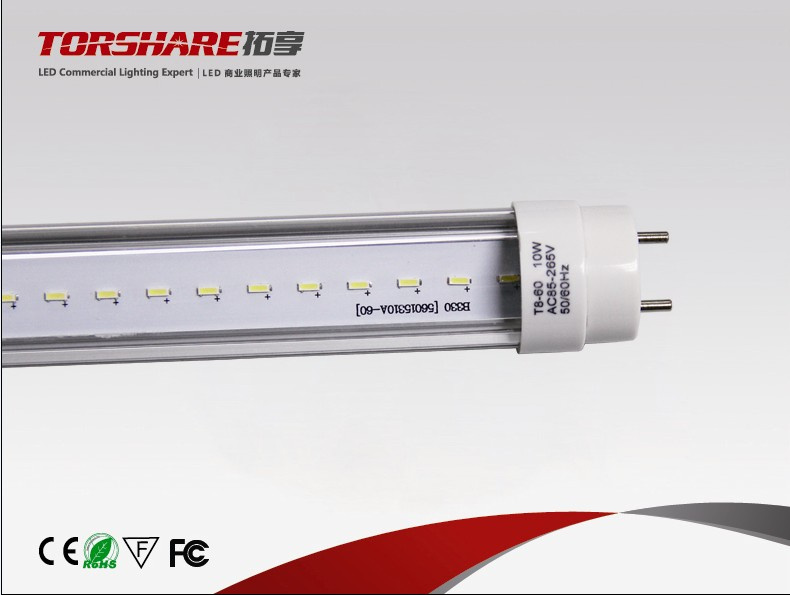

Advantages:
1) Super bright, up to 2550lm(24W);
2) Double isolated inner-transformer, and high Power factor ≥ 95%;
3) New designed End-cap: Both removable and rotatable function;
4) Good heat dissipation, long life span up to 50, 000hrs;
5) Weight is slight, easy for installation
|
Absolute Maximum Rating at TA= 25º C |
|
Parameter |
Symbol |
Absolute Maximum Rating ( T8-N8W-60/90/120/150 ) |
Unit |
|
Working Voltage |
V |
AC85-265V |
V |
|
Power Dissipation |
PD |
8 / 10 / 12 / 16 / 18 / 20 / 22 |
W |
|
Electrostatic discharge |
ESD |
800 |
V |
|
Operating Temperature |
Topr |
-20 _ + 50 |
º C |
|
Storage Temperature |
Tstg |
-30 _ + 60 |
º C |
|
Electrical / Optical Characteristics at TA= 25º C |
|
Length |
Part No. |
Color |
Color Temp. |
Lumen |
Power |
CRI(Typical) |
Viewing Angle |
|
60cm |
T01/ T8-N8W -60 |
Cool white |
5000-6000K |
840 lm |
8W |
78 |
120 ° |
|
T01/T8-N8WW-60 |
Warm white |
3000-3500K |
680 lm |
8W |
75 |
120 ° |
|
T09/T8-N8W-60 |
Cool white |
5000-6000K |
1055 lm |
10W |
78 |
120 ° |
|
T09/T8-N8WW-60 |
Warm white |
3000-3500K |
898 lm |
10W |
75 |
120 ° |
|
90cm |
T03/T8-N8W-90 |
Cool white |
5000-6000K |
1225 lm |
12W |
78 |
120 ° |
|
T03/T8-N8WW-90 |
Warm white |
3000-3500K |
1032 lm |
12W |
75 |
120 ° |
|
120cm |
T04/T8-N8W-120 |
Cool white |
5000-6000K |
1680 lm |
16W |
78 |
120 ° |
|
T04/T8-N8WW-120 |
Warm white |
3000-3500K |
1450 lm |
16W |
75 |
120 ° |
|
T05/T8-N8W-120 |
Cool white |
5000-6000K |
1895 lm |
20W |
78 |
120 ° |
|
T05/T8-N8WW-120 |
Warm white |
3000-3500K |
1665 lm |
20W |
75 |
120 ° |
|
150cm |
T06/T8-N8W-150 |
Cool white |
5000-6000K |
1875 lm |
18W |
78 |
120 ° |
|
T06/T8-N8WW-150 |
Warm white |
3000-3500K |
1750 lm |
18W |
75 |
120 ° |
|
T07/T8-N8W-150 |
Cool white |
5000-6000K |
2150 lm |
22W |
78 |
120 ° |
|
T07/T8-N8WW-150 |
Warm white |
3000-3500K |
1950 lm |
22W |
75 |
120 ° |
Founded in 2006, Torshare Ltd. Is one of the biggest manufacturers of LED-related products in China, which is specialized in researching, developing, engineering and marketing of LED products. Occupied by 12, 000 square meters, 200-250 staff, due to good quality and perfect after sales service, Torshare Ltd is enjoying high reputation. It is located in the center of Chinese LED, Shenzhen Shiyan Town, where is about 30 minutes drive from Hong Kong, and 15 minutes drive from Shenzhen Airport, we welcome any group or person to visit our factory.
Our products cover a wide range, such as LED Tube Light, LED downlight, LED spotlight, LED panel light, High power series, LED Sign, Strips, Modules, OEM etc. We are specially proud of our OEM business since we have many professional engineers who have worked in the field of LED for over 10 years. Highly trained workers make sure our products are in 100% good quality. Professional sales follow up with our customers at any time. According to our advantages, we have witnessed our rapid development. Right now, our annual export sales topped $13.5 million in 2010, a 60% increase from the previous year.
We have one set of strict Quality Inspection System. Our 15 QC staff monitor the entire production process to ensure our product quality meets your requirements. We use advanced temperature testers, luminance testers and photoelectric instruments to conduct strict testing such as voltage withstand, shock proof and salt spray tests. All our operations are ISO 9001: 2008-certified. Our qualification rate is above 99.5%. All our products comply with CE standard and the RoHS Directive.
Under the common effort of all staff; We fully believe we will do better and better in the following days.
