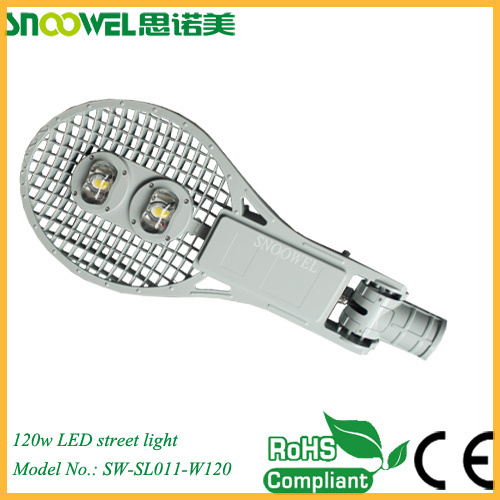

Main features of this 120w led street light:
This is the newly designed item;
The heat dissipation of this body is very good, and the lumen decay is very low; this is one of the hottest item in 2013
Specifications of this 120w LED street light:
1. Model No.: SW-SL011-W120;
(80w, 100w, 120w can be made with this design)
2. Operating voltage: AC85-265V, AC277V;
3. Lumens: 100-110LM / w;
4. IP65, can be used outdoor directly;
5. With 2 pieces 60w COB led array; BridgeLux 45MIL led chip, highly bright, low lumen decay;
6. UL listed Mean Well driver;
7. PF: over 0.97;
8. Certificates: CE, RoHS;
9. Warranty: 3 years.
Warranty:？3 years(we can also offer led street light with 5 years warranty)
1). If？driver？failed, we'll？send？new？driver for replacement;？
2). If？LED？failed, we'll？send？new？LED for replacement;？
3). For unclear？reasons, we？will？replace the full set for you;
All？freight？at？our？side.
？
About us:
1. 9 years experience in exporting and manufacturing outdoor & indoor led lightings;
2. ISO factory with over 400 well-trained staffs;
3. Rich experience in public lighting projects, especially outdoor led lighting projects;
4. Main products: led street lights, led high bay lights, led tunnel lights, led floodlights, led tubes, led panel lights, etc.
5. Tell me your requirement, our team can work out a best solution for you.
|
ITEM: |
SW-SL011-W120 |
|
Input Voltage: |
85-265V, AC277V |
|
Frequence Range: |
50-60Hz |
|
Power Factor: |
>0.97 |
|
LED working Voltage: |
DC30~34V |
|
LED quantity: |
2 pieces 60w COB led array |
|
Led Consumpution: |
120w |
|
Total System Consumpution: |
132w |
|
Led Initial Flux: |
>12000Lm |
|
Color Temperature: |
Warm white(2700-3500K), Pure white(4000-5500k), Cool White(6000-7000K) |
|
Color Rendering Index: |
Ra>78 |
|
Beam angle: |
120 ° |
|
LED Junction temperature: |
<50°C |
|
Working Temperature: |
-40 °C ~+55 °C |
|
Working Life-span: |
50000hours |
|
Certificates: |
CE(EMC, LVD), RoHS, FCC, IP65 |
|
Gross weight: |
|
|
Packing size: |
|
Shenzhen Snoowel Technology Co., Ltd is a professional manufacturer and exporter of LED lighting products, including high power LED street lights, outdoor LED flood lights, LED high bay lights, LED tunnel lights, T8 LED tubes, LED bulb lights, LED spotlight, LED down lights, LED ceiling lights, LED panel lights, LED pl lamp etc.
Since our establishment, we have been focusing on the development of eco-friendly & energy saving products, and never forgot to make them better. Now we have first class engineers and technologists, first class labs, and first class equipments and testing machines, which guaranteed that the products from our factory will be impeccable. With most advanced Auto "ASM" machines, Auto Light and Color-division machines imported from Germany and USA, we have improved our production efficiency and products quality dramatically. Now our multi chip products have won many rewards, and successfully installed in many big projects in both China and overseas. Snoowel Technology firmly follows the procedure of ISO9001: 2000, and always persists in human-based management, human-based design. Our goal is to creat a better lighting world at lower cost.
We welcome the inquiry from customers in any part of the world, and will always offer best products at most competative prices. Meanwhile, we could work together with our all of our customers, and find best solutions for your lighting projects.
