Thermal conductive black silicone sheet for LED / CUP
Specifications
1. High thermal conductivity
2. low thermal resistance
3. Stable performance
4. Low hardness
5. Easy to use
Applications:
1. LED lighting, lighting equipment
2. Household appliances, LCD display
3. Semiconductor and the radiating fin between
4. Communication product, intelligent mobile phone, tablet computer
5. Desktop computer, notebook and other portable computer
6. Large power supply etc.
Product Details :

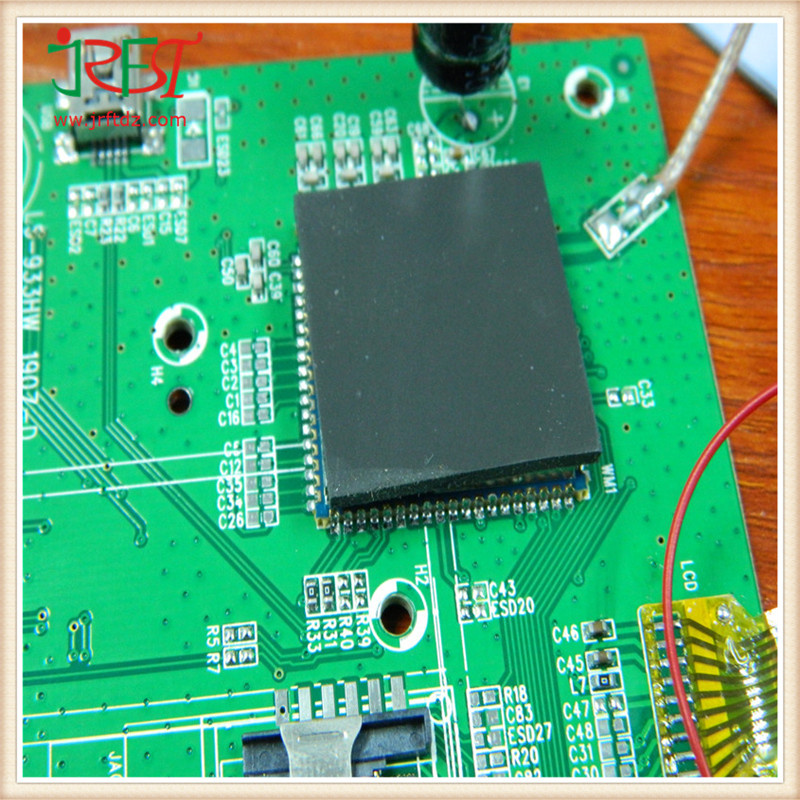

Thermal conductive black silicone sheet has excellent thermal conductivity and electrical insulation performance, in addition , it can meet the requirements of heat conducting and insulating radiating occasions with higher. At the same time, this product has the self adhesive, simple and convenient application. It's using silica gel itself the soft and elastic characteristics , place in the power heating device and heat dissipating structure parts, make the heat generated by the power module , effectively transmit to radiating parts, cooling system.
| Test Item | Product | Test Method |
| Model NO. | PM150 | -- |
| Thickness | 0.3~10mm | ASTM D 347 |
| Color | Blue / Grey | Visual |
| Continuous Use Temperature | -50~200 °C | TAG + DMA |
| Dielectric Breakdown Votage | 4.5KV ↑ | ASTM D 149 |
| Hardness | 20±5 | ASTM D 2240 |
| Thermal Conductivity | 1.2 w/m.k | ASTM D 5470 |
Performance and characteristics:
1.High thermal conductivity, heat transfer coefficient 2.6W/m-k
2.Stable performance , low thermal resistance, effectively improve the heat transfer rate
3.Low hardness, its viscosity high, easy to use adhesive
4.By UL and V-O certification standards
Product specification:
Size : 1mm * 30mm*30mm
Product standard size 310mm*310mm, 200mm*400mm according to customer needs cutting type The basic thickness 0.25mm*5.0mm, special size and thickness can be customized The product itself is slightly viscous, if need to strengthen the adhesive can be according to customer' requirement. Product color is mass production , if need special color can be adjusted according to the actual situation .
Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.
Our Main Products: Thermal conductive filler material, high thermal conductive silicone sheet, thermal silicone cloth, silicone heating sheet(pad), ACF conductive film, thermal conductive double-sided tape, thermal conductive graphite, thermal silicone encapsulants, thermal ceramic, NFC Ferrite sheet, wave absorber material, thermal grease /paste, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.
Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed GSG and UL certifications.
High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
