rgb led display/led display sign outdoor
specification:
Part Number |
HERO-ODS4F-4S |
Resolution |
16(H)×16(V) |
Pixel Pitch |
10mm |
LED Configuration |
1R1PG1PB DIP346 |
Pixel Density |
10000 pixels/ m2 |
Module Size |
160*160mm |
Driving IC |
MBI5024 |
Driving Method |
1/4 Scan, Constant Current |
Cabinet Weight |
45kg/sq.m. |
Mechanical Ratings |
Hanging Weight Support |
2T |
Surface Flatness |
0.1mm |
Optical Ratings |
Brightness |
8500cd/ m2 |
View Angle |
110°/70° |
Gray Scale |
16 bits |
Display COLOR |
281 Trillion |
Brightness Adjustment |
0~100% |
Power Supply |
Operation Power |
110V /60Hz ,220V/50Hz |
Max. Power Consumption |
350W/ m2 |
Average Power Consumption |
150W/ m2 |
Control System |
Control Mode |
Synchronous display with control PC by DVI |
Frame Update Frequency |
60~85Hz |
Screen Refresh Frequency |
300~1000Hz |
Gamma Correction |
-5.0~+5.0 |
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode |
1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction |
Pixel, Module, Cabinet |
Environmental |
Operating Temperature |
-20°~+60° |
Operating Humidity |
10~95% RH |
Operating Life |
100,000hours |
MTBF |
10000hours |
Protection Level |
~ |
Out of Control Rate |
<0.02% |
Description:
1.It has pass the EMC & TUV standard and certification.
2.Energy saving we use the 3.8V low-voltage Meanwell powersuply,at the same brightness,it can save 15~25% energy,tje power consumption would be 300W/sq.m Max and 150W/sq.m Ave.
3.Most cost -efficiency,price is 50~100% lower than the same level products.
4.Each powersuply and receive cards was wrapped up by the aluminum box,it's much more save and better anti-interference.
Applications:

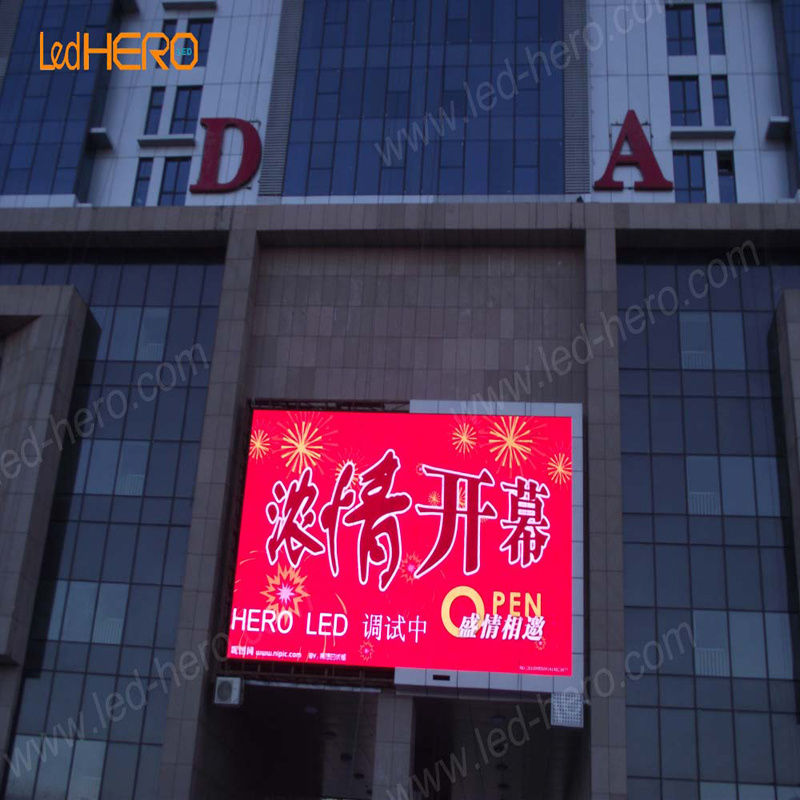

Widely used inbanks, shopping malls, theaters, commercial streets, stores, hotels, municipal public buildings, landmarks and other advertising.
Packing and transportation
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
About Hero
7-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.
After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
For more led information about p10 led display moudle with high performance ,welcome to our officer website:www.led-hero.com
