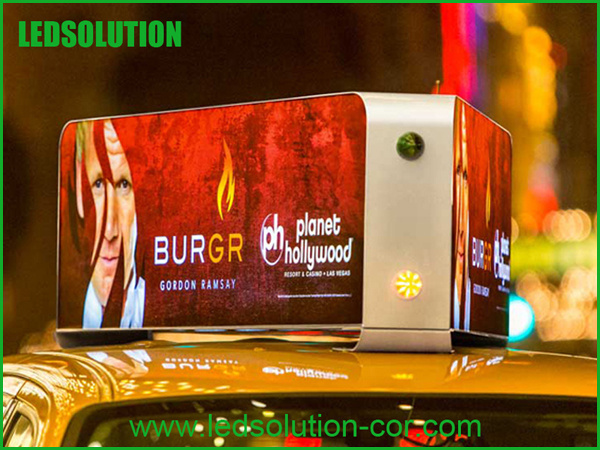

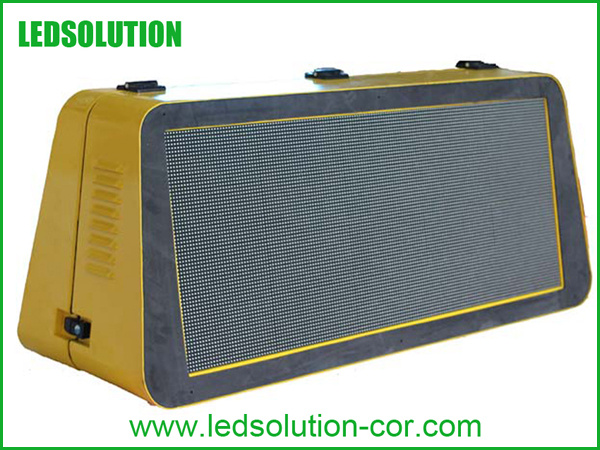

Taxi LED Display
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Led screen car advertising
1. Good consistency
2. Vivid image effect
3. Big viewing angle display
4. Led screen car advertising
|
Parameter |
Value |
|
Pitch |
5mm |
|
Brightness |
2,500nits |
|
Color temperature |
6,500 deg. K |
|
Viewing angle – Horizontal (50% brightness) |
140(-70 ~ +70) deg. |
|
Viewing angle –Vertical (50% brightness) |
140(-70 ~ +70) deg. |
|
Panel weight |
19kg |
|
Panel size |
W960mm*H320mm |
|
Housing size |
W1040mm*H480mm*D300 |
|
Panel design |
Double face |
|
Panel material |
Aluminum |
|
Panel color |
Silver/yellow/cutomized |
|
Weather protection |
IP65/65 |
|
Operating temperature range |
-30 to +60 deg. C |
|
Humidity operating |
RH 10% ~ 90% |
|
Pixel type and configuration |
3in1 SMD |
|
Resolution per panel |
192*64pixel |
|
Dot per panel |
12,288 |
|
Dot per sq. meter |
40,000 |
|
LED per sq. meter |
40,000 |
|
Recommended minimum viewing distance |
3.8m |
|
Recommended best viewing distance |
4~12m |
|
Colors |
281 trillion |
|
Grey scale (linear) |
65,536 levels per color |
|
Contrast ratio |
1,000:1 |
|
Processing depth |
16 bit |
|
Video frame rate |
60 Hertz |
|
Display refresh rate |
180~3,000 Hertz |
|
Input voltage (nominal) |
9~36V |
|
Input power frequency |
50 to 60 Hertz |
|
Input power (max) |
1,200W |
|
Input power (typical) |
480W |
|
Lifetime (50% brightness) |
≥100,000 |
|
Red wavelength (dominant) |
620~625 nm |
|
Green wavelength (dominant) |
520~525 nm |
|
Blue wavelength (dominant) |
470~475 nm |
|
Multimedia data format |
DVI,MPG,AVI,WMV,RM etc. |
|
Controller |
Asynchronous |
|
Data interconnection |
USB/3G wireless |
|
Mounting system |
Fixed with bolts |
| Prod Model: |
LS-TX-P5-0.96mx0.32m |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pitch: |
5mm |
| Brightness: |
2,500nits |
| Panel Weight: |
19 Kg |
| Panel Size: |
W960mm*H320mm |
| Housing Size: |
W1040mm*H480mm*D300 |
| Panel Material: |
Aluminum |
| Weather Protection: |
IP65/65 |
| Pixel Type And Configuration: |
3in1 SMD |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Certification: |
RoHS |
| Application: |
Taxi Top |
| Pixel Pitch: |
5mm |
| Pixel Density: |
40000 |
| Average Power Consumption: |
750W/Sqm |
