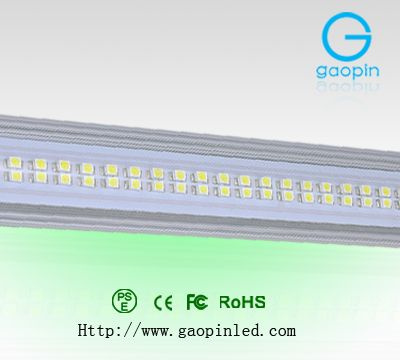

Item No: T8-3528 SMD
Features:
1) Working Voltage: AC85-300V; Main material: Aluminum+PC
2) Total: 250 PCS for 1.5 meters, 200 PCS super bright LEDs for 1.2meter and 150 PCS for 0.9 meters 100 PCS for 0.6 meters
3) Light output: Max output: W: 1750lm, M: 1450lm
4) Ambient Temperature: -20~40 degrees Celsius
5) Power Consumption: Max 20W
6) Diameter: 26mm, length: 60cm/90cm/120cm/150cm, Net weight: 0.497kg for 120cm
7) Can be directly placed in conventional T8 or T10 fluorescent brackets, remove ballast and starter before replacement!
8) Color temperature: 5500K~6000K, 4000K~4500K, 2800K~3300K
9) High performance SMD LED: Low light degradation, up to 75% lumen maintenance after 35.000 hours operating
10) Zener Diode applied to avoid full set of LEDs defect
11) Special artwork: Anodize aluminum back hoursing
12) Plastic end caps ensure to pass 4000V HI-POT test
13) Unique thermal management: Aluminum back casing dissipate the inside heat efficiently
14) High power factor: 0.95
Applications:
Replacement for conventional fluorescent tubes, Indoor use
| Item No | Wattage(W) | LED quantity | Luminous flux(LM) | Dimension(mm) |
| GP-L05BGAB | 5w | 72 | 306-432 | 343*26 |
| GP-L06BGAB | 6W | 108 | 459-648 | 600*26 |
| GP-L08BGAB | 8W | 144 | 612-864 | 600*26 |
| GP-L09BGAB | 9W | 171 | 726-1026 | 600*26 |
| GP-L10BGAB | 10W | 189 | 945-1134 | 900*26 |
| GP-L12BGAB | 12W | 216 | 918-1656 | 1200*26 |
| GP-L15BGAB | 15W | 276 | 1173-1380 | 1200*26 |
| GP-L18BGAB | 18W | 330 | 1402-1650 | 1200*26 |
| GP-L22BGAB | 22W | 384 | 1657-2311 | 1200*26 |
| GP-L25BGAB | 25W | 432 | 1836-2590 | 1500*26 |
| GP-L33BGAB | 33W | 600 | 2550-3600 | 2400*26 |
Shenzhen Gaopin Semiconductor Lighting Technology Co., Ltd., located in Shenzhen, China, is a high-tech enterprise which is engaged in designing, researching, producing, and selling all kinds of LED, LED lighting products, LED energy saving lights, LED tubes. We have a high quality and professional team. We imported abroad complete automatic producing devices, which can ensure our products are of high quality and competitive price.
In the efforts of all the colleagues, our company have successfully certificated with the ISO9001: 2000 quality system certification standard. Our products has passed CCC, CE, ROTHS, UL certification and obtained national intellectual property (practical and new patent ZL200820092090.1 and design patent 200830101731.0)
At the present, with an extensive salas and distribution network in China and o list of long-term customers from Europe, the Americas, Asia, Australia and Africa. We provided many kinds of constant current LED fluorescents with different powers and specifications. GAOPIN becomes the LED fluorescent experts and leads the green lighting pioneer. Let GAOPIN light the world. LED lights are colorful, super -high illumination, longer life, environmental, energy saving, and they are meeting the requirement of green life.
GAOPIN has always been dedicated to the user good quality products and excellent service is that in the future, will further enhance product development and quality continue to improve and perfect the major pre-sales and after-sales service, be sure to meet the needs of every consumer, full lighting to create a new type of modern enterprise. GAOPIN will accompany you at a bright future!
