Energy star ul led ceiling light 15W/18W/22W/36W with dimmable and sensor
Item | Symbol | 12"/300 | 14"/350 | 16"/400 |
Rated Power | W | 15W | 15W | 18W | 22W | 35W |
Product Code | Standard ON/OFF |
|
|
|
|
|
Dimmable |
|
|
| D |
|
Micro-wave |
|
|
|
|
|
LED Type/Qty | 0.2W SMD2835 | 84pcs | 84pcs | 108pcs | 132pcs | 264pcs |
Luminous Flux | Lm | typ.1300 | typ.1300 | typ.1600 | typ.1900 | typ.3500 |
Input Voltage | V | AC90-277V/50-60HZ | AC100-240V/50-60HZ |
Power Factor | PF | PF>0.95 |
Color Temprature | TC(K) | WW:2500-4000K,NW4000-5000K PW:5000-6000K, CW:>6000K |
Viewing Angle | Dgree | 120 degree |
LED forwarder current | mA | Constant 45mA |
Working Voltage | V | Constant DC36-40V |
Housing material | / | Aluminum+PC |
Protection Class | IP | IP20 |
Temprature | ºC | Operation:-10ºC~+40ºC Storage:-30ºC~+60ºC |
Life Time | h | 50,000 hours |
Warranty | / | 3 years |
Energy star ul led ceiling light Features:
1) We use high power LEDs, long life and less heat.
2) Self-developd constant-current power for power supply circuit greatly improve the stability
of our products.And the power is built in, increasing light-emitting area
3) Long Life: more than 50,000 hours
4) Extreme Efficiency: Over 80% more efficient than incandescent lighting
5) Good heat dissipation by unique heat-sink design
6) OEM, ODM, and customer design are available
7) Flexible Voltage: Use led ceiling lamp in AC100-240V environment
8) Reliable protection design, free from over-current, over-voltage, short-circuit, and overload risks
9) No Mercury Inside, No UV, No IR, good for your health
10) Flicker-Free Lighting: Eliminate eye strain and headaches..
Detailed Images
Led Ceiling light Pricture---- Every detail proves the high quality!!!

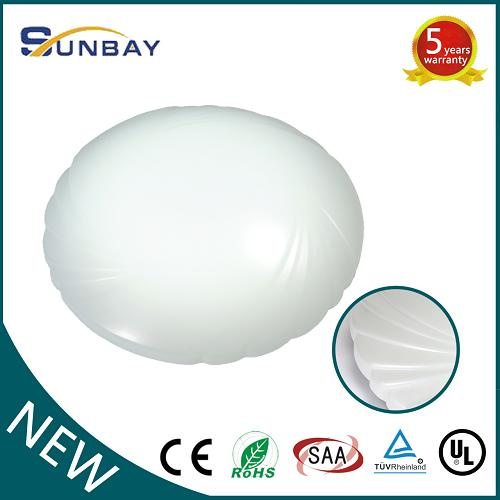

high quality surface mounted led ceiling light
Details of LED Ceiling Light:
1.LED source:Superbright SMD2835 leds, 0.2w/led.
2.Light efficacy: >75lm/w; PF>0.9
3.Wattage: 8w,16w,20w
4.Color: Pure White,cool white, commercial white,warm white
5.CCT: 5000-5500K,6000-6500K,3500-4000K,2800-3000K
6.Internal led driver,AC220V 50/60Hz
7.Material: Iron base+ ABS+PMMA
8.Delivery:10-15 days after order confirmed
9.Warranty: 3 years
10.Working temperature: 20-55 degree Celsius
11.Environment temperature: -20~50 degree Celsius
12.CE, RoHS approval
Features and LED Ceiling light:
1.Unique design for surface mount on wall or ceiling
2.Easy to install and maintenance
3.Nice looking appearance,soft lighting,no dazzling, No RF interferenc
4.Widely use for bedroom,bathroom,showroom etc.
5.light weight: Unique cooling structure, greatly reduce the weight distinctive appearance design, durable in use.
6.Good safety: Solid light source, no air, no glass.
7.Benefit to environmental protection: No heavy metal in scraped products
Different types of LED Ceiling Lights
1.7W LED ceiling light
2. Epistar or Edison chip
3.3 years warranty
4. Low light decay
5. CE RoHS certifications
LED ceiling light
PC cover is available
Energy saving products
1. CE, RoHS approved
2.3 years quality warranty
3. Voltage: AC 100-240V/ 50Hz, 60Hz
4. Color Temperature: Warm white / cool white
5. Installation: Wall/ ceiling mounting
6. Beam angle: 120°
Features:
1) We use high power LEDs as light source with high brightness, long life and less heat.
2) Self-developd constant-current power for power supply circuit greatly improve the stability of our products. And the power is built in, increasing light-emitting area
4) Extreme Efficiency: Over 80% more efficient than incandescent lighting
5) Good heat dissipation by unique heat-sink design
6) OEM, ODM, and customer design are available
7) Flexible Voltage: Use LED ceiling lamp in AC100-240V environment
8) Reliable protection design, free from over-current, over-voltage, short-circuit, and overload risks
9) No Mercury Inside, No UV, No IR, good for your health
10) Flicker-Free Lighting: Eliminate eye strain and headaches
11) Having got CE, RoHS certifications
Application:
1. Supermarket mall (especially freezers): Environmental protection without infrared, few heatness, high color rendering index, can not only protect food, but also show the true color of it;
2. Schools and offices: Safe and reliable, no flickering, downy and pure light, which can relieve visual fatigue effectively and protect eyes. No ultraviolet, no damage to human skin;
3. Hospitals, municipal building, square and other lighting places needing energy conservation and environmental protection;
4. Household decorative lighting, replace old-fashioned incandescent lamp and energy-saving lamps.
Model NO.: | XD07-P07W-B1 |
Light Sources: | 112pcs SMD3528 |
Input Voltage: | 110-240VAC 50/60Hz |
Power Consumption: | 7W |
Output Lumen: | 650lm |
Beam Angle: | 120° |
Color Temperature: | 2700-8000K |
Color Rendering Index: | > 80 |
Life time: | > 50000Hours |
Protection Rating: | Indoor use only |
Color light: | Cool white, Warm white, Pure white, Red, Green, Bule |
Dimension: | ¢ 300xH90mm |
Material: | Aluminum base, PMMA cover |
Conversion Efficiency | > 85% |
Ambient Temperature: | -20º C-50º C |
Foshan Sunbay Opto Electronics Co., Ltd is a high-tech company which specializes in developing, manufacturing and selling various LED lighting, engaged in both LED Diode Package and LED Lighting products.
We have an R&D department with more than 20 engineers, who have more than 7 years' experience in the field of LED lights. On the basis of many years' research, with the advantages of high light efficiency, high color rendering, low brightness declining and easy heat dissipation, our LED lights have got several national PCT patents.
We have an excellent sales team, advanced research and development experiment and imported production and testing equipment. Sunbay carries out ISO9001: 2000 international quality management system standards strictly, and the products passed the domestic and foreign authoritative organizations' authentications, such as 3C, CE and RoHS, SAA, TUV and UL. We provide products covering SMD 3528, 5050, 3014 and 3020, high power LEDs, LED bulbs, LED tubes, LED panel lights, LED spotlights, LED downlights, and so on.
We regard "sincerity, harmony, innovation and win-win" as our management concept and "reliability, practicability and competitive price and quality" as the product design concept, to provide our customers at home and abroad with high quality products, good service and competitive price. We started our business from LED Diode Package, and have been engaged in LED Lighting production gradually in the latter years. All of these make us master the core competence in LED industry.
