Ritop LED panel light series:
All our LED panel light using Samsung, Lumenmax LEDs, 5630 or 3014 SMD, with high lumen output.
Driver type: Exterior driver, with high efficiency > 0.88, high power factory > 0.96, have CE, SAA, UL, ETL certificates.

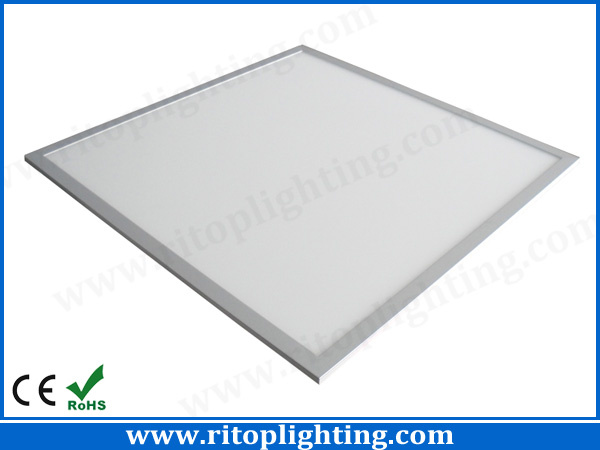

Samsung 5630 SMD super slim LED panel light, LED panel light expert, with full range of specification, high lumen efficiency and perfect lighting effect, available size: 300*300, 300*600, 300*1200, 600*600, 600*1200, 620*620, 150*1200, 200*200.
Our Advantages:
1. Good Warranty Policy: All our products have 3 years warranty. If any problems occur during the warranty time; We will help to find out the problem, and replace the defective parts for free, or replace the whole lamp for free.
2. Low Defective Rate: We have strict control from the raw material purchasing to final delivery to keep our product defective rate under 1%.
3. Multiple Patents Owned: We have multiple patents of our LED tube light, panel light, flood light and street light. With our special and dedicated design, our products can, makes your sales at your local place easier.
Product Specifications:
1. Power: 40 W LED
2. Type & Quantity: 88 PCS 5630 SMD LED
3. Item Number: RT-PL-6060N40
4. LED Chip Brands: Samsung 5630 / Specified
5. Dimension: 595*595*12mm
6. IP Rate: IP 52
7. Frame Color: Silver / White
8. Install Ways: Recessed, Surface mounted, Suspended
9. Warranty: 3 years
10. Life Span: 40, 000-50, 000 hours
11. Material: PMMA light guide plate, diffuser, Aluminum frame, Reflector
Electrical & Optical Parameters:
1. Light Efficiency: >88%
2. Input Voltage: AC 100~240V /50/60Hz
3. Power Factor: >95%
4. Driver Type: Constant current driver
5. Light Decay: 2-3%
6. Lumen Output: 3600-3800 LM (@6500K)
7. Color Temperature: 2700-6500K
8. Color Rendering Index: >80 (@6500K)
9. Beam Angle: 100-120 degree
Other Details:
1. Package: 4PCS/carton Available
2. Customize: Dimmable, Customize Size
3. Certificates: CE, RoHS
4. Available Accessories: Dimmer, remoter controller, others
|
Full LED Panel Light Series |
|
Item Number |
Dimension |
Watts |
Color Temp |
LED type |
LED Q'ty |
Lumen output |
Power Factor |
|
RT-PL-0303N24 |
295*295*12mm |
24 W |
2700-6500K |
5630 SMD |
24 pcs |
1700-1900 lm |
>95% |
|
RT-PL-0303N36 |
36 W |
2700-6500K |
5630 SMD |
88 pcs |
2700-2900 lm |
>95% |
|
RT-PL-0606N36 |
595*595*12mm |
36 W |
2700-6500K |
5630 SMD |
88 pcs |
2700-2900 lm |
>95% |
|
RT-PL-0606N40 |
40 W |
2700-6500K |
5630 SMD |
88 pcs |
2900-3200 lm |
>95% |
|
RT-PL-0606N48 |
48 W |
2700-6500K |
5630 SMD |
100 pcs |
3600-3800 lm |
>95% |
|
RT-PL-0606N54 |
54 W |
2700-6500K |
5630 SMD |
120 pcs |
4000-4300 lm |
>95% |
|
RT-PL-0606N72 |
72 W |
2700-6500K |
5630 SMD |
176 pcs |
5400-5700 lm |
>95% |
|
RT-PL-6262N48 |
620*620*12mm |
48 W |
2700-6500K |
5630 SMD |
104 pcs |
3600-3800 lm |
>95% |
|
RT-PL-0306N36 |
295*595*12mm |
36 W |
2700-6500K |
5630 SMD |
88 pcs |
2700-2900 lm |
>95% |
|
RT-PL-0312N36 |
295*1195*12mm |
36 W |
2700-6500K |
5630 SMD |
88 pcs |
2700-2900 lm |
>95% |
|
RT-PL-0312N40 |
40 W |
2700-6500K |
5630 SMD |
88 pcs |
2900-3200 lm |
>95% |
|
RT-PL-0312N48 |
48 W |
2700-6500K |
5630 SMD |
100 pcs |
3600-3800 lm |
>95% |
|
RT-PL-0312N54 |
54 W |
2700-6500K |
5630 SMD |
176 pcs |
4000-4300 lm |
>95% |
|
RT-PL-0312N72 |
72 W |
2700-6500K |
5630 SMD |
176 pcs |
5400-5700 lm |
>95% |
|
RT-PL-0612N54 |
595*1195*12mm |
54 W |
2700-6500K |
5630 SMD |
176 pcs |
4000-4300 lm |
>95% |
|
RT-PL-0612N72 |
72 W |
2700-6500K |
5630 SMD |
176 pcs |
5400-5700 lm |
>95% |
