| Price: | US $ 288/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |

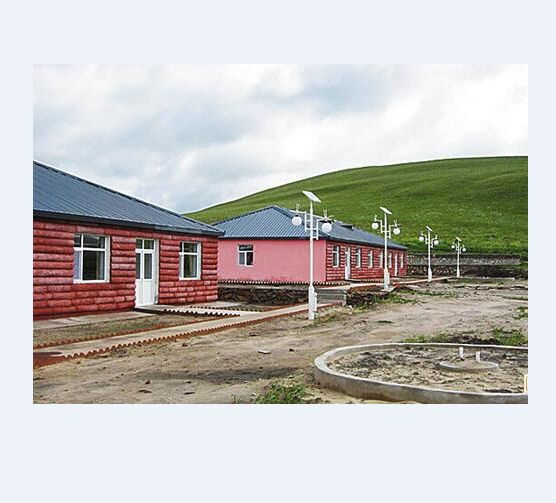

| 5W double arm solar LED street light | 5W/12V LED lamp *2 |
| 40W/12V solar panel | |
| 5A/12V charge controller | |
| 50AH/12V GEL battery | |
| 80 type underground battery box | |
| 4m galvanized pole with brackets. |
| Detailed technical parameter for 5W double arm solar garden light | |||
| Working Time:6 hours/day, 3 rainy or cloudy dasy backup | |||
| Component Name | Technical Parameter for components | ||
| 5W/12V LED lamp | LED Power: | 5W | |
| Power Voltage: | DC12V | ||
| Total Lums: | 600lm | ||
| Color Temperature: | 6500K | ||
| Illumination: | 4M≥15Lux | ||
| LED Quantity: | 1W*5PCS | ||
| Luminous efficiency: | 140~150Lm/W | ||
| CRI: | >80 | ||
| IP Protection: | IP65 | ||
| Illumination Area: | 5*4M | ||
| LEDs chip: | BridgeLux from USA | ||
| Light transmittance: | ≥90% | ||
| Size: | 300MM | ||
| Weight: | 1.5Kgs | ||
| 40W/12V Solar panel | Nominal Power(W): | 40W/12V | |
| Type of cell: | Mono or Poly | ||
| Encapsulation: | Glass/EVA/Cells/EVA/TPT | ||
| Cells efficiency: | 17.88% | ||
| Maximum power(W): | 21.5W | ||
| Voltage at max power(VMP): | 17.49V | ||
| Current at max power(IMP): | 2.29A | ||
| Open circuit voltage(VOC): | 21.67V | ||
| Short circuit current(ISC): | 2.64A | ||
| Dimension(MM): | 456*670*30MM | ||
| Weight(KGS): | 5.0KGS | ||
| 5A/12V charge controller | Standard power: | 5A/12V | |
| Rated voltage(VDC): | 12V | ||
| Rated current(A): | 5A | ||
| Charge recommended max. current(A): | 5A | ||
| The biggest open-circuit voltage(V): | 50V | ||
| Charge(V) | Protection: | 14.4±0.2 | |
| Floating charge: | 13.2~13.6 | ||
| Restore: | 13.2±0.2 | ||
| Temperature compensation: | -13.2mV/ºC | ||
| Low voltage(V) | Disconnecct: | 10.8±0.2 | |
| Restore: | 13.2±0.2 | ||
| Over voltage(V) | Cut off: | 17.5±0.2 | |
| Restore: | 11.5±0.2 | ||
| Current without load (mA): | <10MA | ||
| Application ambient temperature: | -20ºC~+70ºC | ||
| IP Protect: | IP67 | ||
| Protect function: 1. Battery reverse connection protection 2. Solar panel reverse polarity connection protection 3. Over load and short circuit protection 4. Back flow from battery to solar module protection 5. Battery open circuit protection 6. Lighting surge protection(in case necessary) 7. Over-charging and over-discharging protection 8. LED display 9. Thunder strike protection; 10. Time control and light control. | |||
| 50AH/12V GEL battery | Nominal Voltage(V): | 12V | |
| Capacity(10HR,25ºC): | 50AH | ||
| Dimension | Length(MM) | 330MM | |
| Width(MM) | 170MM | ||
| Height(MM) | 180MM | ||
| Total Height(MM) | 180MM | ||
| Capacity 25ºC (77ºF) To 1.70V/Cell | 20 hr rate: | 52AH | |
| 10 hr rate: | 50AH | ||
| 5 hr rate: | 42AH | ||
| 1 hr rate: | 26AH | ||
| Weight(KGS): | 17.5KGS | ||
| 80 Type battery box | Material: | PP | |
| 4M glavanized pole | Standard height: | 3.5M | |
| Material: | Q235 | ||
| Diameter(MM): | 76MM | ||
| Thickness(MM): | 3MM | ||
| Hot dip galvanized thickness not less than 80um | |||
| Prod Model: | LTE-SGL-082 |
|---|---|
| Markets: | North America,South America,Southeast Asia,Africa,Mid East,Western Europe |
| Working Mode: | Turn on and off Automaticly |
| Style: | Countryside |
| Light Type: | LED |
| Material: | Stainless steel |
| Technics: | Electroplating |
| IP Rating: | IP65 |
| Warranty Period: | 3 Years |
| Voltage: | 12V |
| Certification: | ISO9001 |
