Input voltage: 100V/120V/200V/220V / 230V/240V AC, 50/60Hz
Total Power: 180W @ 220V

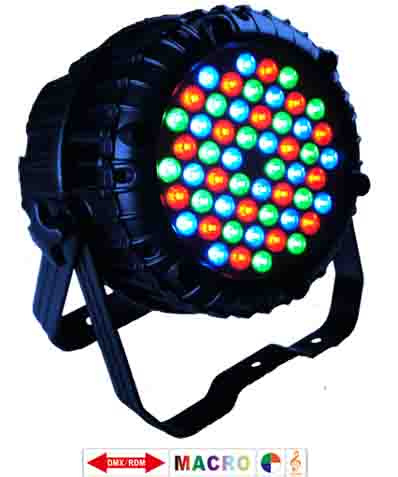

LED source: High power LED FF5433A: 54 x 3W(18R+18G+18B)
FF5434A: 54 x 3W(12R+18G+18B+6W)
Dimming: 0-100%
Strobe: 1-20Hz
Beam Angle: 15/25/30/45 °
Control mode: International standard DMX512 signal,
3-pin interface with RDM control protocol.
Compact Mode 3 / 4 channel expansion
Mode 8 / 9 Channel, sound, master-slave
Synchronization mode, 12 built-in chase,
10 user chase, Built-in chase and user
Chase can be called directly using the
Control channel, running speed Degree by the
Speed of channel regulation.
Other features: DMX channel mode, operating mode status,
User chase can be
Synchronous transmission.
Housing and protection: High strength die-cast
Aluminum, IP65
Operating temperature: -20 ° C - 40 ° C
Fufeng Lighting Equipment Co., Ltd. mainly engaged in the development and production of lighting equipment, welcome OEM / ODM.
