TECHNICAL PARAMETERS |

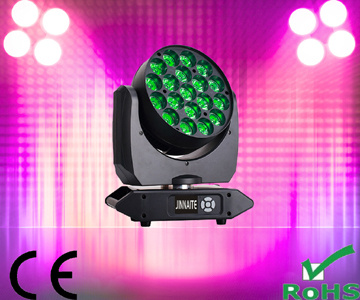

Model | 19pcs Wash Moving Head Light | Control Mode | DMX512, RDM, Stand-alone mode ,Voice Control mode , Mater-Slave mode , Wireless DMX512. |
Voltage | AC100V~240V/50~60Hz | Channel | standard: 15 CH, simple : 9CH Extend 1: 23 CH Extend 2 : 27 CH |
Power | 270W | Display Menu | 1 , 2.4 inches TFT touch screen , Chinese and English two version language. |
LED chip | 19pcs *10W , RGBW 4 in 1 LED chip | 2 ,display board can record device's using time , show device's temperature, channel data and software version . |
LED life span | 50000 hours | 3 , Edit the procedure |
Lens degree1 | 8 degree , facula angle : 10 degree (standard) | Other feature | 1 , Extend IP address function , each IP address maximum can set 64 ID |
Lens degree2 | 22 degree, facula angle : 32 degree( selective) | 2 , Support DMX signal priority identification, when lose the signal it would be turn into Black , default scene , Automatic function etc according to setting |
Color system | RGBW marco color system | 3 , Remote control function: control the procedure, speed etc function by the remote controller when the product under the condition without signal . 4, software upgrade : upgrade software by XRL cable |
Strobe | 1 -30 times/ second electronic strobe and random strobe | Outlooking | adopt ABS anti-fire plastic |
Dimmer | 65536 class dimmer | Light size | 322×242X345.5(mm) |
Pan/Tilt | Pan: 540°/2 seconds, Tilt : 180°/1.2 seconds | Carton Size | 412×287X525(mm) |
|
| N.W / G.W | 8.5KG / 11.1KG |
