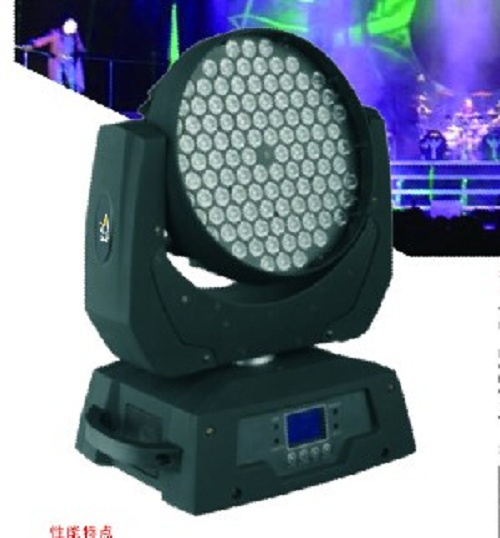

108pcs3w RGBW led Moving head stage light
Specifications:
Products Name: 108*3W & 96*5W LED Moving Head Light
. Item No.: LED-M108 & LED-M9605
. Voltage: AC 90-130V/180V-245V, 50/60Hz
. Lamp: 108*1W /3W(30R+30G+30B+18W)
96*5W(15R+27G+27B+27W)
. Rated Power: 150W/400W/480W
. Control Signal: DMX 512/Master-slave/ Auto/Custom/Sound Control
. Channel: 14CH (RGBW) DMX512 channel control
. Color: 16.7 million kinds of colors changes
. Blue background LCD display
. 3-pin or 5-pin DMX connectors
. Dimensions: 460 × 335 × 385 mm
. N/G Weight: 11/12kg
. LED Life time: 100000 Hours
. RGBW linear color mixing
. Linear color temperature correction from 2700K to 8000K
. 0-100% linearly adjustable
. Electronic Strobe 0 ~25F. P. S
. PAN(0° ~4500° ) and TILT(0° ~270), User-selectable Pan/Tilt ranges
. DMX512, 3 pins interfaces RDM Control Protocol
. 10channels in short mode, 15channels in standard mode, and 20 channels
. In extended mode Master/Salve Synchronous
. DMX512 / Master-Slave / Auto / Custom / Sound
. Flame retardant engineering plastic shell/cast aluminum, housing IP20
. WORK ENVIRONMENT TEMPERATURE: -10° C~40° C
Why choose our LED moving head lights?
It's one of our best selling item.
Very low noise, stable quality with amazing effects, once you check Our lights, you will love them. Own program, good quality for each Parts, power supply, motors, PCB, housing etc, even package. So, no Need to worry about quality. Our quality won't let you down. As we Never make low quality products. Welocme company who care about Quality! Keep aways from rubbish products! Trust us! Choose us!
| Voltage | AC90-240V, 50-60Hz |
| Light Source | 108*3W, 27R+27G+27B+27W |
| Color changing effect | Fabulous color mixing with highly and uniform distribution of brightness and light output |
| Power consumption | 400W |
| Lifespan | 50000hrs |
| Beam Angle | 25°( 15°, 30°, 45°, 75°for options) |
| Pan/Tilt | X axis 540°, Y axis 270°, 16bit fine-tuning, smooth and precise positioning |
| Dimmer | 0-100% smooth adjustment |
| Strobe | High speed electronic strobe, 1-18tims/s, with pulse effect |
| Feature | Control panel with LED display, built in macro colors can be trigged via DMX channel |
| Thermolstat | Built in thermolstat for overheating protection |
| Working Temp | -20°- 50° |
| Packing size | 380*350*450mm |
| N.G/W | 11/12kgs |
| Channel | 14CH |
| Control mode | DMX512, Sound active, Auto and Master-slave modes |
| Structure | Streamline fashionable PC engineering Plastic of after once casting, LCD display |
| IP rate | IP20 |
| Certification | CE, RoHS |
| (European Union)wire | (United states)wire | Line | Mark |
Brown
light blue
yellow/green | Black
White
green | live line
null line
earth wire | L
N |
