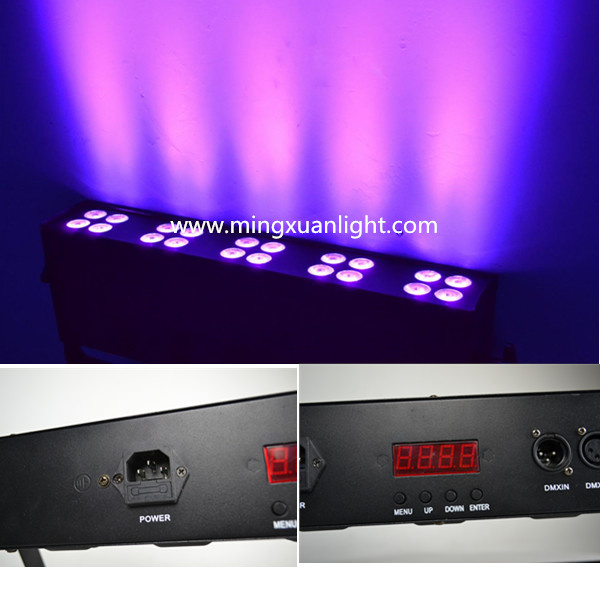

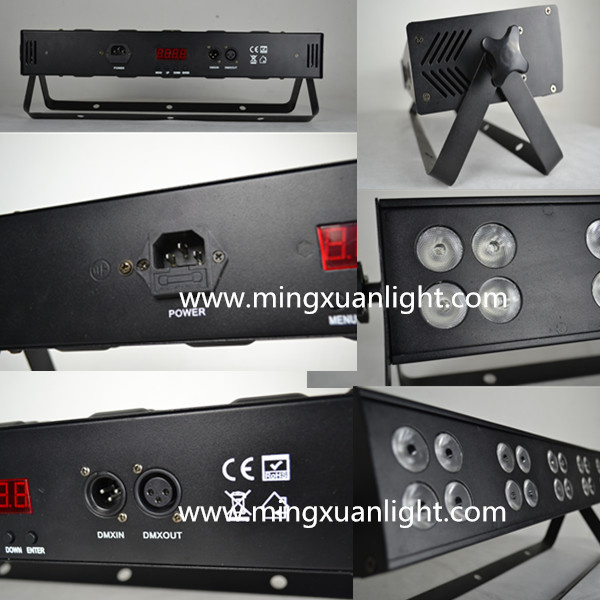

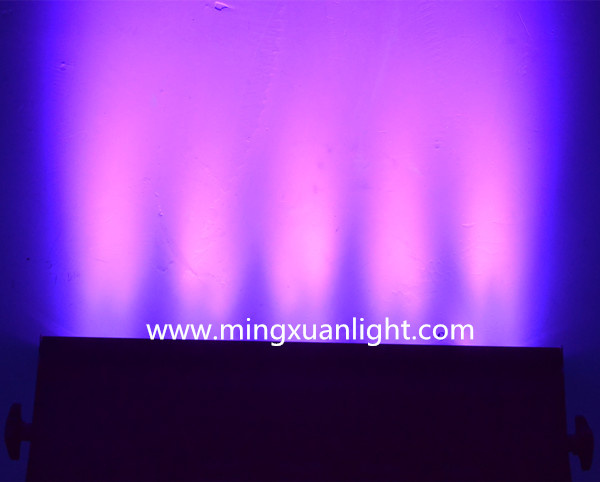

16pcs 3w stage effect led uv black bar light with dmx Features:
- Built-in auto and custom programs recalled via DMX and Master/Slave
- Wonderful UV effects
- 3-pin DMX input/output connections(5-pin optional)
- 16-bit dimming of master dimmer and individual colors
- Selectable, smooth dimming curves for programming versatility
- LED display with password protection
- IP33 rated dust protection
- Simple and complex DMX channel profiles for programming versatility
- Double-bracket yoke doubles as floor stand
- 3W UV LEDs
Specifications:
- DMX Channels: 4
- Data Connectors: 3-pin XLR(5-pin optional)
- Light Source: 16*3W UV LEDs,100,000 hours life expectancy
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 25°(15/45/60°optional)
- Power Cable Length: 1.0m standarel(customer designed optional)
- Input Voltage: 100-240 VAC, 50-60 Hz (auto-ranging)
- Power: 80W
- Weight: 3.5kg
- Dimensions: 36*18*6cm
- Approvals: CE,RoHS,FCC
Accessories
- Power line: 1 piece
- DMX Signal line: 1 piece optional
- Users manual: 1 sheet
Cautions
- Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
- Unplug mains lead before opening the housing!
- To prevent fire or shock hazard,do not expose this fixture to rain or moisture!
- This fixture must be earthed!
- Do no try to repair it when the circuit is out of order, send it back to your supplier to repair!
Technical Parameters1.Great for performance stages, theatrical productions and special effects installations
2.Electronic power supply AC 90-240V 50/60HZ
3.full Master/Slave operation in any operational mode,
4.color strobe effect and long life operation
5.black housing with 16*high MCD 3W UV LEDs, ultraviolate
6.producing various colors,red,green,blue, yellow,white,pink,purple,cyan
7.low heat,Long Life LEDs (100,000 hrs.)
8.operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave
9.Color strobe effect slow to fast, electronic dimming from 0-100%
10.Uses 5 DMX Channels
11.Stand Alone,Master/Slave
12.Linkable via 3-pin XLR cable,hanging brackets included
13.Dual brackets allowing fixture to be hung or set on the ground
14.4-digital LED display
15.ITEM DIMENSION: 32*6*18CM
16.ITEM WEIGHT:3KGS
| Channel 1 | UV(ultraviolet) color from small to big brightness (dimmig) |
| Channel 2 | strobe from slow to fast |
| Channel 3 | dimmer,color macro |
| 0-30 | dimmer on at ch1 |
| 31-255 | color macro, the brightness can be adjusted by the master dimmer at ch1 |
| Channel 4 | dimmer, increasing brightness, then decreasing brightness, colors following one by one |
| 0-85 | dimmer on at ch1/ch2/ch3/ch4 |
| 86-169 | increasing brightness, then decreasing brightness, the running speed can be adjusted by ch8 |
| 170-255 | color following one by one, the running speed can be adjusted by ch8 |
| Channel 5 | running speed adjustments
|
Effect
Trade Term
MOQ: 2 PCS
Price Term: EXW, FOB
Lead Time: Sample order: 1-2 working days
Big order: 3-15 working days(depends on the order quantity)
OEM: Acceptable
Shipping method: By express(FedEx, DHL, UPS), by sea, by air
Warranty: 1 year
