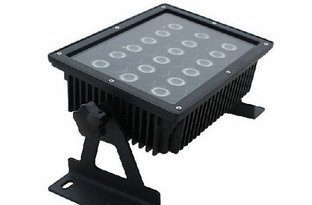

Square LED Wall washer
54W LED Wall washer, RGBW LED Wall washer, High power LED Wall washer, LED Wall washer, IP65 LED Wall washer
Our LED wall washer adopt high power 1w LED as light source, so it is high-efficiency, colorful, and long in lifespan, meanwhile, the cover is light and the heat-dissipation is good, and it's easy to be installed and water-proof is another advantage. Above all, it is a best choice used in the decoration of architecture.
Modes
The square wall washer has 2 buttons and LCD window which can make choice for 13 kinds of different lighting modes, and it can also be controlled by outer DMX controller box to make different color changing.
1. Push the left and right buttons to choose the lighting effect
2. Digital LCD window can show the command for different lighting effect
H-1: Static red color
H-2: Static green color
H-3: Static blue color
H-4: Static cyan color
H-5: Static yellow color
H-6: Static purple color
H-7: Static white color
H-8: Jump changing with red, green, blue.
H-9: Jump changing with red, green, blue, cyan, yellow, purple, white
H-A: Gradual changing with red, green, blue
H-B: Gradual changing with red, green, blue, cyan, yellow, purple, white
H-C: Run after from red, green to blue
H-D: Flashing frequently for red, green, blue (3 times for each color)
001~512: DMX address (accept DMX signal)
Connection port:
One input power port:
One DMX signal input port, 3-pin waterproof female tie-in
One DMX signal input port, 3-pin waterproof male tie-in
Remark
1) The product should be used in accordance with the environment requirement
2) Set one as a host, the others set as address mode when many sets wall washer working together.
3) Set all the lights to the address mode(001-512), instead of the master internal control mode when the multiple connectors receive the command of DMX signal.
4) Setting the same address code, the lighting change with the same effect;
5) To ensure the transmission of the DMX signal is reliable, when lighting connecting beyond 100M, should increase amplifier to enlarge the DMX signal.
The input and output port should meet the requirements, otherwise it will damage lighting
|
Part No. |
Size |
Color |
Voltage |
LED q'ty |
IP rank |
|
SU-SQ-24*1W-220V |
302*226*170mm |
W |
AC90-265V |
24pcs *1W |
IP65 |
|
SU-SQ-24*1WW-220V |
WW |
|
SU-SQ-24*1R-220V |
R |
|
SU-SQ-24*1G-220V |
G |
|
SU-SQ-24*1B-220V |
B |
|
SU-SQ-24RGB-220V |
302*226*170mm |
RGB |
AC90-265V |
24pcs* 1W |
IP65 |
