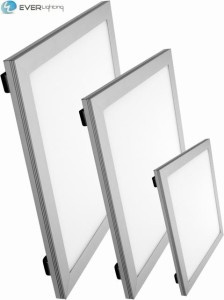

Square Led Panel Light
Our led panel lights adopt super bright LED as its luminous body. The anodized aluminum frame is stylish and fashionable with everlasting color. It is powered by low voltage constant current driver, which is safety, energy-saving and long life. Excellent thermal management can effectively guarantee the LED's long-term stability. The front panel board is high translucent acrylic, which ensures the light even, soft and high transmittance.
Benefits of led panel:
Solid-state,high shock/vibration resistant
Instant start,No humming
No RF interference,No buzzing noise
No fluorescent flickering
No hazard of mercury or lead entering the environment
No danger of broken glass
Maintenance free,easy installation
Long lifetime,40,000+hrs
Low power consumption,high intensity
Model parameters:
ItemNo. |
Size |
ConsumptionWatt |
Input Volt. |
Lumen |
Led Qty |
|---|
LED-P4001-600*600-40W |
595*595mm |
40W |
110/220VAC |
3000-3350Lm |
192pcs |
LED-P4001-600*600-50W |
50W |
110/220VAC |
3850-4300Lm |
260pcs |
LED-P4001-600*600-32W |
32W |
110/220VAC |
2450-2700Lm |
156pcs |
LED-P4003-300*300-13W |
295*295mm |
13W |
110/220VAC |
900-1000Lm |
60pcs |
LED-P4006-620*620-40W |
620*620mm |
40W |
220-240VAC |
3000-3350Lm |
192pcs |
LED-P4006-620*620-50W |
50W |
220-240VAC |
3850-4300Lm |
280pcs |
LED-P4006-620*620-32W |
32W |
220-240VAC |
2450-2700Lm |
156pcs |
Instruction:
The installation is very easy, it can insert into the ceiling directly, and it also can be hanging down by using the lifting hole on the back.
Turn off the power.
connect the commercial power (100V-240V) with the input of the matched power supply, make sure that no copperware exposed.
Connect matched power supply and panel light together through the DC plug.
Fix the panel light and power supply at suitable place. 5. Turn on the power.
Ever Lighting Industrial Co., Ltd. is one of China's manufacturers and exporters of outdoor/indoor lighting fixtures and lighting sources. Our main products are die-cast aluminum lighting fixtures, such as floodlights, garden lights, bulkheads, down lights, etc. All of our products are mainly exported to Europe, South America, South Africa, the Middle East and Southeast Asia. Wish we have the honor to set good business relationship with you.
OEM orders are welcome.
