Specification
*CE, RoHS, ISO, UL, ETL certificates;
* 3-years warranty;
* High brightness;
* Easy maintenance ;
*Excellent after-sales services.
General

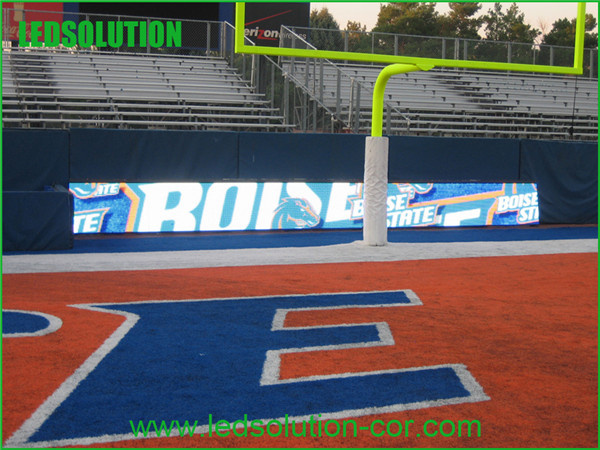

LEDSolution's Perimeter LED display is an effective and attractive display used in the stadium.It's favorable for sports live broadcast and commercial advertising.The display can be installed around the whole stadium.Advanced stadium software is used to manage the content of the display instantly.It can automatically calibrate the colors and adjust the color temperature, very user friendly.
Feature
*IP65 weatherproof standard,against harsh environment such as water, dust , and grass clippings;
*Convenient installation and software setup.No need to number the cabinets;
*Easy power and data connections, daisy chain used from one cabinet to the next for quick connection;
*Long viewing distance and wide viewing angle;
*Excellent flatness between cabinets, with claw lock system to link the cabinets;
*Impact resistance. Soft rubber mask facia to protect the screen from the players' impact and protect the players themselves;
*Stable performance and long lifetime.
Certificate
| Parameter | Unit | Value |
| Pitch | mm | 10 |
| Brightness | nits | 6,000 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 130 (+65/-65) |
| Viewing angle – Vertical (50% brightness) | deg. | 60(+30/-30) |
| Panel weight | kg | 80 |
| Panel width | mm | 1,280 |
| Panel height | mm | 960 |
| Panel depth | mm | 200 |
| Panel area | sq. m. | 1.2288 |
| Panel material |
| Epoxy paint coated Cold rolled steel |
| Panel Mode |
| Quick Assembly Cabinet with Bracket |
| Ingress protection (front/rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 1R1G1B |
| Resolution per panel |
| 128x96 |
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.
With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.
For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality
And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
