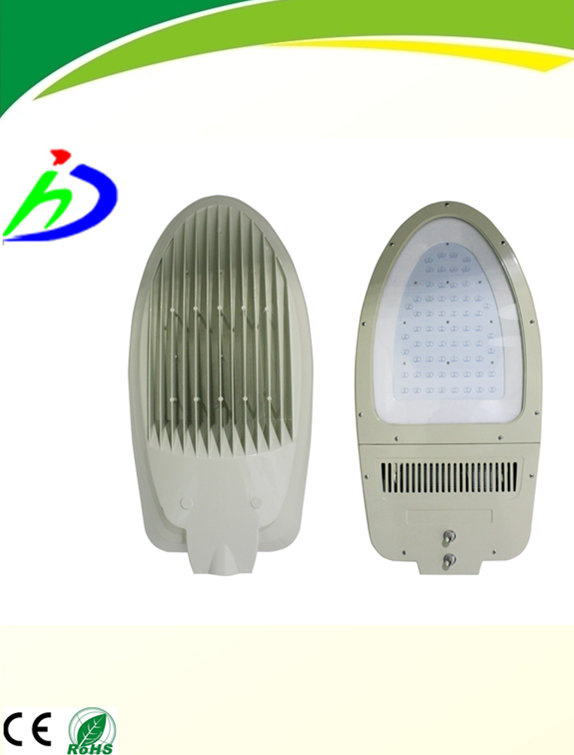

Solar street light ,LED street light
Description:
1. LED lighting shell is aluminum alloy extrusion shape .LED lighting radiator is manufactured &developed with Foxconn company and can assure high heat dissipation performance and longer working time .
2 Equipped imported top chips with unique encapsulation technology .Light uses anti-aging silicon rubber sealing belt. Anodizing surface and spray treatment, as a whole in line with the IP65 standard lamps.
3 Developed the constant flow current driver with Chinese Institute of Automation ,assure LED stable and reliable operation .
4 The lamp shade adopts 5mm toughened glass with high light transmission. And Making the lamp can be used in high temperature environments .
5 High-purity imported aluminum reflector is used to improve the reflectivity effectively and ensure the output of luminous flux.
Targeted to control the LED emitting light within the range needed to improve the uniformity of light and the utilization ratio of light energy , and highlighted the obvious energy-saving advantages of LED lamps.
6 Our LED lamps own independent intellectual property rights and many advanced technologies with high heat-conducting efficiency/higher heat transfer efficiency, low light deduction, pure light color and no overlap shadow etc.
7 Product design using LED cold light source which is environmental protection without thermal radiation and no lead, no mercury pollution elements ,no harm to eyes and skin. It realizes real green , energy-saving, environmentally friendly LED lighting .
8 Quick and flexible to install ,any angle is adjustable . it has advantages of wide universality and wide range of application.
9 Combination with solar panels gives full play to the advantages of LED DC low voltage and environmental protection , reaching the best cost-effective and higher reliability.
Application
Suitable for urban main road/ collector streets & subsidiary streets, express way ,bridge and back road (country road )etc. and any place needed lighting.
Type | HD-ST080-B1-K57 | HD-ST090-B1-K57 | HD-ST100-B1-K57 | HD-ST120-B1-K57 | HD-ST130-B1-K57 | HD-ST150-B1-K57 |
Rated power | 80W | 90W | 100W | 120W | 130W | 150W |
LED quantity | 33 | 37 | 41 | 50 | 56 | 64 |
LED type | CREE-XPG2 | CREE-XPG2 | CREE-XPG2 | CREE-XPG2 | CREE-XPG2 | CREE-XPG2 |
Color temperature | 5700K | 5700K | 5700K | 5700K | 5700K | 5700K |
CRI | 70 | 70 | 70 | 70 | 70 | 70 |
Beam angle | 120 | 120 | 120 | 120 | 120 | 120 |
Input voltage | 100-277ACV | 100-277ACV | 100-277ACV | 100-277ACV | 100-277ACV | 100-277ACV |
Frequency | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ |
Power factor | 0.98 | 0.98 | 0.98 | 0.98 | 0.98 | 0.98 |
LED luminous efficiency | 125LM/W | 125LM/W | 125LM/W | 125LM/W | 125LM/W | 125LM/W |
Lamp luminous efficiency | 78LM/W | 78LM/W | 77LM/W | 73LM/W | 82LM/W | 73LM/W |
Lamp efficiency | 0.92 | 0.92 | 0.92 | 0.92 | 0.92 | 0.92 |
IP | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
Working life | 50000h | 50000h | 50000h | 50000h | 50000h | 50000h |
Working temperature | -35ºC~60ºC | -35ºC~60ºC | -35ºC~60ºC | -35ºC~60ºC | -35ºC~60ºC | -35ºC~60ºC |
Humidity | 5%~10%RH | 5%~10%RH | 5%~10%RH | 5%~10%RH | 5%~10%RH | 5%~10%RH |
Material | Alluminum alloy | Alluminum alloy | Alluminum alloy | Alluminum alloy | Alluminum alloy | Alluminum alloy |
Size | 725*355*90mm | 725*355*90mm | 725*355*90mm | 725*355*90mm | 725*355*90mm | 725*355*90mm |
Net weight | 9.8kg | 9.8kg | 10.05kg | 10.15kg | 10.15kg | 10.25kg |
