Description:

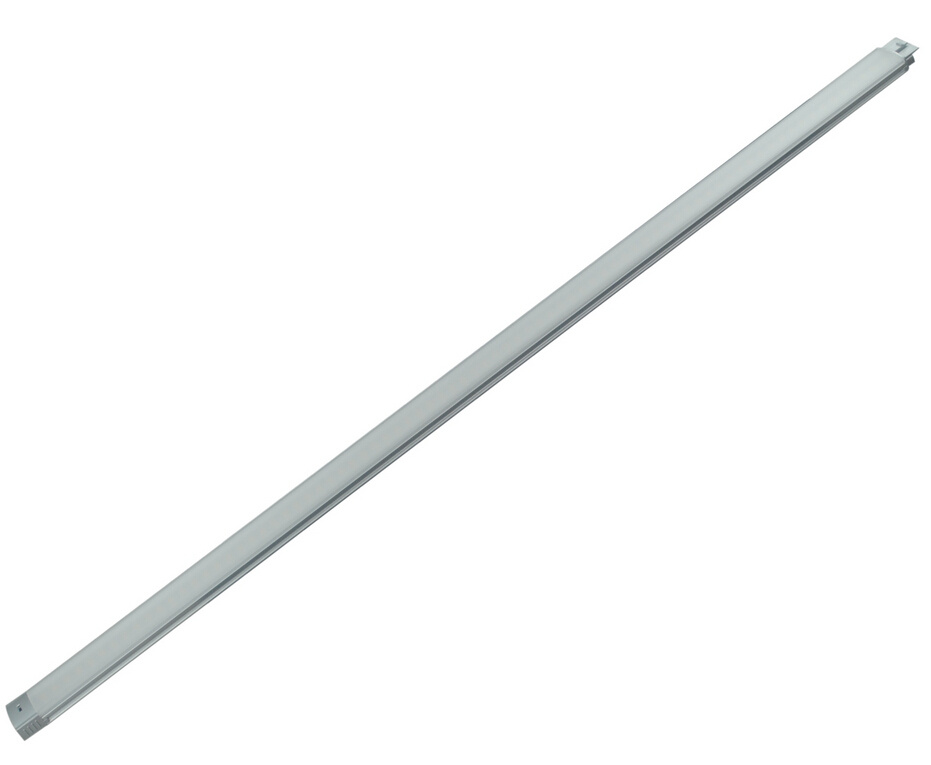

Constructed of a central PCB with mounted SMDs(triple chips) encased in a aluminum track and clear PC tube, the Top LED tube light is compact, lightweight and designed for a variety of applications.
Features:
Unique and high efficiency heat sinking design with T5 aluminous alloy;
Easy to be extended to any length by connecting directly or by splice connection cord;
4pcs, 9pcs, 24pcs and 48pcs TOP LEDs are available for choice;
10cm, 20cm, 50cm and 100cm are available for choice;
Input voltage: 24V
Viewing angle: 120degree
IP53, only for indoor uses;
CE/ROHS compliance;
Non-ultraviolet and infrared rays, no radiation, no electromagnetic interference, green, no harmful elements such as mercury and lead;
Specifications:
Model | Length | Power | LED Qty | Lumen(white) |
| SL-YG20A18WD2 | 10cm | 1.5W | 18pcs | 100~135lm |
| SL-YG20A36WD2 | 20cm | 3.0W | 36pcs | 200~270lm |
| SL-YG20A48WD2 | 30cm | 4.0W | 48pcs | 250~330lm |
| SL-YG20A78WD2 | 50cm | 6.5W | 78pcs | 430~500lm |
| SL-YG20A156WD2 | 100cm | 12.5W | 156pcs | 800~900lm |
|
| LED Type: | SMD 3528 LEDs |
| Input Volotage: | DC24V |
| Color Temp: | White(5500-6500K), Pure White(4000-4500K), Warm White(2800-3200K), R/G/B |
| Beam Angle: | 120°C |
| Material: | 6063 Aluminum + PC Cover |
| Cover: | Transparent/Froest |
| CRI: | >72 |
| Power Factor: | - |
| IP Rate: | IP44, Indoor Use only |
| Work Temp: | -20°C~+40°C |
| Storage Temp: | -40°C~+85°C |
| Humidity: | 5%-95% |
| Certificate: | CE, RoHS approval |
| Warranty: | 2 Years |
Absolute Maxium Rating
Parameter | Rating | Units |
| Aluminum Heat sink Temperature | 45 | °C |
| Operating Temperature | -20~+40 | °C |
| Storge Temperature | -20~+80 | °C |
| Equilibrium Temperature | 43 | °C
|
How To Install:
Applications:
Many customers around the world apply the Top LED tube light as under cabinets lighting, tradeshow displays, product displays, cove accents, cellaret, wardrobe, hotel decoration and many more.
