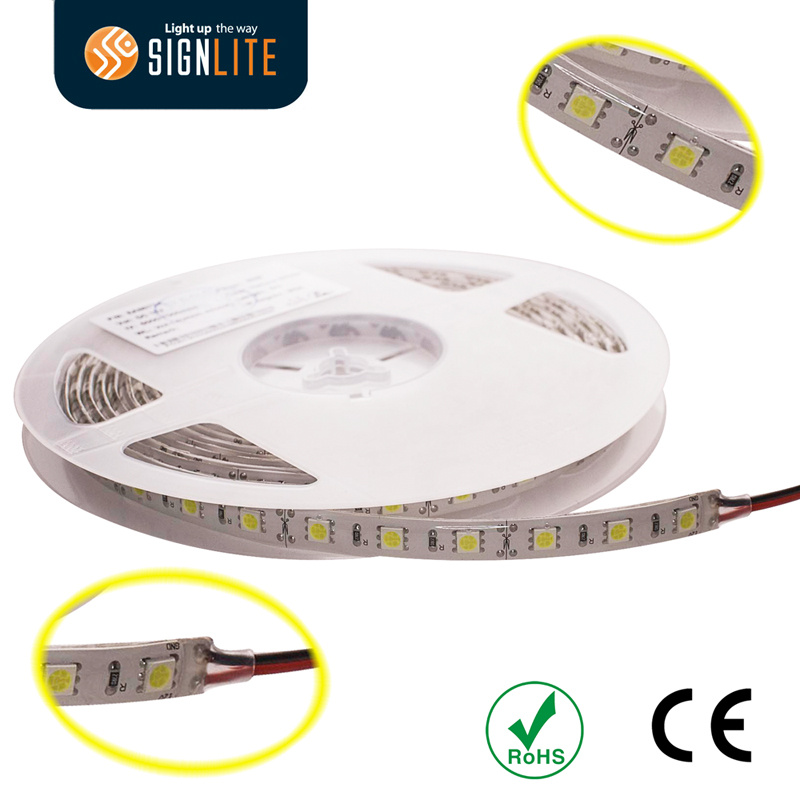

SMD3528 Flexible LED Strip Light with Epistar LED 3years gurantee
Article no.: RBW062A
Features
The thickness of the wires should be adopted based on the possible maximum current, length of wires(10m in maximum is recommended)and the loss in the wires during transit at low voltage
Two ends of connection should be done as waterproof
No touch in static, no work in electricity
The maximum length is 5m, no exceeding in connection
Quality power supply is recommended(with short circuit protection, high voltage and power load protection)
It can be cut at the mark of the connection and there will be no affect to its function
Parameter
3528 SMD, With 3M in the back, 60pcs per meter |
NON-WATERPROOF IP33 | PU resign WATERPROOF-IP65 | LED chip info | Operarting Voltage | Watt/meter (Max) | LED quantity (meter) | Color | Lumin/m | L*W*H(mm) |
RBR062A | EBR072A | Taiwan chip (6~7Lm per LED for white and warm white) | 12V | ≤6W | 60 | Red | 56.2 | 5000*8/10*2.2 |
RBY062A | EBY072A | Yellow | 96.4 |
RBM062A | EBM072A | Warm White | 378.7 |
RBW062A | EBW072A | White | 387.5 |
RBC062A | EBC072A | Cold White | 473.2 |
RBG062A | EBG072A | Green | 237.2 |
RBB062A | EBB072A | Blue | 82.6 |
3528 SMD, With 3M in the back, 120pcs per meter |
NON-WATERPROOF IP33 | PU resign WATERPROOF-IP65 | LED chip info | Operarting Voltage | Watt/meter (Max) | LED quantity (meter) | Color | Lumin/m | L*W*H(mm) |
RBR064A | EBR074A | Taiwan chip (6~7Lm per LED for white and warm white) | 12V | ≤10W | 120 | Red | 89 | 5000*8/10*2.2 |
RBY064A | EBY074A | ≤10W | Yellow | 136 |
RBM064A | EBM074A | ≤10W | Warm White | 576 |
RBW064A | EBW074A | ≤10W | White | 567.2 |
RBC064A | EBC074A | ≤10W | Cold White | 567.2 |
RBG064A | EBG074A | ≤10W | Green | 408.4 |
RBB064A | EBB074A | ≤10W | Blue | 128.6 |
5050 SMD, With 3M in the back,30pcs per meter |
NON-WATERPROOF IP33 | PU resign WATERPROOF-IP65 | LED chip info | Operarting Voltage | Watt/meter (Max) | LED quantity (meter) | Color | Lumin/m | L*W*H(mm) |
RAR070A | EAR070A | Taiwan chip (16~18Lm per LED for white and warm white) | 12V | ≤6W | 30 | Red | 115.56 | 5000*10*2.2 |
RAY070A | EAY070A | Yellow | 100.44 |
RAM070A | EAM070A | Warm White | 288.09 |
RAW070A | EAW070A | White | 306.81 |
RAC070A | EAC070A | Cold White | 297.63 |
RAG070A | EAG070A | Green | 184.23 |
RAB070A | EAB070A | Blue | 57.24 |
RAQ070A | EAQ070A | RGB | 12V | ≤6w | 30.00 | RGB | 127.8 | 5000*10*2 |
5050 SMD,With 3M in the back,60pcs per meter |
NON-WATERPROOF IP33 | PU resign WATERPROOF-IP65 | LED chip info | Operarting Voltage | Watt/meter (Max) | LED quantity (meter) | Color | Lumin/m | L*W*H(mm) |
|
RAR072A | EAR072A | Taiwan chip (16~18Lm per LED for white and warm white) | 12V | ≤12W | 60 | Red | 207.81 | 5000*10*2 |
RAY072A | EAY072A | Yellow | 170.19 |
RAM072A | EAM072A | Warm White | 624.6 |
RAW072A | EAW072A | White | 822.42 |
RAC072A | EAC072A | Cold White | 772.02 |
RAG072A | EAG072A | Green | 488.79 |
RAB072A | EAB072A | Blue | 170.82 |
RAQ072A | EAQ072A | Taiwan chip | 12V | ≤14.4w | 60.00 | RGB | 246.4 | 5000*10*2 |
Application
LED flexible strip with flexible and diversity of color, widely used in decoration of house, hotel, building, ball, plaza and so on.

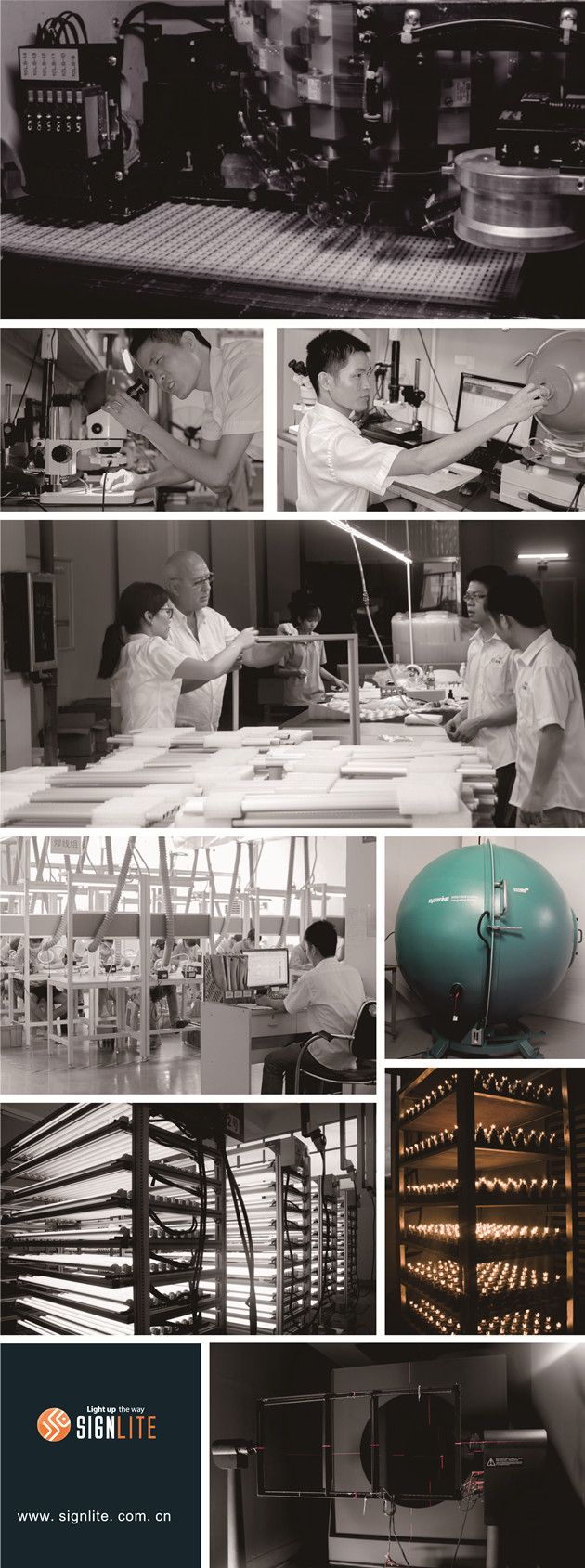

Company show
Signlite Opto-electronics Co., Ltd was founded in 2006, original from sunsignled, which regularly manufacture signage back lighting LED modules and strips, we now expand our business from signage to indoor commercial lighting, and we successfully make network of distribution partners in Germany, Russia, Italy, France, Netherland, Poland, Dubai, Turkey, India, Japan and so on.
We have ISO9001, UL, CE, RoHS, REACH certification, We ensures a strong production capability with stable and safe raw material supplier chain. We always support distributors high performance products. We always make stock of raw material and finished products upon distribitors' order frequency by high efficiency ERP sysytem to ensure fast shipment.
We always driven by two simple principles: employ the latest technologies to develop quality lighting products and take really good care of our customers.
Signlite can provide OEM services according to our partner in different area request, and provide different IC, PCB and solution for the relevant market level. Signlite respect our partners' profit at first place.
Signlite dedicates great attention to our partners and supply high quality products all over the world. Our SMD LED systems for commercial lighting, sign&decoration are tested and proven through 8 years of experience. Long-term cooperation with our customers, team work and cooperation is very important to us.
Signlite first decoration project start on 2008, which our German customer use LED strip in a hotel lobby of Radisson hotel. We are the queit and brilliant Chinese manufacturer work together with our distributor to win a lot of projects.
Signlite always making brilliant and bright LED lite for you! We really appreciate distributors all over the world participate us to make a brighter, economier, and more environmental earth!
