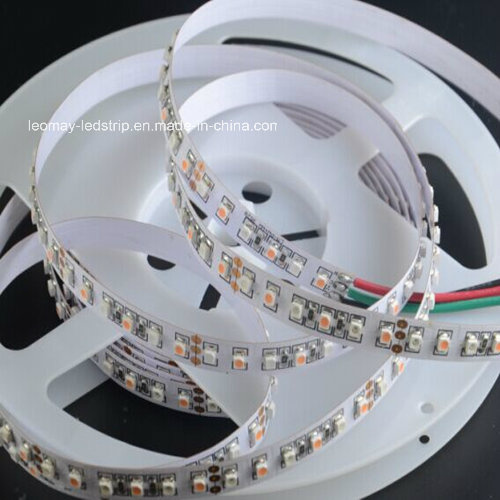

SMD3528 120D CCT Adjustable LED Strip
Product feature
1 The 5 meters a roll of double color, every 120 meters lamp, the theoretical power per meter 9.6W, Power rating:48W/5M ,angle light 120 degrees. 6-9lm of each light bead can be customized according to needed.
2 curved, soft, soft and compact, back with 3M double-sided adhesive can be installed in the concave convex surface, easy to install.
3 The use of double color temperature controller can freely switch wireless remote control lights two colors, adjustable brightness and switch each 5 or 10cm ,six or twelve beads can be used as a unit of shear, cut does not affect other parts. 5 meters in length can be adjusted according to production requirements.
low power consumption, low fever, no glare, impact resistance, energy saving and environmental protection.
4 can be customized to glue dust (IP65), (IP66), silicone casing waterproof glue waterproof (IP68);
5 LED Life time: Mean time between failure(MTBF):50-100K hour
Safety Information
- The strip itself and all its components may not be mechanically stressed.
- Assembly must not damage or destroy conducting paths on the circuit board.
- Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable electrical and safety standards. Only qualified personnel should be allowed to perform installations.
- Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
- Parallel connection is highly recommended as safe electrical operation mode.
- Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the strip.
- Please ensure that the power supply is of adapters power tooperate the total load.
- When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation points between strip and the mounting surface.
- Pay attention to standard ESD precautions when installing the strip.
- Damaged by corrosion will not be honored as a materials defect claim. It is the user's responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements
Model | LED QTY | Volt | Power | Lumen/m | CRI | PCB Width | IP Rate |
| LM3528-WN-120-CCT | 120 led/m | 12V | 9.6w/m | 720lm/m | 80 | 10mm | IP20/IP65/IP67/IP68 |
| LM2835-WN-120-CCT | 120 led/m | 24V | 24w/m | 2880lm/m | 80 | 10mm | IP20/IP65/IP67/IP68 |
| LM3014-WN-140-CCT | 140 led/m | 24V | 14w/m | 1680lm/m | 80 | 12mm | IP20/IP65/IP67/IP68 |
| LM5050-WN-36-CCT | 36 led/m | 12V | 8.864w/m | 720lm/m | 80 | 10mm | IP20/IP65/IP67/IP68 |
| LM3527-WN-120-W+WW | 120 led/m | 24V | 24w/m | 2880lm/m | 80 | 10mm | IP20/IP65/IP67/IP68 |
| LM3527-WN-120-RGB+W | 120 led/m | 24V | 19.2w/m | 1440lm/m | 80 | 11mm | IP20/IP65/IP67/IP68 |
Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting products.
Now Leomay products mainly cover LED Strip Light, LED Rope Light, LED Linear Light, LED Panel Light, LED Flood Light, LED Tube, LED Bulbs, LED Wall Washer etc. All of them are certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.
Meanwhile, Leomay has advanced LED luminaire manufacturing and test facilities such as Imported Panasonic Auto Soldering and SMD Machines, Programmable Constant Temp and Humidity Testing Machine, IP65 and IP68 Waterproof Production Lines, High and Low Temperature Test Chamber, Optical Testing Devices such as Everfine Integrating Spheres and Distribution Photometer.
Leomay will and always insists on the principle of ' Provide High Quality LED Light and Professional Service for All Customers', especially 3 years OEM service, we not only have lots of self-designed and private items, but also offer customized products, such as customers logo, packing, CRI 90 or CRI95, LM80 etc., which all completely follow CE, RoHS, EMC and UL standards.
Leomay products are highly recognized and sold very well more that 30 countries and regions, such as Germany, Austria, Swiss, Italy, Hungary, Slovakia, Croatia, Slovakia, Slovenia, Finland, Denmark, Spain, UK, Russia, Canada, US, Costa Rica, Brazil, Argentina, Singapore, Hong Kong, Taiwan etc.
As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.
