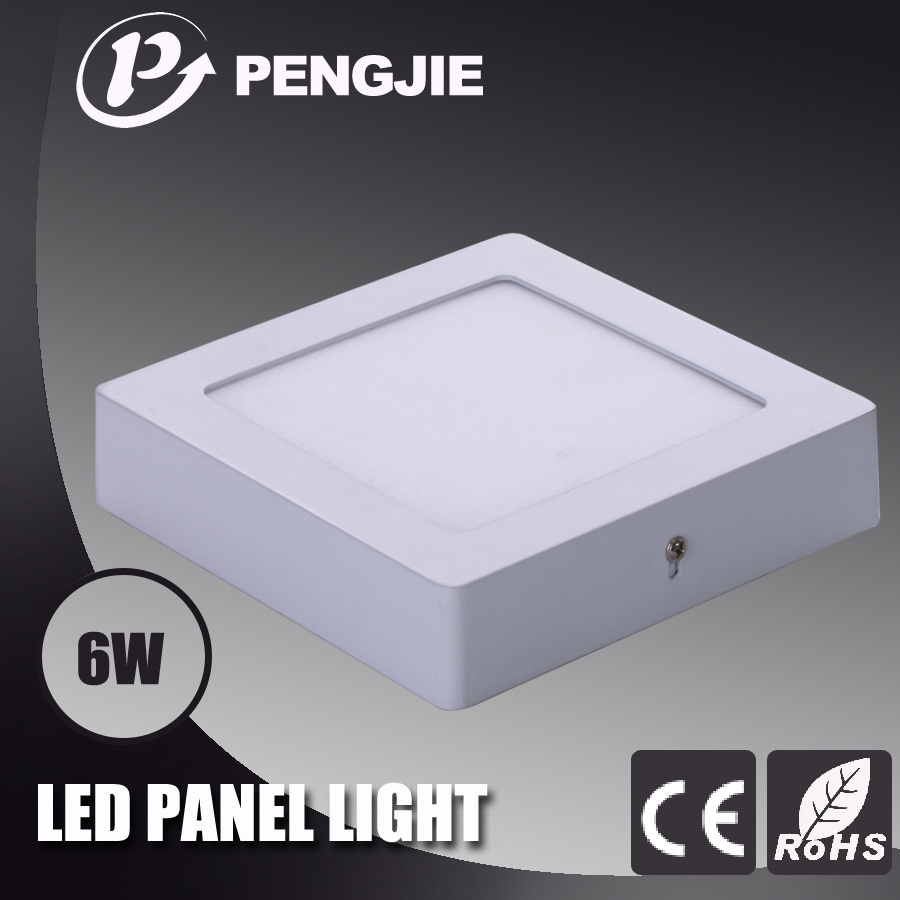

SMD2835 ADC12 Aluminum 6W Surface LED Light Panels
LED Panel Light introdution
New style embedded panel light,special design to prevent light leak. Make of supperior aluminum, perfect heat dissipation.
LED Panel Light Features
1.Using high lumen SMD light source high intensity aluminum shell,fast heating.
2.Using good reflectivity super thin, super bright LGP which make the lights more equally.
3.Low voltage and constant current driver, no glare the light is soft.
4.Launch in 0.01sec, no flashing, no noise, no radiation. Energy saving,and environmental.
5.This product can show high brightness, without seeing the lamp itself.
Parameter List
Mode No. | Power | Material | Chips | Color | CCT | LM/W | CRI |
Pj4036 | 6W | Aluminum | SMD2835 | White | 3000-6500k | 70lm-75lm/w | >80 |
Pj4040 | 6W | Aluminum | SMD2835 | White | 3000-6500k | 70lm-75lm/w | >80 |
Pj4037 | 12W | Aluminum | SMD2835 | White | 3000-6500k | 70lm-75lm/w | >80 |
Pj4041 | 12W | Aluminum | SMD2835 | White | 3000-6500k | 70lm-75lm/w | >80 |
Pj4038 | 18W | Aluminum | SMD2835 | White | 3000-6500k | 70lm-75lm/w | >80 |
Pj4042 | 18W | Aluminum | SMD2835 | White | 3000-6500k | 70lm-75lm/w | >80 |
Pj4039 | 24W | Aluminum | SMD2835 | White | 3000-6500k | 70lm-75lm/w | >80 |
Pj4043 | 24W | Aluminum | SMD2835 | White | 3000-6500k | 70lm-75lm/w | >80 |
LED Panel light Accessories
A.outer ring :GB 12#environmental-friendly aluminum is adopted and is overall die-caSt to take shape, with beautiful structural design.
B. diffuser plate:PS material from Japan Mitsubishi is used. The 1.5mm ultrathin diffuser pate has a light transmittance of up to 92%,and gentle light diffusion can effectively reduce fatigue and create the light environment.
C. Light guider:using Mitsubishi material, thickness 4mm with high precision laser dot, make the light even and comfortable, no dark space, can effectively protect the eyes.
D. reflective sheeting(round and fan-shape):the Hp LCD TV backlight reflective sheeting has superstrong light reflection,with thickness of 0.25mm-0.55mm.
E. Placed cushions:the soft polyurethane foam rubber, sealing, good elastic memory, high temperature resistant, fire retardant, effectively fixed lamp body internal optical components.
F. Rear cover:0.8mm iron back cover, dumb white,fine Elizabeth Barbara ohm two kind of spraying process,spray evenly overall sense.
G. Driver:low-voltage constant-current intelligent IC driver is used, which is of integated desing and make of the imported PC maderial,with dust prevention, compression resistance and high temperature resistance.Ambient temperature for working:-20°C-85°C
Led light panel detail description
--Surface mounted design No light leakage
Light transmittance>85%,Modern and simple
--High quality die casting aluminum
Firm and Safe
--Imported super bright led chips
Epiled, Samsung>75LM/W
--High quality light guide plate more uniform
Third generation PMMA, higher light transmittance
Thickened masking paper, no light leakage
--Die casting aluminum perfect heat dissipation
For 50,000hrs lifespan
--Meanwell driver constant isolated current
Safer and more stable
LED surface panel light installation instruction
A:will be installed at the end of bottom counter clockwise turn down from lamps and lanterns,installed on the ceiling
Note:install screws bottom pieces
B:install lamps and lanterns of bottom into the bottom, and clockwise turn lamps can be fixed.
C:complete the installation
Application
1. Hotels
2. Conference/Meeting rooms
3. Factories& Offices
4. Commercial Building
5. Residential /institution buildings
6. Schools, Colleges& Universities
7. Hospitals
Household,exhibition hall, hotel, shops, jewelry store, museums, stores and recreational space, etc
