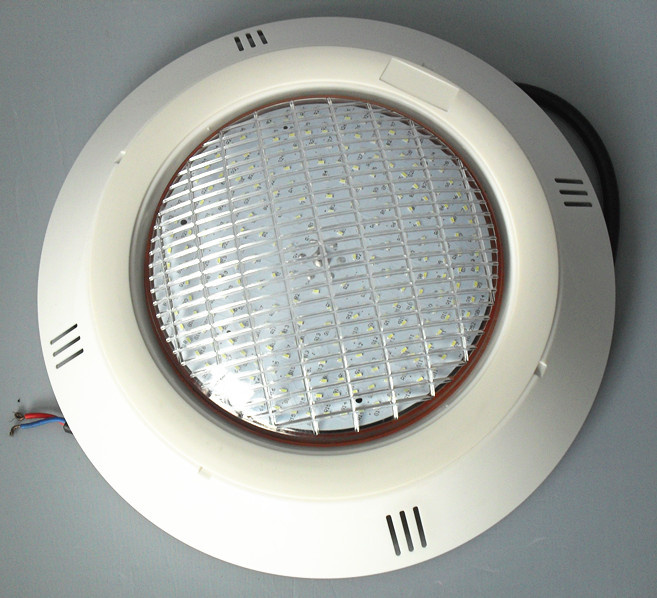

Descripton
1. Item No.: HSWH290144P2835
2. Dimension(mm): 280*76mm
3. Material: PC
4. Color: Warm White
5. Voltage(V): AC/DC 12
6. LED Qty(PCS): 144PCS(SMD2835)
7. Power(w): 24watt
8. Net Weight (kg): 1.3KG
9. Packing: 1PCS per brown box, polyfoam inner, 10PCS in a exported carton
Advantage:
1), High Luminous: Single color: 1800lm, RGB: 626lm
2), Lower heat release
3), Long lifespan: More than 50000hours
RGB Control Method:
1, Auto changing, built inside
2, RF remote control
3, Switch Power On/Off
4, RF remote + Switch power On/Off
5, External RGB controller
6, DMX512
Applications:
It is used in swimming pools, fountains, scenic ponds' illumination and decoration.
Installation procedure
1. Wall Mounted LED Pool Light Screw the bracket into the wall
2. Mount the clip of the bracket into the hole of the Wall Mounted LED Pool Light.
3. Screw the detailed illustrations in the below pictures
Cautions
1. Work with AC12V, otherwise the light will be possibly damaged
2. Wall Mounted LED Pool Light should be installed not deeper than 50cm underwater
3. The power wire of Wall Mounted LED Pool Light shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion.
4. Wall Mounted LED Pool Light should be in the water for the test of remote function or other functions, and don't test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test
