We are professional Par56 COB pool lamp, par56 swimming pool light,RGB LED swimming pool ,underwater par56 lamps in China.
This is for one new 5730 SMD LED swimming pool lamp , very good mixed color effect; Which can replace traditional incandescent underwater lamps,
LED swimming pool light,Par56 COB pool lamp .

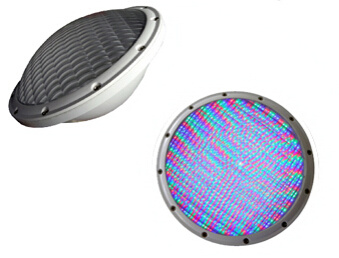

5730 SMD PAR56 Led Pool Light Overview: The 5730 Led Pool Light for underwater and on ground is a new patent technology. The IP rate is IPX8
LED Quantity: 105PCS * SMD5050 LED Chip
Body Material: Plastic + Transparent PC cover
Size: 177mm(diameter) x 105mm(height)
IP rating:: IPX8
Color: Single- White,Red, Green, Blue, Yellow
RGB(14 kinds of color changing programs)
RGB control method: Remote control(Absolutely Synchronized)
C/T: w.w.-3000~3500k, p.w.-6000~7000k, c.w.-8000~12000k
R: 621-625nm/ G: 518-520nm/ B:464-467nm
Voltage (V): 12V AC/DC Frequency: 50~60Hz
Wattage (W): 18±1W(W/G/B/RGB)/ 13±1W(Red)
Luminous Flux (Lm): White1100±10%Lm/ Red 350±10%Lm
Green 750±10%Lm/ Blue 180±10%Lm/ RGB 430±10%Lm
Beam angle: 120°
Base: Screw terminal/ G53
Packing: 20 pcs in 64.5x40.5x40.5cm carton N.G: 18 kg
Technical Parameters:
Item No. | LF-PAR56-50A18W |
Led Type | RGB SMD5050 |
Led Quantity | 105pcs |
Color | RGB(14 patterns) |
Lighting Angle | 120° |
Lumem Output | RGB only |
Input Voltage | 12V AC 50~60Hz |
Power Consumption | 16±1W |
Equivalent Halogen | just for decoration |
Driver Function | constant current | over heating / over loading / short circuit protection |
Base | screw terminal | G53 | E27/E26 | GX16D |
Ambient Temperature | -20 ~ 45ºC |
IP Rating | IP68 |
Suggested Install Depth | <1.50 meters |
Max. Install Depth | 3.0 meters |
