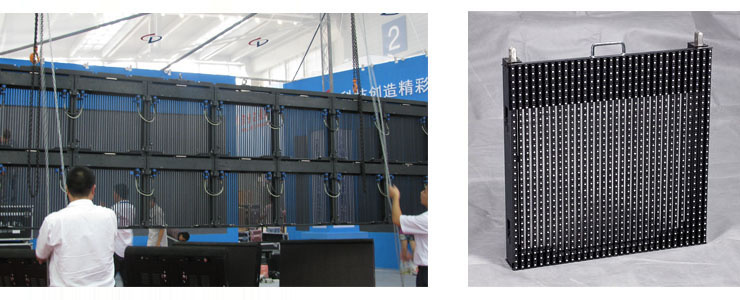

Mainly used for the stage background, concert, such as rental occasions, with the light weight screen cabient, quick assembly, pretty appearance, large view angle, both used indoor and outdoor occasions ect features.
Orient LED Curtain Display advantage:
1. Whole sealed water-proof constructure, the water-proof level reaches IP65. Could adapt the indoor and outdoor different temperature and humidity.
2. Light weight: Only 10kg of single cabinet.
3. Ventilation: 40° C Lower than peers 10° C or 20º C.
4. Good Permeability: 60%, weatherproof.
5. Convenient for installation/uninstallation. It can be hang-up or fixed to the steel frame.
|
pixel pitch |
18mm |
|
size of module |
576*576mm |
|
resolution of module |
32*32mm |
|
pixel density |
3086dots/m² |
|
pixel composition |
1R1G1B |
|
LED Specification |
SMD5050 |
|
operating voltage |
DC5V |
|
brightness |
≥ 3500cd/m² |
|
viewing angle |
H: 160° V: 120° |
|
best viewing distance |
16m |
|
Driving Method |
CCdrive |
|
Average power consumption |
≤ 200W/m² |
|
Maximum power consumption |
≤ 580W/m² |
|
veilmateriall |
polymer |
|
dirving method |
static constant |
|
frame frequency |
≥ 60Hz/s |
