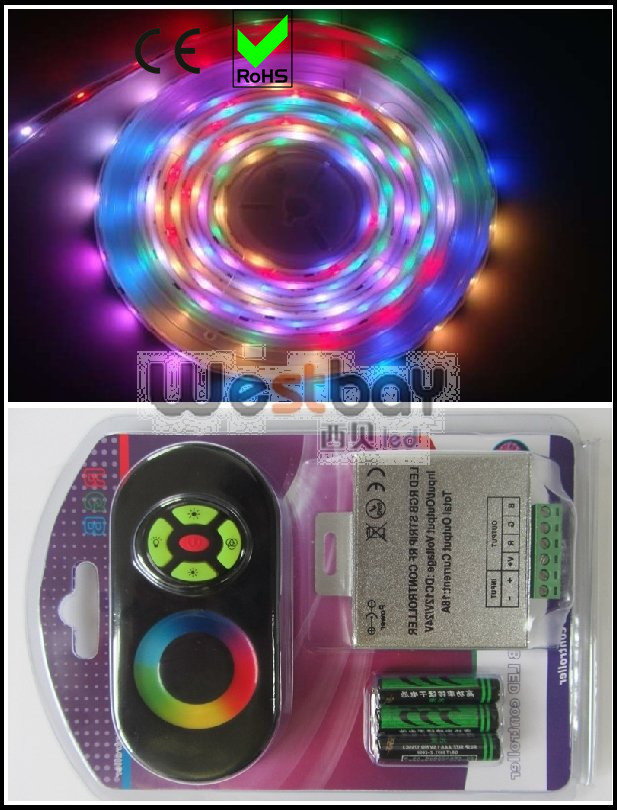

5050 smd RGB Waterproof LED Strip Light, outetdoor led lights, home decoration 5050 flexible led rgb strips.
Details:
1. Controller basic parameters
Supply voltage: DC12-24V
Output: 3 channels
Connection mode: Common anode
Static power consumption: <0.5W
Rated Output current: <5A(each channel)
Max Output current: 6A(each channel)
Net weight: 136g
Gross weight: 165g
Working temperature: -20-60degree
External dimension: L83 X W65 H26 mm
Packing size: L 140 X W80 X H55 mm
Technical parameters (remote control)
1: Power supply: AAA battery 3PCS
2. Cover material: ABS
3. Fabrication processing: Multi-colour printing & UV varnish
Direction for Use
1. You could turn on /off controller at any time;
2. The color change button, there are 14 modes of change for you to choose;
3. Touch color ring and white light choose mode
4. The step of the brightness or speed change add 1 by each pressing, a total of 8 steps.
5. The step of the brightness or speed change subtract 1 by each pressing.
6. Touch color ring
ALLTHE DETAILS USER MANULE IS PRINTED ON THE PACKING.
2. LED FLEXIBLE STRIP
DC12V input, non-waterproof, 30PCS SMD5050 LED per meter.
Can be connected to 20meters at least.
5Meters per roll, anti-resistant packing
Theory of Color and RGB Lighting:
When the three primary colors (red, green and blue) of light are mixed, the intensities of the colored light is being added. The mixing of colored light is called additive color mixing and in a nutshell, this is the purpose of the RGB LED Controller. It mixes the three colors to create other colors by dimming. White light is perceived where all three additive primaries overlap. Since the white mixture results from the adding of three color light sources, the white light appears to be the brightest of all. By varying the intensities of the individual light sources, a full range of colors can be obtained.
