Features:
1. The cabinet thickness is 75mm, the cabinet weight is 9.5kgds/tile.
2. Different color options of back cover according to clients requirements.
3.16 bit driver IC with rich and delicate colors, refresh rate at 3000Hz.
4. Rotatable hanging lock and manual safety button avoid panels dropping off.
5. Special design of back cover make sure different ways of maintenance.
6. Adopt Die-casting aluminum housing, ensure the flatness of the screen and seamless amoung panels.
7. Neutrik connectors are adopted, fast assembly, durable.
8. Adopt the DC cooling fans, less noise for indoor use.
9. Support hanging and stacking installation, suitable for both fixed and rental applications.

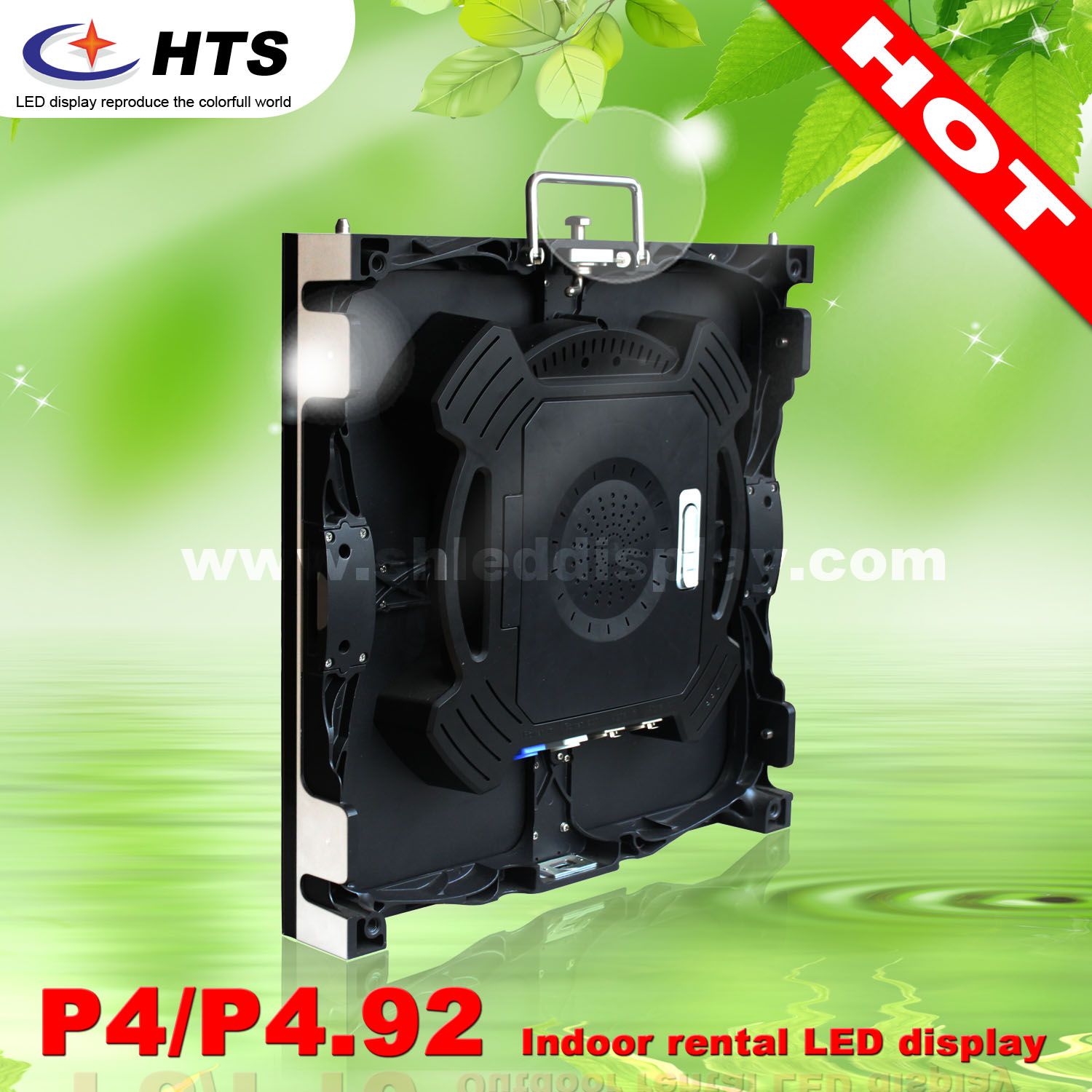

Photos:
LED System Diagram:
|
NO. |
Item |
Parameter |
|
1 |
Model |
HTS-P4 |
HTS-P4.92 |
|
2 |
Pixel pitch |
4mm |
4.92mm |
|
3 |
Pixel configuration |
1R1G1B |
1R1G1B |
|
4 |
LED type |
SMD2020 Black-face |
SMD3528 Black-face |
|
5 |
Module size |
256*256mm |
256*256mm |
|
6 |
Module resolution |
64*64 |
52*52 |
|
7 |
Cabinet resolution |
128*128 |
104*104 |
|
8 |
Density |
62500 dots/m2 |
41260dots/m2 |
|
9 |
Scan method |
1/16 |
1/13 |
|
10 |
Brightness |
≥1400 NIT |
≥1600 NIT |
|
11 |
Best view distance |
≥4m |
≥5m |
|
12 |
Cabinet size |
512*512mm |
|
13 |
depth |
75mm |
|
14 |
Max. power consumption |
300W |
|
15 |
Ave. power consumption |
180W |
|
16 |
Cabinet material |
Die-casting aluminum |
|
17 |
Weight/tile |
9.25 KG |
|
18 |
Gray level |
65536 level |
|
19 |
Colors |
281 billion |
|
20 |
Refresh rate |
≥960Hz |
|
21 |
View angle |
140 degree for vertical and horizontal |
|
22 |
Out of control pixel rate |
<1/10000 |
|
23 |
MTBF |
>5000 hours |
|
24 |
Lifespan |
100000 hours |
|
25 |
Signal input source |
Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
|
26 |
Working voltage |
AC 100/200v 50-60Hz |
|
27 |
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
|
28 |
Operation environment |
Temperature: -20 to +40, Humidity: 10%-80% |
|
29 |
Protection level |
Indoor |
