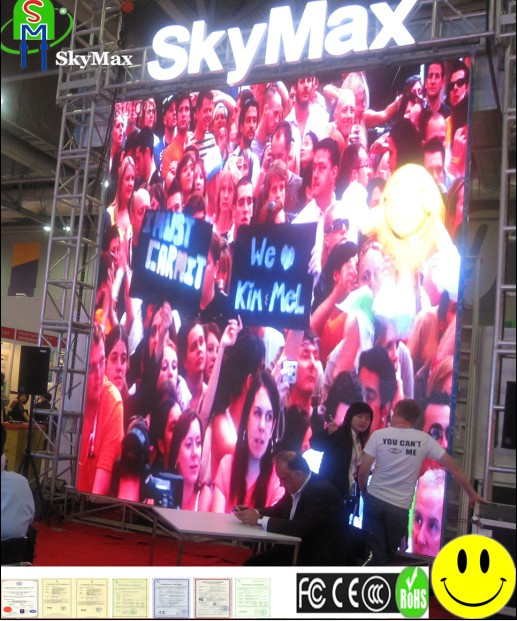

Skymax Full Color LED Indoor Display
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB,CIF,others |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,D/P |
Full Color Indoor LED display, adopts the unique SMD technology, it has the same working principles with computer monitors, it can show various colors constitued by tri-colors: Red, green, and blue. Can play colorful static and animate images. Each pixelcontains red green, and blue LED. Points of LED screen are corresponding with points of computers, can display TV programmms, VCD, DVD, it is widely used airports, railway station, ports, hotels, shoopping mall, stadium for information display, advertising, and TV video display.
|
number |
Item name |
Parameter and index |
|
unit module |
|
1 |
LED encapsulation mode |
3-in-1 SMD3528 |
|
2 |
Horizontal axis |
160° |
|
3 |
Vertical axis |
160° |
|
4 |
Pixel composition |
1R1G1B |
|
5 |
Pixel pitch |
10mm |
|
6 |
Scan method |
1/4 |
|
7 |
Drive method |
Constant current |
|
8 |
Module resolution |
16× 16 pixels |
|
9 |
Module dimensions |
160mm× 160mm |
|
10 |
Module type |
incorporated lamp and drive |
|
11 |
Module working voltage |
+5V |
|
12 |
Module average power |
6W |
|
13 |
Module maximum power |
24W |
|
14 |
Module shell material |
PC |
|
15 |
Module mask material |
PC |
|
unit cabinet |
|
1 |
Module layout |
4× 4 pieces |
|
2 |
Cabinet resolution |
64× 64 pixels |
|
3 |
Cabinet maximum power |
480W |
|
4 |
Cabinet average power |
120W |
|
5 |
Cabinet dimension |
640mm× 640mm |
|
6 |
Cabinet material |
steel/aluminum alloy |
|
7 |
Cabinet color |
black/gray |
|
8 |
Protection grade (front/back) |
IP65/IP54 |
|
Entire screen |
|
1 |
Application environment |
indoor |
|
2 |
Brightness |
> 1500 cd/m² |
|
3 |
White balance coordinates |
X=0.29, Y=0.31 |
|
4 |
contrast |
64000: 1 |
|
5 |
Color temperature |
8000K |
|
6 |
Pixel density(pixels/m² ) |
10000 |
|
7 |
Average power consumption |
217(W/m² ) |
|
8 |
Maximum power consumption |
866(W/m² ) |
|
9 |
Power source |
AC220V/50HZ or AC110V/60HZ |
|
10 |
Operating temperature |
-10 º C~ +45º C |
|
11 |
Operating humidity |
10% --- 90% |
|
12 |
Storage humidity |
-30º C--- +50º C |
|
13 |
Refresh frame rate |
60Hz |
|
14 |
Refresh rate |
480Hz |
|
15 |
Viewing distance |
10-100m |
|
16 |
grayscale/color |
16.7M |
|
17 |
Brightness adjustment |
100 manual levels /100 auto levels |
|
18 |
Control method |
synchronous with the computer display |
|
19 |
Data transfer range |
Network cable: 100m |
|
20 |
Computer operating system |
WINDOWS (98, 2000, XP, Vista, 7) |
|
21 |
Video signal |
VGA, DVI, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION and so on. |
|
22 |
|
|
|
23 |
Longevity |
≥ 100000 hours |
|
24 |
Certification |
UL/CE/CCC |
| Prod Model: |
SM-P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificates: |
CE/FCC/CCC/UL/RoHS/ISO9001: 2008 |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
10mm |
| Scanning Mode: |
1/2 Scan |
| Pixel Density: |
27,777 dots / m² |
| Display Function: |
Video Display |
| Tube Chip Color: |
Full Color |
| Certification: |
CE |
| Application: |
Advertising |
| System Operating Platform: |
Windows(98, 2000, XP, Vista, 7) |
SkyMax Display Technologies Co., Ltd is a world class advanced enterprise specialized in designing, researching and manufacturing LED lamps, LED Display and LED lighting. We are service enterprise in LED display field and focusing on offering LED projects solution. The company founded in 2006 and located in Zhongshan city which is famous as 'The China lighting city'.
SkyMax has 30, 000 square meters of air conditioned workshop area including dustless rooms, anti-static workshop, LED module aging room, LED display aging room. The factory is also equipped with all new and most advanced world first-class machines for LED automatic production line: American ASM auto-die bonder, ASM auto-wire bonder, Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, automatic LED braider, America Global automatic LED inserting machine, Japan JUKI automatic SMD machine, N2 lead-free relow soldering system, N2 lead-free dual wave soldering system. The company also has the machines testing system, including: Automatic PCB painting machine, automatic lamps adjusting machine, automatic rubber filling machine, automatic molding machine as well as high and low temperature testing machines, constant temperature and humidity machine, salt-spraying machine, shaking machine, waterproof testing machine. We have a group of professional, stable, pragmatic and innovative high-quality research and development team, which forms LED devices production to terminal manufacturing complete LED chain. SkyMax chooses high point, high standards, strict demand, in strict accordance with ISO9001: 2008 quality Guarantee system operation, and meticulous management into all aspects of production to ensure the quality of our products at the industry-leading position.
The company adopts advanced technology and management, producing a wide range of light-emitting diode, designing and manufacturing various electronic LED display, LED lighting to suit indoor and outdoor applications such as various stadiums, airports, wharf, stations, commercial system, exhibition centers, advertising etc. The products have been sold to America, Europe, South America, East Europe, Middle East, HongKong, Macao, the quality and customer service has won the recognition and acclaim. We are willing to work together with you to create a global production base for high-quality LED.
The company complies with the time development, promotes the scientific innovation and the time positively connects rails, the company quality system has updated into ISO9001: 2008, all products have got the certification of CE, FCC, RoHS ect.
To be the popular brand in LED business line is the final target of SkyMax. SkyMax means 'Mountain mind, Contains infinite; Green trees, Indomitable', SkyMax staff take 'honest, contains, thanks giving, responsibility' as the core values. Take 'creating professional, reliable products' as the duty. Offer the best products, best after-sale service. All SkyMax staff work together and let SkyMax products be popular in the world.
