Shopping Mall Outdoor Wall LED Advertising Display
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB,CIF,others |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,D/P |
Shopping mall LED advertising display
Wall mounted installation. Provde front service and back service.

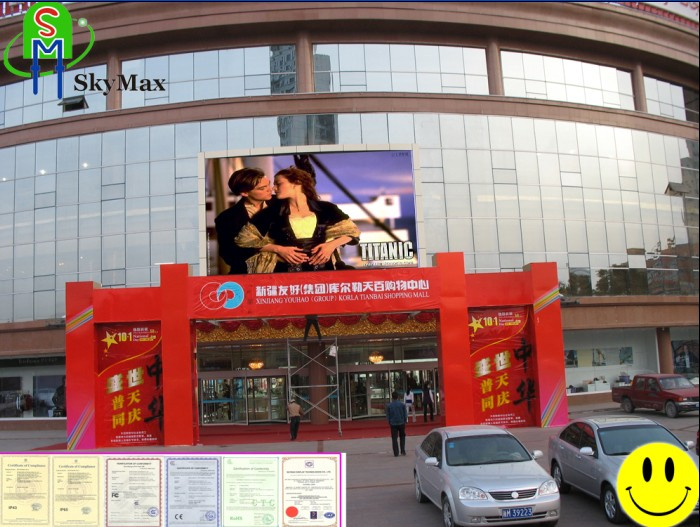

Our one of the projects for Shopping mall: (see the picture)
P16 virtual full color outdoor LED advertising display (10.88meter x 6.144meter)
This LED display is for shopping mall in Xinjiang province, China.
Product description:
P16 outdoor virtual full color LED display is specially designed for the outdoor HD shows; LED lamp adopts standard φ 5 oval DIP technology with high brightness and good heat dissipation. Every pixel is composed by tow red, one green and one blue, which constitutes the virtual display effect; And the virtual resolution, is 4 times than that of the normal display. The colors of the display can be reached 1.07 billion kinds, and can display colorful dynamic and static images in real time, it has perfect display effect. The display supports the usual VGA and DVI traditional video signal, it also specially supports HDMI video signal, and so on, in addition, it can receive and show video programs, such as TV programs\VCD or DVD\live programs, and so on.
P16 outdoor virtual full-color LED display adopts full automatic production, The product has high reliability, saturated and uniform color, high brightness, low consumption, long service life, is widely used in outdoor sites, such as square, outdoor concerts, theme park, shopping mall, golf courses, and so on.
|
number |
Item name |
Parameter and index |
|
unit module |
|
1 |
LED encapsulation mode |
φ 5oval DIP |
|
2 |
Horizontal axis |
120° |
|
3 |
Vertical axis |
60° |
|
4 |
Pixel composition |
2R1G1B |
|
5 |
Pixel pitch |
16mm |
|
6 |
Virtual pixel pitch |
8mm |
|
7 |
Scan method |
1/2 |
|
8 |
Drive method |
Constant current |
|
9 |
Module resolution |
16× 8pixels |
|
10 |
Module virtual resolution |
32× 16 pixels |
|
11 |
Module dimensions |
256mm× 128mm |
|
12 |
Module type |
incorporated lamp and drive |
|
13 |
Module working voltage |
+5V |
|
14 |
Module average power |
9W |
|
15 |
Module maximum power |
36W |
|
16 |
Module shell material |
PC |
|
17 |
Module mask material |
PC |
|
unit cabinet |
|
1 |
Module layout |
4× 6 pieces |
|
2 |
Cabinet resolution |
64× 48 pixels |
|
3 |
Cabinet virtual resolution |
128× 96 pixels |
|
4 |
Cabinet maximum power |
1080W |
|
5 |
Cabinet average power |
270W |
|
6 |
Cabinet dimension |
1024mm× 768mm |
|
7 |
Cabinet material |
steel/aluminum alloy |
|
8 |
Cabinet color |
black/gray |
|
9 |
Protection grade (front/back) |
IP65/IP54 |
|
Entire screen |
|
1 |
Application environment |
outdoor |
|
2 |
Brightness |
> 10000 cd/m² |
|
3 |
White balance coordinates |
X=0.29, Y=0.31 |
|
4 |
contrast |
64000: 1 |
|
5 |
Color temperature |
8000K |
|
6 |
Pixel density(pixels/m2) |
3960 |
|
7 |
Average consumption(W/ m2) |
343 |
|
8 |
Maximum consumption(W/ m2) |
1373 |
|
9 |
Power source |
AC220V/50HZ or AC110V/60HZ |
|
10 |
Operating temperature |
-20º C -- +50 º C |
|
11 |
Operating humidity |
10 ---90 |
|
12 |
Storage humidity |
-30 --- +50 |
|
13 |
Refresh frame rate |
60Hz |
|
14 |
Refresh rate |
480Hz |
|
15 |
Viewing distance |
15-300m |
|
16 |
grayscale/color |
16.7M |
|
17 |
Brightness adjustment |
100 manual levels /100 auto levels |
|
18 |
Control method |
synchronous with the computer display |
|
19 |
Data transfer range |
Network cable: 100m |
|
20 |
Computer operating system |
WINDOWS(98, 2000, XP, Vista, 7) |
|
21 |
Video signal |
VGA, DVI, RF S-Video, RGB, RGBHV, YUV, YC, COMPOSITION and so on. |
|
22 |
MTBF |
≥ 10000 hours |
|
23 |
Longevity |
≥ 100000 hours |
|
24 |
Certification |
UL/CE/CCC |
| Prod Model: |
SM-P16mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificates: |
FCC/RoHS/CCC/UL/ CE/ ISO9001: 2008 |
| Pixel Configuration: |
2R, 1G, 1B |
| Pixel Pitch: |
16mm |
| Pixel Density: |
10000 dot / m² |
| IP Rating: |
IP65 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/2 Scan |
| Average Power Consumption: |
600W / m² |
| Certification: |
CE |
