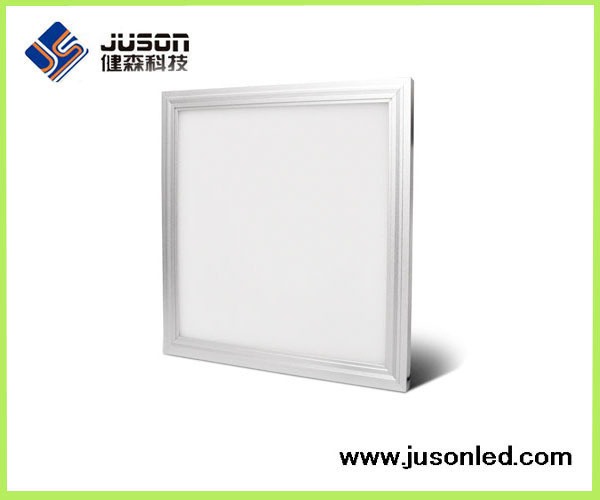

Shenzhen LED Panel Light 18W 300X300 Epistar CE RoHS

Name: Shenzhen LED Panel Light 18W 300X300 Epistar CE RoHS
Brand: yourledlight.com
SKU: 753779305
Availability: InStock
Rating: 4.5 (128 reviews)

Price:	US $ 17.05/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Shenzhen Juson Technology Co., Ltd.

Showroom Product Company Profile

Cree led panel light, office ceiling light, office led light, square led panel, led panel lights, led panel, led panel light, led panel lighting, panel light, led ceiling light

Product Description
Product: LED Lighting Panel (for Ceiling Light or Wall-Mounted Lighting)
Item No.: JS-PL600x600-W / JS-PL300x300-W /JS-LP300*1200-W/JS-PL300*600

Advantages:
1) Unique Lamp apperance design
2) Energy-saving and environment-friendly
3) Leading heat sink design, excelent heat eliminating
4) No UV or IR radiation
5) No flashing
6) Robust and long lasting
7) High performance LED, up to 230 lumens for white.
8) Lumen maintance > 99%/1000hours
9) Low surface temperature, less than 60° .
10) Replacement for incandescent lamps.
11)Great for under-cabinet and other low voltage applications

Applications:
The Gleamia LED Light Panel is ideal replacement for the traditional downlights.
It has wide range of applications such as:
1. Jewelry counter lighting
2. Commercial lighting
3. Restaurant, hotel
4. Artwork lighting
5. Display case
6. Amusement park
7. Home and office lighting

Item No.	Specifications
JS-PL300x300	1. Wattage: 15W/18W	9. Power Factor: > 0.95
	2. Size: 295x295x12mm	10. Life Span: 50, 000hours
	3. LED: 96pcs (Epistar HB SMD)	11. CCT: WW; NW; CW
	4. Input Voltage: 85-265VAC	12. Operatig temp.: -20-+60
	5. Working Voltage: 24VDC	13. Storage temp.: -40-+85
	6. Luminous flux: 1800± 10% lm	14. Net Weight: 2KG/pcs
	7. Material: Aliminium + PMMA	15. Gross Weight: 2.3KG/pcs
	8. Colour rendering index: 75	16. Package: 380x330x55mm

JS-PL300x600	1. Wattage: 18W/36W	9. Power Factor: > 0.95
	2. Size: 295x595x12mm	10. Life Span: 50, 000hours
	3. LED: 96pcs (Epistar HB SMD)	11. CCT: WW; NW; CW
	4. Input Voltage: 85-265VAC	12. Operatig temp.: -20-+60
	5. Working Voltage: 24VDC	13. Storage temp.: -40-+85
	6. Luminous flux: 1800± 10% lm	14. Net Weight: 2.7KG/pcs
	7. Material: Aliminium + PMMA	15. Gross Weight: 3KG/pcs
	8. Colour rendering index: 75	16. Package: 690x330x55mm

JS-PL600x600	1. Wattage: 36W/80W	9. Power Factor: > 0.95
	2. Size: 595x595x12mm	10. Life Span: 50, 000hours
	3. LED: 192pcs (Epistar HB SMD)	11. CCT: WW; NW; CW
	4. Input Voltage: 85-265VAC	12. Operatig temp.: -20-+60
	5. Working Voltage: 24VDC	13. Storage temp.: -40-+85
	6. Luminous flux: 3600± 10% lm	14. Net Weight: 5KG/pcs
	7. Material: Aliminium + PMMA	15. Gross Weight: 6KG/pcs
	8. Colour rendering index: 75	16. Package: 690x640x55mm

JS-PL300x1200	1. Wattage: 36W/80W	9. Power Factor: > 0.95
	2. Size: 1195x295x12mm	10. Life Span: 50, 000hours
	3. LED: 192pcs (Epistar HB SMD)	11. CCT: WW; NW; CW
	4. Input Voltage: 85-265VAC	12. Operatig temp.: -20-+60
	5. Working Voltage: 24VDC	13. Storage temp.: -40-+85
	6. Luminous flux: 3600± 10% lm	14. Net Weight: 5KG/pcs
	7. Material: Aliminium + PMMA	15. Gross Weight: 6KG/pcs
	8. Colour rendering index: 75	16. Package: 1290x640x55mm

Item No.	Specifications
JS-PL300x300	1. Wattage: 15W/18W	9. Power Factor: > 0.95
	2. Size: 295x295x12mm	10. Life Span: 50, 000hours
	3. LED: 96pcs (Epistar HB SMD)	11. CCT: WW; NW; CW
	4. Input Voltage: 85-265VAC	12. Operatig temp.: -20-+60
	5. Working Voltage: 24VDC	13. Storage temp.: -40-+85
	6. Luminous flux: 1800± 10% lm	14. Net Weight: 2KG/pcs
	7. Material: Aliminium + PMMA	15. Gross Weight: 2.3KG/pcs
	8. Colour rendering index: 75	16. Package: 380x330x55mm

JS-PL300x600	1. Wattage: 18W/36W	9. Power Factor: > 0.95
	2. Size: 295x595x12mm	10. Life Span: 50, 000hours
	3. LED: 96pcs (Epistar HB SMD)	11. CCT: WW; NW; CW
	4. Input Voltage: 85-265VAC	12. Operatig temp.: -20-+60
	5. Working Voltage: 24VDC	13. Storage temp.: -40-+85
	6. Luminous flux: 1800± 10% lm	14. Net Weight: 2.7KG/pcs
	7. Material: Aliminium + PMMA	15. Gross Weight: 3KG/pcs
	8. Colour rendering index: 75	16. Package: 690x330x55mm

JS-PL600x600	1. Wattage: 36W/80W	9. Power Factor: > 0.95
	2. Size: 595x595x12mm	10. Life Span: 50, 000hours
	3. LED: 192pcs (Epistar HB SMD)	11. CCT: WW; NW; CW
	4. Input Voltage: 85-265VAC	12. Operatig temp.: -20-+60
	5. Working Voltage: 24VDC	13. Storage temp.: -40-+85
	6. Luminous flux: 3600± 10% lm	14. Net Weight: 5KG/pcs
	7. Material: Aliminium + PMMA	15. Gross Weight: 6KG/pcs
	8. Colour rendering index: 75	16. Package: 690x640x55mm

JS-PL300x1200	1. Wattage: 36W/80W	9. Power Factor: > 0.95
	2. Size: 1195x295x12mm	10. Life Span: 50, 000hours
	3. LED: 192pcs (Epistar HB SMD)	11. CCT: WW; NW; CW
	4. Input Voltage: 85-265VAC	12. Operatig temp.: -20-+60
	5. Working Voltage: 24VDC	13. Storage temp.: -40-+85
	6. Luminous flux: 3600± 10% lm	14. Net Weight: 5KG/pcs
	7. Material: Aliminium + PMMA	15. Gross Weight: 6KG/pcs
	8. Colour rendering index: 75	16. Package: 1290x640x55mm

Prod Model:	JS-PL300x300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	15W/18W
Size:	300*300mm
CRI:	75ra
Color:	Warm White,Nature White,Cool White
Luminous Flux:	1800lm
Working Voltage:	DC24V
Power Factor:	>0.95
LED Quantity:	96PCS
Light Source:	LED
Appearance:	Square
Type:	Ceiling
Emitting Color:	White
Certification:	RoHS
Housing Material:	Acrylic
Base Material:	Metal
Voltage:	220V
Dimmable:	Without Dimmable
Beam Angle:	120

Shenzhen Jiansen technology limited company was established in 2010, located in Mabian industrial Park, 72 area, Baoan District, Shenzhen, we moved to Yushan industry Area in 2014, Juson is the leading LED manufacturer with high and new technology, combined development, production, sales and service in-all.

We insist on thinking, creative, breakthrough & superior culture, aim to meet the brand concept of ecomagination, global sharing; With independent research and development of light source encapsulation technology and application technology, we own strong R&D and production team, imported the advanced production equipment and technique in the world.

We adhering to "specified product, reliable quality, stable supply, considerate service" company policy, gained trust and support from old & new customer from all the world many years, our product is very popular in Europe, the United States, Canada, the Middle East and other parts of the world. We believe that we will grow into international photoelectric enterprise through continuous technology innovation and service improvement.

Juson By now divide into 4 part.

1. LED chip dept.

2. LED chip packaging dept.

3. LED power supply dept.

4. LED lighting dept.

We sell our own products, our LEDs already reached the international standards. (Eg: New technology, 0.2W LEDs reach 60-70 luminous)

We start to produce the finished products in 2013, and we produce depends on our own technology, we provide LEDs, LED driver(LED power supply) for our finished products.

We enter the international market in 2013, our main products include the unique design LED aquarium light and LED grow light(smart products), and we have some new products launched in 2015, the LED bulb, LED strip light, LED downlight, and LED track light are in hot sell.

A strong engineering team could provide different LED light for customers requriemnts.

We are OEM(original equipment manufacturer) ODM(original design manufacturer)

We look forward to cooperate with you.
