Features:
1. High lumen efficiency, can save energy 60% compared to traditional down light;
2. Good color rendering index, stable correlative color temperature, make high quality lighting effect;
3. Special heat dissipation design, with polymer heat conduction plastics composited with aluminum, make the body lighter and more beautiful;
4. No UV, IR, No mercury, lead toxic or other hazardous substances, environmental friendly;
5. Adopt PC milk white cover, make the lighting comfortable;
6. Low maintenance cost, easily install and adjustment.
Packaging & Delivery
Packaging: 1. One box for each light, certain amount in a carton.
2. According to customer's requirement.
Delivery: 5-7days after payment, according to the quantity.
Advantages of LED Lights
1. Lifespan: Up to 50, 000 hrs, 10 times longer than the conventional ones.
2. An integrated optoelectronics technology with energy saving up to 70%.
3. Perform stably under various conditions and almost maintenance free.
4. Easy installation with thinner power cables to save set- up cost.
5. Great light homogeneity, etc.
Application:
1) Accent lighting
2) Architectural
3) Back lighting
4) Cabinet and under counter lighting
5) Ceiling /Wall Coves
6) Display Cases
7) Exhibition stands and panels
8) Light boxes
9) Recess lighting
10) Shelf Lighting
CE, ROHS. PSE. SAA. C-TICK CERTISFICATION...

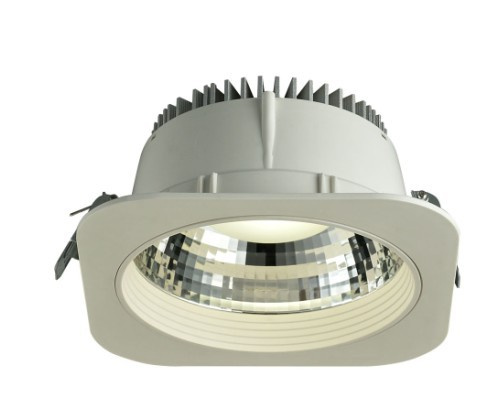

Item No. |
DR-5010-06R |
Brand |
Xunlin |
Item Type |
led down light |
Light Source |
LED |
LED Light Source |
LG5630 |
Color |
WW/PW/NW |
Lamp Body Material |
Aluminum alloy boday +lens |
Surface Cover Material |
PC, Higher transmittance |
Lamp Power(W) |
12W |
Input Voltage(V) |
AC85V-265V 50/60Hz |
Output Voltage(V) |
3-5W 9-12V 350mA, 7-10W 15-26V 350mA, 12-15W 26-38V 350mA, 18-25W 26-38V 600mA. |
CRI (Ra> ) |
80 |
Working Temperature(° C) |
Ta=-30° C… +45° CTc=75° C |
Beam Angle(° ) |
120° |
Dimension(mm) |
168*80 |
Cut-out(mm) |
155mm |
Installation |
Recessed ceiling install |
Color Temperature(CCT) |
3000K 4000K 6000K |
Average Life Span(Hour) |
50 000 hours |
Warranty(Years) |
2 |
IP Rating |
IP33 |
Certification |
CCC, CE, RoHs, SGS |
Selling Point |
1. anti-glare; 2. high quality reflector; 3 high factor |
Shenzhen Xuanlin Electronics Co., Ltd. is a Chinese professional LED light factory in researching, manufacturing and marketing Hi-Power LED modules and Hi-Power LED lights.
We have acquired ISO9001: 14001 Certificate. Moreover, we promote 3~4 kinds of new products per month.
We sincerely look forward to establishing the long cooperation relation with customers all around the world.
